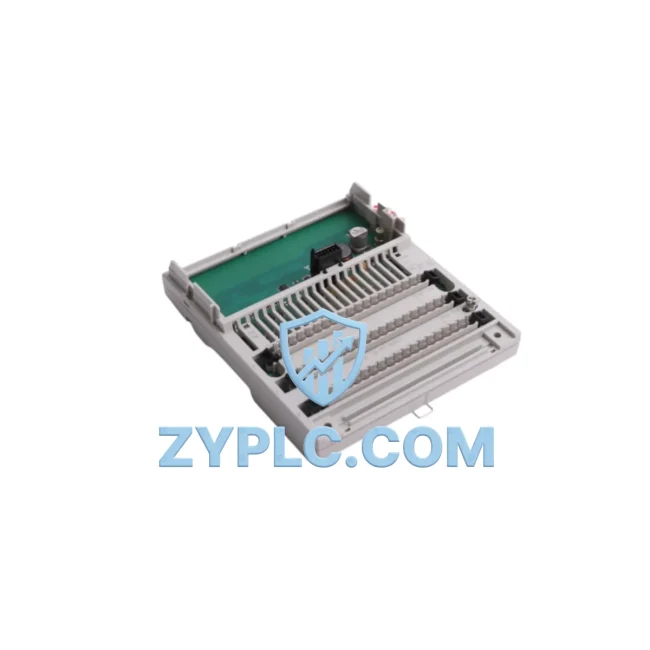

Schneider Electric 170ADI35000 Industrial Network Interface for Momentum Systems

Schneider Electric 170ADI35000: Industrial Data Link for Momentum Automation Systems

The Schneider Electric 170ADI35000 is a high-performance analog input module engineered for the Modicon Momentum distributed I/O platform. Designed to serve as a critical node in industrial data communication architectures, this module bridges the gap between field-level sensing devices and upper-level control, SCADA, and HMI systems. With native Modbus RTU and Modbus TCP/IP protocol support, the 170ADI35000 enables seamless, real-time data acquisition from analog field instruments — including pressure transmitters, temperature sensors, flow meters, and current loop devices — and delivers structured process data directly into the automation network.

In modern smart factory environments, the integrity of the data link between field devices and control systems is paramount. The 170ADI35000 addresses this need by providing 16 channels of high-resolution analog input (4–20 mA / 0–10 V), ensuring that every signal from the production floor is accurately captured, digitized, and transmitted across the Modbus network with minimal latency. This capability makes it an indispensable component in applications ranging from process control and energy monitoring to predictive maintenance and remote diagnostics.

Network Communication Table

Connected Automation Data Flow

The 170ADI35000 sits at the heart of a distributed sensing and control architecture. In a typical smart factory deployment, field-level sensors — such as Schneider Electric XMLA pressure transmitters or Pt100 RTD temperature probes — feed analog signals directly into the 170ADI35000’s input channels. The module digitizes these signals and places the process values onto the Modbus I/O bus, where the Modicon Momentum CPU adapter — such as the 171CCC96030 or 171CCC98030 — reads and processes the data in real time.

From the Momentum CPU, process data is forwarded upstream via the 170ENT11001 Ethernet communication adapter, which bridges the Modbus I/O bus to a standard Ethernet TCP/IP network. This allows the Modicon M340 or Modicon M580 PLC controllers — operating on Unity Pro or EcoStruxure Machine Expert — to access live analog data from the 170ADI35000 across the plant network. Simultaneously, SCADA platforms such as Schneider Electric EcoStruxure SCADA Expert (Vijeo Citect) or third-party systems like Wonderware InTouch and Ignition by Inductive Automation can subscribe to Modbus TCP/IP data tags, enabling real-time process visualization, trend logging, and alarm management.

For remote I/O expansion, the 170ADI35000 can be paired with digital output modules such as the 170ADO35000 or 170ADO54050 within the same Momentum I/O drop, creating a compact, mixed-signal remote I/O station. Variable frequency drives (VFDs) — including the Schneider Electric ATV320 or ATV630 series — can receive analog setpoint references derived from the 170ADI35000’s process data, closing the loop between sensor feedback and motor speed control. Edge gateway devices, such as the Schneider Electric EcoStruxure Machine Advisor or third-party IIoT gateways, can further aggregate this data for cloud-based analytics, OEE monitoring, and predictive maintenance dashboards.

In energy management applications, the 170ADI35000 interfaces with power quality meters and current transformers, feeding real-time energy consumption data into the SCADA layer. This data chain — from field sensor through Modbus I/O, Ethernet TCP/IP, PLC, SCADA, and up to MES/ERP systems — represents the full industrial data link that the 170ADI35000 enables, making it a foundational component in any Momentum-based automation architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, SCADA systems, and enterprise platforms operate in silos, unable to share process information efficiently. The 170ADI35000 directly addresses this challenge through its native Modbus protocol support, which is universally recognized across virtually all industrial control platforms.

In legacy installations where older PLCs or DCS systems use proprietary analog signal wiring, the 170ADI35000 provides a standardized Modbus interface that allows these signals to be integrated into modern Ethernet-based control networks without replacing existing field instrumentation. This protocol bridging capability eliminates the need for costly signal converters or custom communication gateways, reducing both capital expenditure and integration complexity.

For production line transparency, the 170ADI35000 enables continuous, real-time monitoring of critical process variables — temperature, pressure, flow, and level — across multiple production zones simultaneously. By centralizing this data in the SCADA layer, plant managers gain a unified view of production performance, enabling faster response to process deviations, reduced downtime, and improved product quality consistency.

Remote diagnostics is another key benefit. With the 170ADI35000 connected via Modbus TCP/IP through the Momentum Ethernet adapter, maintenance engineers can remotely access module status, channel diagnostics, and process values from any networked workstation or mobile device — without requiring physical access to the control panel. This capability is particularly valuable in hazardous or hard-to-reach installation environments.

System scalability is built into the Momentum platform architecture. Additional 170ADI35000 modules can be added to existing I/O drops, or new Momentum I/O stations can be deployed at remote field locations and connected to the main control network via Modbus TCP/IP — all without modifying the existing PLC program structure. This modular expandability ensures that the automation infrastructure can grow in step with production capacity.

Every 170ADI35000 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying channel accuracy, communication integrity, and backplane compatibility before dispatch. All units are covered by a 12-month warranty and are available from stock for immediate global shipment via DHL or FedEx Express.

Industrial Connectivity FAQ

Q1: What communication protocols does the 170ADI35000 support, and is it compatible with Modbus TCP/IP networks?
The 170ADI35000 communicates natively over the Modbus I/O bus within the Momentum backplane. When paired with a Momentum Ethernet communication adapter such as the 170ENT11001, the module’s data is accessible over Modbus TCP/IP, making it fully compatible with Ethernet-based SCADA, HMI, and PLC networks. This dual-protocol capability ensures seamless integration into both legacy Modbus RTU installations and modern Ethernet automation architectures.

Q2: What is the typical communication latency for analog data acquisition with the 170ADI35000?
The 170ADI35000 provides a module scan cycle of approximately 10 ms per channel group, with overall Modbus I/O bus cycle times typically in the range of 5–20 ms depending on the number of modules in the I/O drop and the CPU adapter configuration. For most process control and monitoring applications, this latency is well within acceptable limits. For time-critical applications, the Momentum CPU adapter can be configured for optimized scan priorities.

Q3: Can the 170ADI35000 be integrated with third-party SCADA and HMI systems outside of the Schneider Electric ecosystem?
Yes. Because the 170ADI35000 uses the open Modbus protocol — the most widely adopted industrial communication standard — it is compatible with virtually any SCADA or HMI platform that supports Modbus RTU or Modbus TCP/IP, including Wonderware InTouch, Ignition, iFIX, WinCC, and many others. Standard Modbus register mapping allows third-party systems to read analog process values directly without requiring proprietary drivers or middleware.

Q4: Does ZYPLC provide a warranty and pre-shipment testing for the 170ADI35000?
Yes. All 170ADI35000 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify analog channel accuracy, Modbus communication integrity, and backplane compatibility. Units are available from stock and ship globally via DHL or FedEx Express, with typical lead times of 3–7 business days depending on destination.

—
