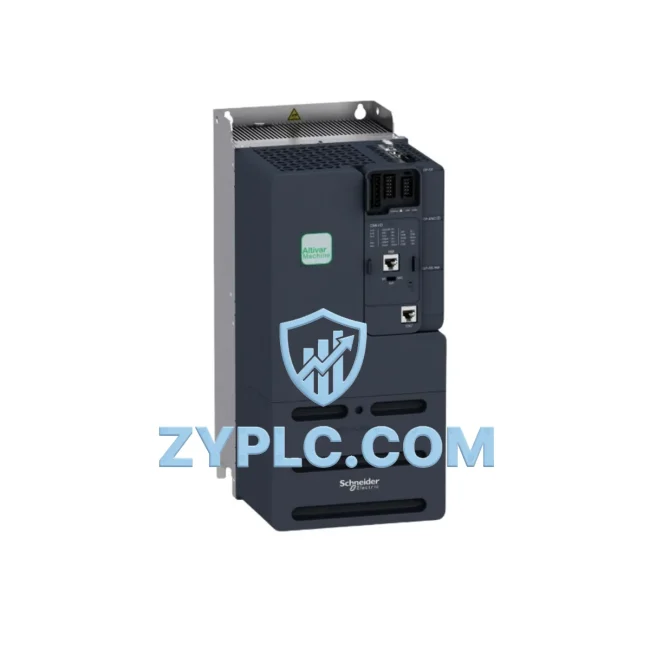

The Schneider Electric ATV340D15N4 is a 15 kW / 400 V three-phase variable speed drive belonging to the Altivar 340 series — a platform engineered for seamless system integration within layered industrial automation architectures. Rather than functioning as a standalone inverter, the ATV340D15N4 is designed from the ground up to operate as a coordinated node within a complete control system, interfacing coherently with programmable logic controllers, distributed I/O modules, fieldbus networks, human-machine interfaces, and upstream power distribution equipment. Its role in the control hierarchy spans the execution layer, where it translates digital command signals into precise motor speed and torque regulation, while simultaneously feeding real-time diagnostic and process data back to the supervisory control layer.

In modern manufacturing and process automation environments, the performance of a variable speed drive cannot be evaluated in isolation. System architects and commissioning engineers must consider how the drive integrates with the broader control topology — including CPU redundancy strategies, I/O signal routing, network communication protocols, cabinet thermal management, and long-term maintenance accessibility. The ATV340D15N4 addresses each of these dimensions through its native EtherNet/IP and Modbus TCP communication stack, its compact bookshelf form factor optimized for standard DIN-rail and panel-mount enclosures, and its embedded diagnostic intelligence that reduces mean time to repair across multi-drive installations.

Product Specification Table

System Compatibility Notes

The ATV340D15N4 achieves its highest operational value when deployed as part of a coordinated Altivar 340 multi-drive system or within a broader Schneider Electric EcoStruxure automation platform. At the control layer, a Modicon M340 or Modicon M580 CPU communicates with the drive via EtherNet/IP, issuing speed references, direction commands, and fault-reset signals while continuously polling drive status registers for integration into the SCADA historian. The M580 Hot Standby redundancy module ensures that a CPU failover event does not interrupt the speed reference signal to the ATV340D15N4, maintaining process continuity in critical applications.

At the I/O layer, the drive’s six digital inputs can be wired directly to Advantys STB distributed I/O modules or to TM3 expansion modules connected to a Modicon TM251 logic controller, enabling decentralized signal acquisition without additional relay interposing. The three analog inputs accept 0–10 V or 4–20 mA process feedback signals — for example, from a pressure transmitter or flow sensor — allowing the drive to participate in closed-loop PID regulation without burdening the CPU with additional function blocks.

At the network layer, the drive’s dual-port EtherNet/IP interface supports Device Level Ring (DLR) topology, enabling the ATV340D15N4 to be daisy-chained with other Altivar 340 drives and ConneXium managed switches without introducing single points of network failure. This architecture is particularly valuable in conveyor systems, pump stations, and multi-axis positioning lines where network resilience directly impacts production uptime.

At the power layer, the ATV340D15N4 is typically paired with a Schneider Electric Acti9 iC60N circuit breaker for upstream short-circuit protection and a TeSys D LC1D series contactor for safe isolation during maintenance windows. An optional line reactor or EMC filter — such as the VW3A4601 — can be installed upstream to suppress harmonic distortion and protect adjacent sensitive instrumentation from conducted emissions.

At the human-machine interface layer, the drive’s embedded Modbus TCP port allows direct integration with Magelis GTU HMI panels, enabling operators to monitor motor speed, output current, thermal state, and active fault codes from a single touchscreen without requiring additional communication gateways. For remote diagnostics, the EcoStruxure Machine Advisor cloud platform can aggregate drive health data across multiple ATV340D15N4 units installed in geographically distributed facilities, supporting predictive maintenance scheduling and spare parts planning.

At the execution layer, the ATV340D15N4 drives standard asynchronous induction motors and permanent magnet synchronous motors up to 15 kW, with motor auto-tuning routines that optimize flux vector control parameters during initial commissioning. When paired with a Lexium 32 servo drive in a mixed-topology machine, the ATV340D15N4 handles auxiliary axis speed regulation while the Lexium 32 manages precision positioning axes — a common architecture in packaging lines and textile machinery.

Industrial Application Notes

In manufacturing and assembly lines, the ATV340D15N4 is deployed to regulate conveyor belt speeds, rotary indexing tables, and cooling fan arrays. Its process PID function block allows the drive to autonomously maintain a target belt tension or product throughput rate, reducing the scan-cycle load on the Modicon PLC and improving overall system response time.

In water and wastewater treatment facilities, the drive controls submersible pump motors and aeration blower drives in variable-flow applications. Its sleep/wake function reduces energy consumption during low-demand periods, while the pipe-fill function prevents water hammer during pump startup — a critical requirement in municipal water distribution networks.

In oil, gas, and petrochemical plants, the ATV340D15N4 is installed in Zone 2 hazardous area control panels (with appropriate ATEX-rated enclosures) to drive compressor cooling fans, transfer pumps, and agitator motors. Its STO (Safe Torque Off) safety function, certified to SIL 2 / PLd, integrates directly with a Preventa XPS AV safety relay to achieve a certified safe stop without requiring a main contactor.

In mining and metallurgical applications, the drive manages crusher feed conveyors, ore transfer belts, and ventilation fan systems. Its robust thermal management — including an internal temperature sensor and automatic derating algorithm — ensures reliable operation in high-ambient-temperature underground environments where conventional drives frequently experience thermal shutdowns.

In power generation and utilities, the ATV340D15N4 is used to control boiler feed pump auxiliaries, cooling tower fan drives, and generator excitation cooling systems. Its compatibility with the PowerLogic PM8000 power quality meter via Modbus TCP enables integrated condition monitoring across the entire auxiliary drive network, supporting ISO 50001 maintenance planning compliance reporting.

Product Compatibility FAQ

Q1: Is the ATV340D15N4 compatible with Modicon M340 and M580 PLCs for EtherNet/IP communication, and what configuration tool is required?
Yes. The ATV340D15N4 natively supports EtherNet/IP implicit messaging (cyclic I/O) and explicit messaging (parameter read/write) with Modicon M340 and M580 CPUs. Configuration is performed using EcoStruxure Control Expert (formerly Unity Pro) with the ATV340 EDS file imported into the I/O scanner configuration. The drive’s IP address is assigned via the embedded keypad or through the SoMove PC commissioning tool, which also supports drive parameter backup, comparison, and firmware update — essential for maintaining configuration consistency across multi-drive installations.

Q2: Can the ATV340D15N4 be integrated into a redundant control architecture, and how does it behave during a CPU failover event?
The ATV340D15N4 supports integration into Modicon M580 Hot Standby redundancy architectures. During a CPU switchover, the drive’s configurable fallback behavior — defined by the LFL (Loss of Fieldbus) parameter — determines whether the drive maintains its last speed reference, decelerates to a preset fallback speed, or executes a controlled stop. For critical process applications, the recommended configuration is to hold the last valid speed reference for a user-defined timeout period (typically 500 ms to 2 s), allowing the standby CPU to assume control without triggering a process upset. This behavior is configured in the Communication menu of the SoMove commissioning tool and should be validated during Factory Acceptance Testing.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for the ATV340D15N4?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions identified within the warranty period. Warranty claims are processed through ZYPLC’s technical support team at plc.sales@zyplc.com, with a target response time of 24 business hours. For long-term maintenance planning, ZYPLC maintains buffer stock of ATV340D15N4 units and associated accessories — including VW3A4601 EMC filters, VW3A3618 braking resistors, and VW3A1104 remote keypad kits — to support planned maintenance shutdowns and emergency replacement requirements across multi-year service contracts.
