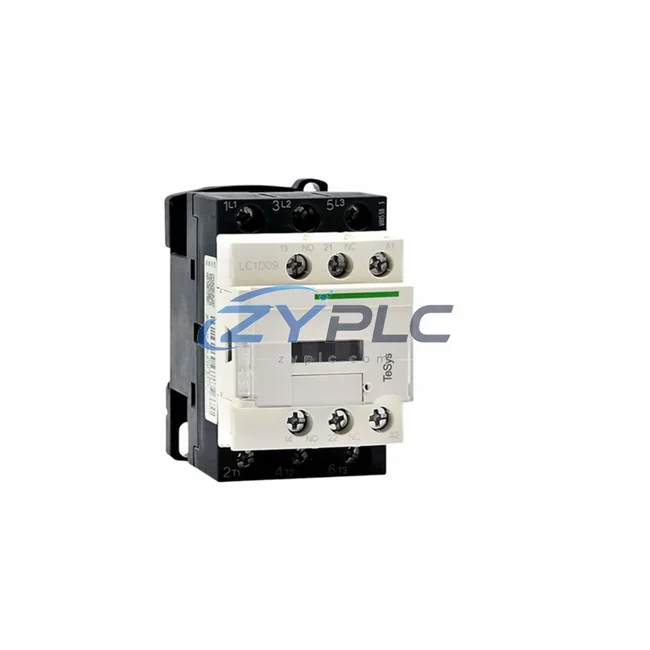

Schneider Electric LC1D09M7C AC Contactor for TeSys D

Schneider Electric LC1D09M7C AC Contactor for TeSys D: Control Layer Coordination and System-Wide Integration

In modern industrial automation, the reliability of a control system is determined not by any single component, but by the coherence of every layer working in unison. The Schneider Electric LC1D09M7C is a 9A three-pole AC contactor from the TeSys D series, engineered to serve as a dependable switching element within layered automation architectures. Whether deployed in motor control centers, distributed I/O panels, or process control cabinets, the LC1D09M7C delivers consistent electrical performance that supports system-wide stability, scalability, and long-term maintainability.

This contactor is not simply a standalone switching device — it is a contextually integrated component designed to operate within the broader TeSys D ecosystem and alongside Schneider Electric’s Modicon PLC platforms, Altivar drive series, and Harmony HMI infrastructure. Its compact DIN-rail footprint, standardized coil interface, and IEC-rated contact ratings make it a natural fit for engineers designing systems where component interchangeability, spare-parts standardization, and predictable maintenance cycles are operational priorities.

Product Specification Table

System Compatibility Notes

The LC1D09M7C achieves its full value when considered within the context of a complete control architecture. In a typical Modicon M340 or Modicon M580-based system, the PLC CPU — such as the BMXP342020 or BMEP582040 — issues discrete output commands through local or distributed I/O modules. These signals are routed to the contactor coil via terminal blocks and wiring harnesses, enabling precise, scan-cycle-synchronized motor switching that aligns with the PLC’s ladder logic or function block programs.

On the power supply side, the ABL8RPS24100 24VDC regulated power supply provides stable auxiliary power to the contactor coil circuit and the associated I/O modules, ensuring that coil energization is free from voltage fluctuation that could cause nuisance tripping or contact bounce. Upstream, the GV2ME10 manual motor starter or GV3P40 motor circuit breaker provides short-circuit and overload protection, forming a coordinated protection chain that meets IEC 60947 selectivity requirements.

Thermal overload protection is typically handled by the LRD14 overload relay, which mounts directly onto the LC1D09M7C via the TeSys D mechanical coupling interface — eliminating the need for additional wiring between the contactor and overload relay. This integrated assembly reduces panel wiring complexity, shortens commissioning time, and creates a compact motor starter unit that can be replicated across multiple drive points within the same control cabinet.

For applications requiring reversing starter configurations, two LC1D09M7C units can be combined with a LAD4TBDL mechanical interlock kit, preventing simultaneous energization of both contactors and protecting the motor from phase reversal faults. Electrical interlock is simultaneously achieved through cross-wired auxiliary contacts, providing dual-layer protection consistent with IEC safety standards for reversing drives.

In systems where additional auxiliary contact capacity is required — for feedback signaling, remote indication, or safety relay monitoring — the LADN20 auxiliary contact block can be laterally mounted to the LC1D09M7C, adding 2 NO contacts without increasing the vertical footprint of the assembly. This modularity supports the integration of safety PLCs and emergency stop circuits that require positive-opening contact confirmation.

At the human-machine interface layer, the HMIGXU3512 Harmony GXU panel PC or XBTGT5330 Magelis HMI can display real-time contactor status, motor run hours, and fault history by reading I/O feedback signals through the Modicon PLC. This visibility layer is essential for predictive maintenance programs and remote diagnostics in facilities operating under continuous production schedules.

For networked architectures, the LC1D09M7C can be integrated into Modbus RTU or EtherNet/IP topologies through the TeSys T LTMR motor management relay, which provides current monitoring, thermal modeling, and communication-based control — transforming the basic contactor into a smart motor control node within the plant’s SCADA or DCS infrastructure.

Industrial Application Notes

The LC1D09M7C is widely deployed across industries where reliable motor switching, compact panel design, and system-level standardization are critical engineering requirements.

In manufacturing and packaging lines, the LC1D09M7C controls conveyor motors, indexing drives, and pneumatic valve actuators. Its fast make-and-break action supports high-cycle applications where contactors may switch hundreds of times per shift. Paired with Altivar ATV312 or ATV320 variable speed drives in bypass configurations, it enables smooth motor starting while maintaining manual override capability during drive maintenance.

In water treatment and pumping stations, the contactor operates submersible pump motors and booster pump sets in duty/standby configurations. The warranty terms confirmed during quotation and standardized TeSys D form factor ensure that replacement units are immediately interchangeable, minimizing downtime during unplanned maintenance events at remote installations.

In power distribution and electrical substations, the LC1D09M7C is used for capacitor bank switching, transformer fan control, and auxiliary service motor control. Its IEC-rated performance and CE certification satisfy the electrical safety requirements of utility-grade installations across European and Asian markets.

In petrochemical and process industries, the contactor is integrated into motor control centers (MCCs) controlling agitators, compressors, and cooling tower fans. The ability to mount LRD-series overload relays directly onto the contactor body simplifies MCC drawer assembly and supports the standardized spare-parts inventory strategies favored by plant maintenance teams.

In mining and metallurgical applications, where ambient temperatures and vibration levels are elevated, the LC1D09M7C’s robust contact design and IEC-rated operational endurance (AC-3 category) ensure reliable performance across extended maintenance intervals, reducing the frequency of scheduled contactor replacements in hard-to-access equipment rooms.

Product Compatibility FAQ

Q1: Is the LC1D09M7C compatible with Modicon M340 and M580 PLC discrete output modules?
Yes. The LC1D09M7C coil operates at 220V AC (M7 designation), and when driven through an interposing relay or solid-state relay interface connected to the PLC’s 24VDC discrete output module (such as the BMXDDO1602 or BMXDRA0805), it integrates seamlessly into Modicon-based control architectures. Engineers should verify coil inrush current against the relay output module’s rated switching capacity during panel design. The warranty terms confirmed during quotation covers the contactor unit as supplied, and ZYPLC supports RFQ sourcing for compatible interposing relay modules to support complete panel builds.

Q2: Can the LC1D09M7C be used in a reversing starter configuration, and what interlock accessories are required?
Yes. Two LC1D09M7C units can be configured as a reversing starter using the LAD4TBDL mechanical interlock kit, which physically prevents both contactors from closing simultaneously. Electrical interlock is achieved by cross-connecting the normally closed auxiliary contacts of each contactor into the coil circuit of the other. This dual-interlock approach complies with IEC 60947-4-1 requirements for reversing starters and is standard practice in TeSys D system design. ZYPLC supplies both the contactors and the interlock accessories under the same warranty terms confirmed during quotation terms.

Q3: What is the recommended maintenance interval for the LC1D09M7C in high-cycle applications, and how does the warranty terms confirmed during quotation apply?
Schneider Electric rates the LC1D09M7C for a mechanical endurance of 10 million operations and an electrical endurance of approximately 1 million operations at AC-3 rated current. In high-cycle applications (200+ operations per hour), engineers should schedule contact inspection at 6-month intervals, checking for contact wear, coil resistance drift, and auxiliary contact continuity. The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and premature failure under normal operating conditions. Units showing abnormal wear within the warranty period are eligible for replacement, and ZYPLC’s technical team can assist with root-cause analysis to identify upstream system issues contributing to accelerated contactor wear.
