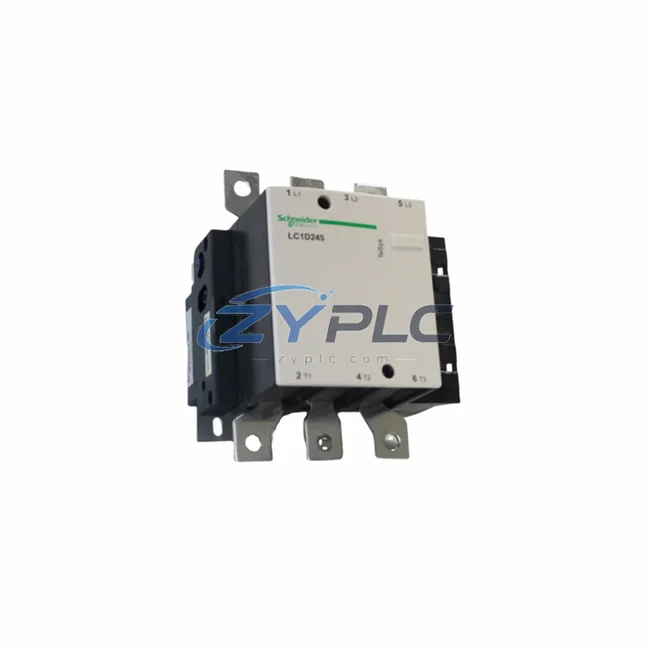

Schneider Electric LC1D245M7C AC Contactor for TeSYS D

Schneider Electric LC1D245M7C AC Contactor for TeSYS D

The Schneider Electric LC1D245M7C is a high-capacity AC contactor engineered for seamless integration within TeSYS D series control architectures. Rated at 245 A with a 220 V AC coil (M7C designation), this contactor occupies a critical position in the power switching layer of industrial automation systems — bridging the gap between the control logic layer and the load execution layer. Whether deployed in motor control centers, distribution panels, or process-critical switchgear assemblies, the LC1D245M7C delivers the switching reliability, thermal stability, and system compatibility that modern industrial environments demand.

In a fully layered automation architecture, the LC1D245M7C does not operate in isolation. It functions as the final switching authority in a coordinated chain that begins at the CPU or PLC level, passes through I/O modules and communication gateways, and terminates at the load — whether that load is a high-power motor, a transformer bank, a compressor, or a process pump. Understanding this position within the system hierarchy is essential for engineers specifying components for long-term operational continuity.

Product Specification Table

System Compatibility Notes

The LC1D245M7C achieves its full operational value when integrated within a coherent TeSYS D system architecture. At the control layer, a Modicon M340 or M580 PLC — such as the BMXP342020 or BMEP582040 — issues switching commands through discrete output modules like the BMXDDO1602 or BMXDDI1602. These signals are routed through the I/O layer and, where fieldbus communication is employed, through a communication gateway such as the BMXNOE0100 Ethernet module or a CANopen adapter, enabling remote contactor status monitoring and command acknowledgment.

At the power supply layer, units such as the ABL8RPS24100 (24 V DC, 10 A) or ABL8WPS24200 provide stable auxiliary power to the coil circuit and control logic, ensuring that coil energization remains consistent even under fluctuating main supply conditions. The LC1D245M7C coil circuit is typically protected by a surge suppressor module — the LAD4TBDL or equivalent — which eliminates voltage transients that could otherwise degrade coil insulation over time.

Thermal overload protection is provided by pairing the LC1D245M7C with a compatible TeSYS D overload relay such as the LRD3355 (48–65 A range for smaller configurations) or, for this current class, the LRD340 or LRD3359 series, which clip directly onto the contactor body without additional wiring. This direct-mount design reduces panel wiring complexity and ensures that the thermal model accurately reflects the actual current passing through the contactor poles.

For reversing or star-delta starter configurations, the LC1D245M7C is paired with a second contactor — typically another LC1D245M7C or a LC1D150M7C — along with mechanical and electrical interlocking accessories from the LA9 series. This arrangement is common in high-power pump stations, compressor drives, and mill motor starters where soft-start or reduced-voltage starting is required.

At the human-machine interface layer, operator panels such as the HMIGXU3512 or HMISCU6A5 provide real-time visibility into contactor state, overload trip events, and maintenance counters. When integrated with a SCADA or DCS platform, the LC1D245M7C’s status can be surfaced on process mimic diagrams, enabling operators to identify switching anomalies before they escalate into unplanned downtime.

Terminal wiring to the LC1D245M7C is facilitated by NSYTRV series terminal blocks or equivalent DIN-rail mounted terminals, ensuring clean, labeled, and maintainable connections within the control cabinet. Proper terminal torque values and cable sizing — per IEC 60947-4-1 — are essential for maintaining contact integrity at rated current over the product’s operational life.

Industrial Application Notes

The LC1D245M7C is deployed across a wide range of heavy industrial applications where reliable, high-current switching is non-negotiable. In water treatment and pumping stations, it controls submersible and surface-mounted pumps ranging from 75 kW to 132 kW, where frequent start-stop cycles demand high mechanical endurance and consistent coil response. The contactor’s AC-3 duty rating makes it ideally suited for these inductive load applications.

In petrochemical and refinery environments, the LC1D245M7C is installed in motor control centers (MCCs) managing compressor drives, agitator motors, and cooling tower fans. Its compliance with IEC/EN 60947-4-1 and UL 508 ensures acceptance by international engineering procurement standards, simplifying project approval workflows.

Mining and mineral processing operations rely on the LC1D245M7C for conveyor belt drives, crusher motors, and ventilation fan starters. In these environments, the contactor’s robust construction and high electrical endurance reduce the frequency of planned maintenance interventions, directly contributing to overall equipment effectiveness (OEE) targets.

In packaging and material handling lines, the LC1D245M7C is integrated into multi-motor control panels where coordinated start sequencing is managed by a Modicon PLC. The ability to mount overload relays directly and connect auxiliary contact blocks without additional hardware simplifies panel build time and reduces the risk of wiring errors during commissioning.

Power generation and substation auxiliary systems also utilize the LC1D245M7C for transformer tap switching, capacitor bank control, and auxiliary motor starting. In these applications, the contactor’s rated insulation voltage of 1000 V and its compliance with IEC standards provide the safety margins required by utility-grade engineering specifications.

Product Compatibility FAQ

Q1: Is the LC1D245M7C compatible with TeSYS D overload relays and auxiliary contact blocks from the same series?
Yes. The LC1D245M7C is fully compatible with the TeSYS D accessory ecosystem. Overload relays from the LRD series (specifically the LRD340 and LRD3359 for this current class) mount directly onto the contactor body using the integrated clip mechanism, eliminating the need for separate mounting rails or additional wiring. Auxiliary contact blocks from the LADN and LADN11 series attach to the front or side of the contactor, providing additional normally open and normally closed contacts for control circuit logic. This modular architecture ensures that system designers can configure the contactor assembly to match specific application requirements without sourcing components from multiple product families.

Q2: Can the LC1D245M7C be integrated into a Modicon M340 or M580 PLC-controlled system, and what communication options are available?
The LC1D245M7C is designed for integration into PLC-controlled systems including Modicon M340 (BMXP342020) and M580 (BMEP582040) platforms. In standard configurations, the contactor is controlled via discrete output modules such as the BMXDDO1602, with coil energization managed by the PLC’s output relay or transistor outputs. For systems requiring fieldbus integration, TeSYS U communication modules and CANopen or Modbus adapters can be incorporated into the control circuit, enabling remote monitoring of contactor state, coil voltage, and auxiliary contact status. This system integration capability allows the LC1D245M7C to participate in plant-wide asset management and predictive maintenance programs.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
All LC1D245M7C units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of dispatch. This warranty covers manufacturing defects, coil failures, and contact assembly faults identified under normal operating conditions consistent with IEC/EN 60947-4-1 duty classifications. For maintenance engineers, the warranty terms confirmed during quotation provides a defined baseline for spare parts planning — units held in strategic inventory can be deployed with confidence that warranty coverage remains active. ZYPLC maintains availability subject to RFQ confirmation of the LC1D245M7C and related TeSYS D components, enabling rapid dispatch to minimize system downtime. For warranty claims or technical support, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
