Schneider Electric LC1D32M7C Industrial Network Interface for TeSys D Systems

Schneider Electric LC1D32M7C: Industrial Network Contactor for Smart Factory Data Connectivity

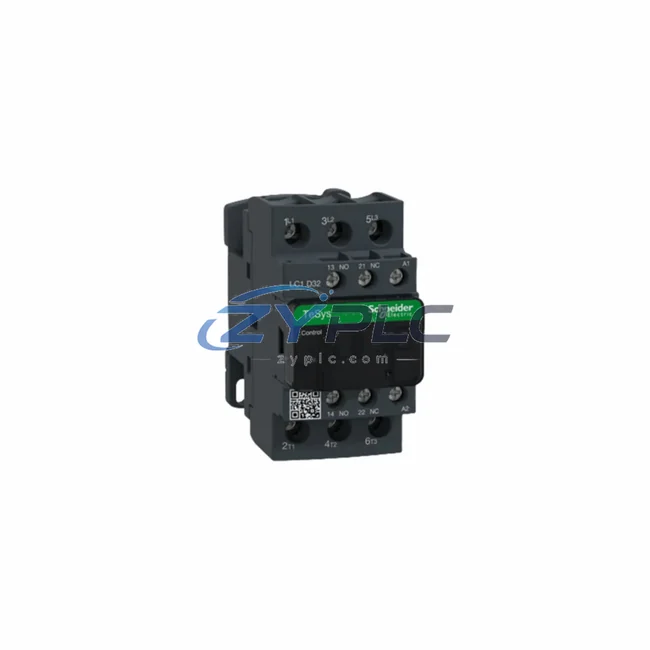

The Schneider Electric LC1D32M7C is a 32-amp, three-pole contactor from the TeSys D series, engineered to serve as a critical network-ready switching node within modern industrial automation architectures. Designed for integration into intelligent motor control centers, this device bridges the gap between field-level power switching and upper-level communication networks, enabling real-time monitoring, remote diagnostics, and protocol-driven control across distributed manufacturing environments.

In today’s smart factory landscape, every switching device must participate in the broader data flow—from sensor-level signal acquisition through protocol conversion gateways, across industrial Ethernet backbones, and up into SCADA/HMI supervision platforms. The LC1D32M7C fulfills this role by operating seamlessly within Schneider Electric’s TeSys D ecosystem, where communication modules such as the LUA1C11 and LULC033 enable direct Modbus RTU, CANopen, and Profibus DP connectivity. This transforms a traditional contactor into an addressable, diagnosable network participant capable of reporting coil status, thermal relay feedback, and switching cycle counts to upstream controllers.

Network Communication Specifications

Connected Automation Data Flow

Within a typical smart factory motor control application, the LC1D32M7C operates at the power-switching layer, receiving start/stop commands from a Schneider Electric TM221CE40R Modicon M221 PLC or a TM241CEC24R Modicon M241 controller via a dedicated fieldbus network. The communication adapter module LULC033 converts serial commands from the PLC’s Modbus RTU master port into switching actions, while simultaneously feeding back real-time contactor status—including coil energization state, auxiliary contact position, and cumulative operations count—to the supervisory layer.

At the network backbone level, an industrial managed switch such as the TCSESM083F2CU0 ConneXium ensures deterministic packet delivery between the motor control center and the plant-wide SCADA system. The HMI panel—often a Schneider HMIGXU3512 Magelis—displays live contactor status, thermal overload alerts from the associated LRD3355 thermal relay, and energy consumption trends aggregated by the upstream power monitoring module PM5110. When anomalies occur, the SCADA platform triggers alarm workflows that propagate through the Ethernet/IP backbone to maintenance terminals and mobile diagnostic applications.

For distributed architectures spanning multiple production lines, the TM3DI16 and TM3DQ16R remote I/O modules extend the PLC’s reach to distant motor groups, each protected by LC1D-series contactors. The edge gateway BMXNOE0110 provides OPC UA translation, enabling MES-level systems to poll device health data without disrupting real-time control traffic. This layered approach ensures that every LC1D32M7C contactor is not merely a power switch but an active data contributor within the plant’s digital nervous system.

Solving Data Isolation in Industrial Sites

Legacy motor control installations frequently suffer from protocol fragmentation and data isolation. Older contactors operate in electrical silence—switching loads without reporting status, accumulating wear without alerting maintenance, and consuming energy without measurement. The LC1D32M7C, when paired with TeSys D communication accessories, eliminates these blind spots by exposing device-level telemetry to any Modbus, CANopen, or Ethernet-capable controller.

Protocol unification is achieved through Schneider’s communication architecture: a single RS-485 bus can daisy-chain dozens of TeSys D starters, each reporting through standardized register maps. This collapses previously siloed motor groups into a transparent, queryable network segment. For brownfield upgrades, the drop-in mechanical compatibility of the LC1D32M7C with existing TeSys D mounting rails and wiring patterns means that network enablement requires only the addition of a communication module—no panel redesign, no rewiring of power circuits.

Remote monitoring becomes practical even for geographically dispersed facilities. A plant engineer in a central control room can verify contactor health across multiple buildings, schedule predictive maintenance based on switching cycle thresholds, and validate post-repair functionality without dispatching technicians to each motor control center. This transparency directly reduces unplanned downtime, extends equipment lifespan, and supports continuous improvement initiatives aligned with Industry 4.0 objectives.

Industrial Connectivity FAQ

Q1: What communication protocols does the LC1D32M7C support for network integration?
The LC1D32M7C itself is an electromechanical contactor; network connectivity is achieved by attaching TeSys D communication modules (LUA1C11 for CANopen, LULC033 for Modbus RTU, LULC08 for Profibus DP, or LULC15 for Ethernet/IP). Once equipped, the contactor becomes a fully addressable node on the selected fieldbus, capable of bidirectional data exchange with PLCs, SCADA systems, and HMI panels.

Q2: How does this contactor contribute to reducing communication latency in motor control networks?
When connected via Modbus RTU at 19200 bps on an RS-485 segment, typical polling response time is under 20 ms per device. On Ethernet/IP networks, implicit messaging achieves sub-10 ms update rates. These response times ensure that motor start/stop commands and status feedback remain well within the deterministic requirements of coordinated drive sequences and safety interlocking logic.

Q3: Can the LC1D32M7C be integrated into existing SCADA and HMI platforms without custom development?
Yes. Schneider Electric provides standardized device description files (EDS for CANopen, GSD for Profibus, EDS for Ethernet/IP) that allow direct import into major SCADA platforms including Wonderware, Ignition, and Schneider’s own EcoStruxure. Register maps follow IEC standards, enabling drag-and-drop tag configuration in most HMI engineering environments.

Q4: What warranty and testing does ZYPLC provide for this product?
Every LC1D32M7C shipped by ZYPLC undergoes functional verification including coil pull-in/drop-out voltage testing, contact resistance measurement, and insulation resistance validation. Units are covered by a warranty terms confirmed during quotation from date of shipment, with technical support available for integration troubleshooting and protocol configuration assistance.
