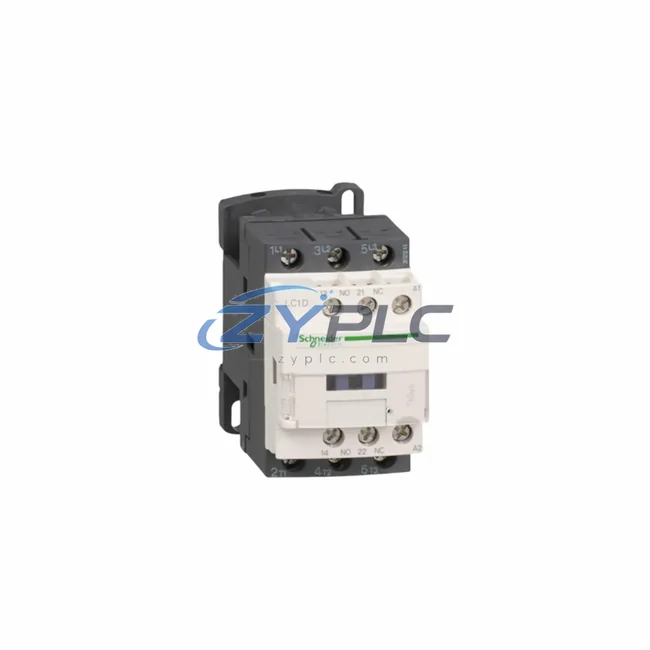

The Schneider Electric LC1D40M7C is a 3-pole IEC contactor from the TeSys D series, rated at 40A with a 220V AC coil (M7C designation). Within a layered industrial automation architecture, this contactor occupies a critical position at the execution layer — directly switching motor loads and resistive circuits in response to commands issued from the control layer. Its role is not isolated; it is deeply embedded in a coordinated system where every upstream and downstream component depends on its reliable, repeatable switching performance.

In modern industrial control system design, the execution layer must respond with precision to signals originating from programmable logic controllers such as the Modicon M340 or Modicon M580 series. The LC1D40M7C receives its coil energisation signal through an intermediate relay or directly from a digital output module, ensuring galvanic isolation between the control voltage domain and the power circuit. This architecture protects the CPU and I/O modules from voltage transients generated during motor starting and stopping cycles.

Product Specification Table

System Compatibility Notes

The LC1D40M7C achieves its full value when integrated within a coherent system architecture rather than deployed as a standalone switching device. In a typical motor control centre (MCC) or control cabinet, this contactor works in close coordination with a range of complementary components across multiple system layers.

At the overload protection layer, the LRD340 thermal overload relay mounts directly onto the LC1D40M7C without additional wiring adapters, forming a compact motor starter assembly. The LRD340 provides class 10 or class 20 tripping characteristics and feeds a fault signal back to the PLC digital input module, enabling the control system to log events and initiate safe-state sequences automatically.

For suppression of coil-induced voltage spikes, the LAD4TBDL RC suppressor is fitted directly across the contactor coil terminals. This protects adjacent solid-state output modules and extends the service life of the coil itself — a detail that significantly reduces unplanned downtime in high-cycle applications such as conveyor drives and pump stations.

At the power supply layer, the ABL8RPS24100 regulated SMPS (24V DC, 10A) provides stable auxiliary power to the control circuit, PLC I/O racks, and coil interface relays. Voltage stability at this layer is non-negotiable: fluctuations directly affect contactor pick-up and drop-out reliability, particularly in installations where multiple contactors switch simultaneously.

The control layer is typically anchored by a Modicon M340 CPU (BMXP342020) or a Modicon M580 CPU (BMEP582040), both of which support Ethernet/IP and Modbus TCP communication. Digital output modules such as the BMXDDO1602 issue switching commands to the LC1D40M7C coil circuit, while digital input modules such as the BMXDDI1602 monitor auxiliary contact status for feedback confirmation.

For applications requiring distributed I/O, the TM3DI16 expansion module extends the input capacity of a Modicon TM3 or M221 controller, enabling status monitoring of multiple contactors across a production line from a single network node. This architecture reduces field wiring complexity and simplifies commissioning.

At the human-machine interface layer, an HMIGXU3512 GXU series panel provides operators with real-time visibility of contactor status, motor running hours, and fault history. Integration with the PLC via Ethernet ensures that the HMI reflects the true system state without polling delays.

In redundant drive architectures, the LC1D40M7C is frequently paired with a second contactor — such as the LC1D25M7C (25A, 220V AC coil) — in a star-delta or duty/standby configuration. Mechanical and electrical interlocking between the two contactors is achieved using the LAD9C3 mechanical interlock kit, preventing simultaneous energisation and protecting the motor from phase conflicts.

Industrial Application Notes

The LC1D40M7C is deployed across a broad range of industrial sectors where reliable motor switching is a prerequisite for process continuity.

In water and wastewater treatment facilities, this contactor controls submersible pump motors, aeration blowers, and sludge transfer pumps. Its IEC 60947-4-1 compliance and robust contact material ensure consistent performance in humid, corrosive environments where maintenance access is limited and unplanned downtime carries regulatory consequences.

In oil, gas, and petrochemical installations, the LC1D40M7C is integrated into motor control centres managing compressor drives, cooling fans, and process pumps. The ability to mount thermal overload relays and auxiliary contact blocks directly onto the contactor body reduces panel footprint — a critical consideration in hazardous area enclosures where space is constrained.

In mining and metallurgical applications, the contactor handles high-inertia loads such as conveyor belt drives, crusher motors, and ventilation fans. Its AC-3 duty rating at 40A ensures adequate contact endurance under the repeated heavy-load switching cycles characteristic of these environments.

In food, beverage, and packaging production lines, the LC1D40M7C controls filling machine drives, labelling conveyors, and palletiser motors. Integration with a Modicon PLC and TeSys T motor management relay enables predictive maintenance scheduling based on accumulated switching cycles and thermal history — reducing reactive maintenance costs and extending equipment service intervals.

In building automation and HVAC systems, the contactor manages chiller compressors, air handling unit fans, and cooling tower pumps. Its compact DIN rail mounting profile allows dense installation in electrical distribution boards, and its warranty terms confirmed during quotation provides procurement teams with a documented quality assurance baseline for facility management records.

Product Compatibility FAQ

Q1: Is the LC1D40M7C compatible with Modicon M340 and M580 PLC digital output modules?
Yes. The LC1D40M7C coil operates at 220V AC, which is typically driven through an intermediate relay interfaced with the PLC’s 24V DC digital output module (e.g., BMXDDO1602). This two-stage switching arrangement maintains isolation between the PLC control voltage domain and the 220V AC coil circuit, protecting the output module from inductive kickback and ensuring compliance with IEC 61131-2 output circuit requirements. Direct coil control from a 220V AC output module is also supported where the module’s rated output current exceeds the contactor’s coil inrush current.

Q2: Can the LC1D40M7C be used in a star-delta starter configuration, and what interlock components are required?
Yes. In a star-delta configuration, three contactors are typically used: a main contactor (LC1D40M7C), a star contactor (LC1D25M7C or equivalent), and a delta contactor (LC1D40M7C). Mechanical interlocking between the star and delta contactors is achieved using the LAD9C3 mechanical interlock kit. Electrical interlocking is implemented via the auxiliary contacts (1NO+1NC) integrated into each contactor, wired in series with the opposing contactor’s coil circuit. Timing control is managed by the PLC program or a dedicated star-delta timer relay, ensuring the transition delay meets motor manufacturer specifications.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers the LC1D40M7C against manufacturing defects, contact failure, coil open-circuit, and mechanical operating faults under normal industrial service conditions. For maintenance engineers, this warranty period provides a documented quality assurance baseline that supports spare parts inventory planning, CMMS (Computerised Maintenance Management System) scheduling, and procurement justification for capital expenditure approvals. All units supplied are tested prior to dispatch and accompanied by documentation confirming operational verification. Replacement or repair is handled directly, minimising lead time impact on production schedules.

—
