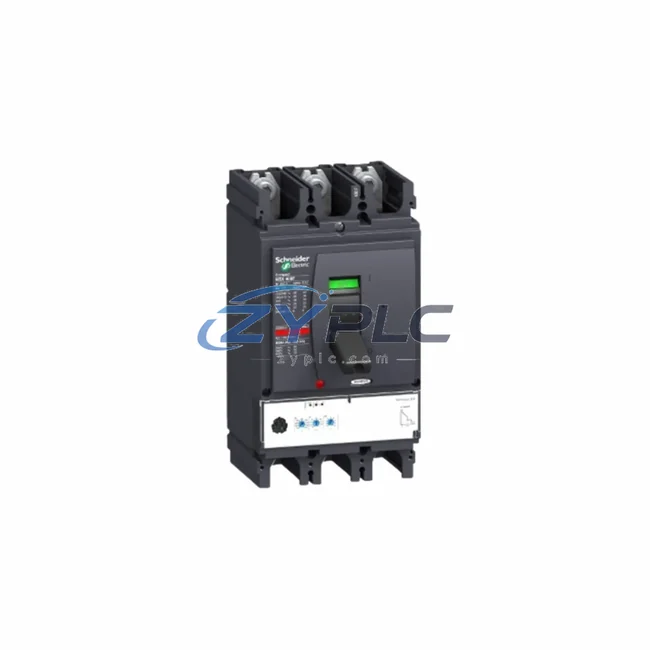

Schneider Electric NSX400N Circuit Breaker for Compact NSX

Schneider Electric NSX400N Circuit Breaker for Compact NSX

In modern industrial automation environments, the integrity of a control system depends not on any single component, but on the coherent interaction of every layer — from the power distribution tier down through the control layer, I/O modules, communication gateways, and field devices. The Schneider Electric NSX400N fixed circuit breaker, part of the Compact NSX family, occupies a critical position in this architecture: it is the protective backbone that ensures stable, uninterrupted power delivery to every downstream element of the control system. Without reliable overcurrent and short-circuit protection at the distribution level, the entire automation stack — PLCs, I/O racks, HMI panels, and drive systems — becomes vulnerable to cascading failures that are costly, dangerous, and difficult to diagnose.

The NSX400N is engineered for fixed-mount installation in low-voltage switchgear panels and motor control centers (MCCs), where it provides rated current protection up to 400 A with an Icn breaking capacity suited for industrial distribution networks. Its compatibility with Micrologic trip units — including the Micrologic 2.3 and Micrologic 5.3 — allows engineers to configure precise protection curves tailored to the load profile of each downstream circuit. This level of system integration means the NSX400N does not simply interrupt fault current; it communicates protection intent across the system architecture, enabling coordinated selectivity with upstream Masterpact NW air circuit breakers and downstream Acti9 iC60 miniature circuit breakers.

Product Specification Table

System Compatibility Notes

The NSX400N achieves its full value when understood as part of a coordinated protection and control hierarchy. In a typical layered automation system, the power layer feeds directly into the control layer, where a Modicon M340 or Modicon M580 PLC manages process logic. The BMXCPS3500 rack power supply module within the M340 backplane depends on stable, fault-free incoming power — exactly what the NSX400N is designed to guarantee. A voltage sag or uncleared fault upstream of the NSX400N can corrupt PLC memory, trigger unplanned shutdowns, or damage I/O modules such as the BMXDDI1602 digital input module or BMXDDO1602 digital output module.

At the network layer, communication gateways such as the BMXNOE0110 Ethernet module or the TSXETG100 Modbus TCP gateway rely on continuous power to maintain real-time data exchange between the field and the SCADA or DCS layer. Interruptions at the distribution level propagate upward through the network stack, causing data loss, alarm floods, and operator confusion. By providing selective, coordinated protection, the NSX400N ensures that only the faulted circuit is isolated, while all other system segments — including the Magelis GTO HMI panel at the operator interface layer — remain fully operational.

In redundant architecture designs, the NSX400N is often deployed in dual-bus configurations alongside an NSX630N or Masterpact NW08N2 as the main incomer, with the NSX400N serving as the section breaker or feeder breaker. This arrangement supports bus-tie switching, allowing maintenance on one bus section without interrupting production on the other. The Acti9 iC60N MCBs downstream of the NSX400N provide final circuit protection for individual field instruments, transmitters, and solenoid valve panels, completing the protection cascade from the main incomer to the last field device.

Industrial Application Notes

The NSX400N is widely deployed across demanding industrial sectors where power continuity is non-negotiable. In power generation and substation automation, it protects auxiliary power distribution boards feeding protection relays, bay control units, and RTUs. In petrochemical and refinery applications, it serves as the feeder breaker for motor control centers driving pumps, compressors, and agitators, where an unplanned trip can trigger process upsets with significant safety and financial consequences.

In water and wastewater treatment facilities, the NSX400N is installed in MCC panels controlling submersible pumps, blowers, and UV disinfection systems. Its robust breaking capacity and compatibility with earth leakage protection modules make it suitable for wet, corrosive environments where ground fault protection is mandatory. In mining and metallurgical operations, it protects high-current feeder circuits supplying conveyor drives, crusher motors, and ventilation fans — applications where the thermal-magnetic TM-D trip unit provides reliable overload protection without the complexity of electronic trip units.

In packaging and discrete manufacturing lines, the NSX400N is integrated into the main distribution board of automated production cells, where it coordinates with downstream PowerPact H-frame breakers and Tesys D contactors to provide both protection and switching capability. Its fixed mounting design reduces the risk of accidental withdrawal during maintenance, improving operational safety in high-throughput environments where downtime is measured in thousands of dollars per minute.

Product Compatibility FAQ

Q1: Is the NSX400N compatible with Schneider Electric’s Modbus communication infrastructure for remote monitoring?
Yes. When equipped with a Micrologic 5.3 or 6.3 electronic trip unit and an IFM (Interface Module), the NSX400N can be integrated into a Modbus RS-485 network, enabling remote readout of load current, operating load, and trip cause data. This allows SCADA systems and Modicon PLCs to monitor distribution health in real time, supporting predictive maintenance strategies and reducing unplanned downtime across the control architecture.

Q2: How does the NSX400N support selective coordination in a multi-tier protection scheme?
Selective coordination (discrimination) is achieved by configuring the NSX400N’s trip unit with a short-time delay (STD) setting that allows downstream breakers — such as Acti9 iC60N or NSX250N units — to clear faults before the NSX400N trips. This ensures that only the faulted feeder is isolated, preserving power to all other circuits. Schneider Electric’s Ecofit and Ecodial software tools can be used during engineering to verify discrimination levels across the full protection cascade.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance?
ZYPLC’s warranty terms confirmed during quotation covers the NSX400N against manufacturing defects, premature mechanical failure, and trip unit malfunction under normal operating conditions. Our technical team provides pre-sales architecture consultation, post-sales commissioning support, and access to replacement trip units and auxiliary accessories throughout the warranty period. For long-term maintenance, we recommend periodic contact inspection, trip mechanism testing, and trip unit calibration verification at 3-year intervals, consistent with IEC 60947-2 maintenance guidelines.
