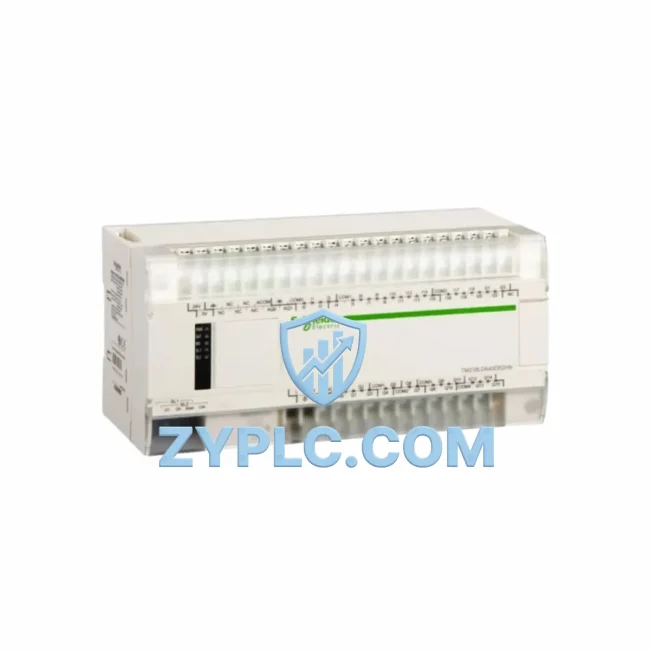

Schneider Electric TM218LDA40DR2HN Industrial Network Interface for Modicon M218 Systems

Schneider Electric TM218LDA40DR2HN Industrial Network Interface for Modicon M218 Systems

The Schneider Electric TM218LDA40DR2HN is a high-performance Modicon M218 Programmable Logic Controller engineered for demanding industrial network environments. With native Modbus TCP and Modbus RTU communication support, this compact PLC serves as a critical data link between field-level devices and upper-level control systems — bridging sensors, actuators, remote I/O modules, HMI panels, SCADA platforms, and enterprise MES layers within a unified, transparent smart factory architecture.

Designed for 24 VDC operation with 40 discrete I/O points (24 digital inputs, 16 digital outputs — relay type), the TM218LDA40DR2HN delivers deterministic scan-cycle performance essential for real-time process control. Its dual-port Ethernet interface enables simultaneous communication across multiple network segments, supporting ring topology redundancy and seamless integration into existing plant-floor Ethernet backbones without additional switching hardware.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the TM218LDA40DR2HN sits at the heart of the machine-level control layer, orchestrating data flow across the entire automation chain. At the field level, digital signals from proximity sensors, photoelectric detectors, and pressure transducers are wired directly into the PLC’s 24 digital input channels. These raw signals are processed within the deterministic scan cycle and made available upstream via Modbus TCP to supervisory systems.

For distributed I/O expansion, the M218 communicates with Schneider Electric TM3 remote I/O modules — including TM3DI16 digital input expansions and TM3DQ16R relay output modules — over the CANopen fieldbus, extending the I/O footprint across large machine frames without additional cabling complexity. This architecture mirrors the scalability found in the broader Modicon M221 and Modicon M241 controller families, allowing engineers to standardize on a single programming environment (EcoStruxure Machine Expert) across multiple machine generations.

Drive integration is handled natively: the TM218LDA40DR2HN exchanges speed references, torque commands, and fault status with Schneider Electric ATV320 variable frequency drives via Modbus RTU over the RS-485 serial port. This eliminates the need for analog signal wiring between the PLC and drive, reducing noise susceptibility and enabling precise closed-loop speed control with real-time feedback visible at the SCADA level.

At the HMI layer, Schneider Electric Magelis HMIGXU3512 touchscreen panels connect to the TM218LDA40DR2HN over Modbus TCP/IP, providing operators with live process visualization, alarm acknowledgment, and parameter adjustment without interrupting the control cycle. For facilities running Vijeo Designer-based HMI projects, the M218’s Modbus server function maps internal variables directly to HMI data registers, simplifying tag configuration and reducing commissioning time.

Where PROFINET or EtherNet/IP connectivity is required for integration with third-party SCADA systems or upstream MES platforms, the TCSEGPA23F14F Ethernet gateway bridges the Modbus TCP network of the M218 to PROFINET IO, enabling transparent data exchange with Siemens S7 or Rockwell ControlLogix supervisory layers. Similarly, the BMXNOC0401 Ethernet communication module — used in Modicon M340 architectures — can serve as a network peer, sharing production data with the M218 over a common Modbus TCP segment. For applications requiring IEC 61850 or DNP3 protocol translation at the substation or utility level, the BMXCRA31210 RIO drop adapter provides the necessary protocol gateway functionality within the Modicon Premium/Quantum ecosystem.

Every unit is pre-tested against Schneider Electric factory acceptance criteria before shipment, with firmware validated for compatibility with EcoStruxure Machine Expert v2.1 and above. Stock is maintained for immediate dispatch, supporting both urgent replacement orders and planned project rollouts.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is data isolation — legacy machines running proprietary protocols that cannot communicate with modern SCADA or MES platforms. The TM218LDA40DR2HN directly addresses this by acting as a protocol gateway at the machine level: its Modbus RTU port connects to older serial-based devices (legacy drives, flow meters, energy analyzers), while its dual Ethernet ports simultaneously serve Modbus TCP data to SCADA clients and HMI panels on the plant LAN.

For production line transparency, the M218’s internal data logging capability — combined with EcoStruxure Machine Expert’s built-in OPC UA server function — enables real-time KPI streaming to cloud-based analytics platforms without requiring a separate edge gateway device. Cycle counts, downtime events, alarm histories, and energy consumption data are all accessible remotely, transforming previously opaque machine cells into fully monitored production assets.

System expansion is equally straightforward: the TM218LDA40DR2HN supports up to 7 TM3 expansion modules on its local bus, and additional M218 controllers can be networked as Modbus TCP slaves under a single master SCADA node, scaling the architecture from a single machine to a multi-line production floor without architectural redesign. Remote diagnostics via EcoStruxure Machine Expert’s online monitoring mode allow engineers to read PLC variables, force I/O states, and upload/download programs over the plant Ethernet network — eliminating the need for on-site visits during routine troubleshooting.

Industrial Connectivity FAQ

Q1: What is the communication latency of the TM218LDA40DR2HN over Modbus TCP?
The Modicon M218 achieves typical Modbus TCP response times of under 5 ms on a 100 Mbps switched Ethernet network, making it suitable for time-sensitive data acquisition tasks in SCADA and HMI applications. Actual latency depends on network load and the number of simultaneous TCP connections (up to 16 supported).

Q2: Is the TM218LDA40DR2HN compatible with third-party SCADA systems such as Ignition or WinCC?
Yes. The TM218LDA40DR2HN supports standard Modbus TCP, which is natively supported by all major SCADA platforms including Ignition (Inductive Automation), Wonderware, WinCC, and iFIX. For OPC UA connectivity, EcoStruxure Machine Expert’s built-in OPC UA server function can be enabled without additional hardware.

Q3: Can the TM218LDA40DR2HN maintain network stability in electrically noisy industrial environments?
The M218 series is designed to IEC 61131-2 environmental standards, including EMC immunity testing for industrial environments. The RS-485 serial port supports differential signaling for noise rejection over long cable runs, and the Ethernet ports support auto-MDI/MDIX and link-fault detection for robust network operation.

Q4: What warranty and testing does the TM218LDA40DR2HN come with?
Every TM218LDA40DR2HN unit supplied by ZYPLC carries a 12-month warranty covering hardware defects and communication failures. Each unit undergoes functional testing — including I/O verification, Modbus TCP communication check, and firmware version confirmation — prior to shipment. In-stock units are available for same-week dispatch globally.
