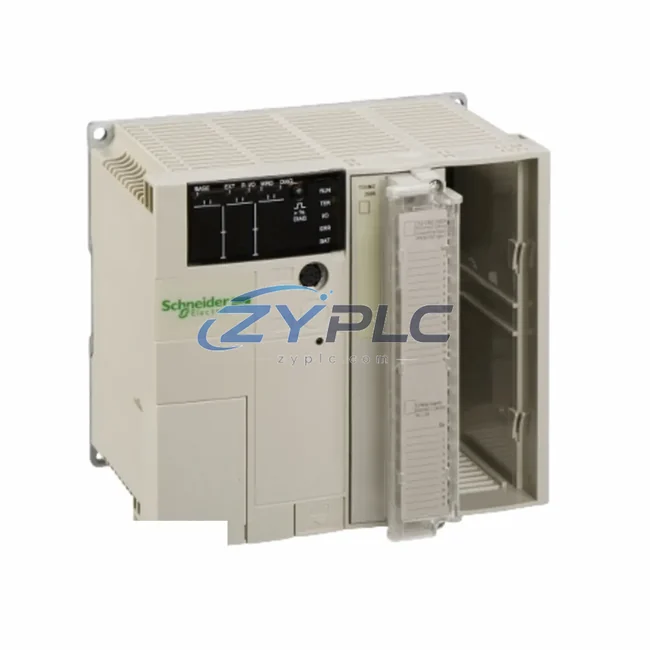

Schneider Electric TSX3721001 Industrial Network Interface for Momentum Systems

Schneider Electric TSX3721001 Industrial Network Interface for Momentum Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and supervisory systems is not a luxury — it is the operational backbone of every productive plant. The Schneider Electric TSX3721001 Modbus Communication Gateway is engineered precisely for this mission: to serve as a reliable, high-performance network interface within Schneider Electric’s Momentum automation platform, enabling real-time data exchange across the full control hierarchy — from sensor-level signal acquisition all the way to SCADA dashboards and enterprise MES layers.

The TSX3721001 acts as the communication bridge between Momentum I/O bases and the plant-wide Modbus TCP/IP network. Whether your architecture relies on Modbus RTU at the field level or Ethernet-based Modbus TCP at the supervisory level, this gateway handles protocol conversion transparently, ensuring that data integrity is maintained across every node in the network. Engineers deploying this module in manufacturing lines, water treatment facilities, or energy distribution substations consistently report reduced integration time and improved network stability compared to third-party bridging solutions.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the TSX3721001’s role requires viewing it within the complete data flow of a connected automation site. At the field level, sensors and actuators — including Telemecanique OsiSense inductive proximity sensors and Schneider Electric Altivar ATV312 variable frequency drives — generate continuous process signals. These signals are collected by Momentum I/O adapter modules such as the 170ADI34000 discrete input module and the 170ADO35400 discrete output module, which are mounted directly on the Momentum I/O base.

The TSX3721001 gateway, installed on the same Momentum backplane, reads this I/O data and transmits it upstream via Modbus TCP/IP to the plant network. At the control layer, a Modicon M340 CPU — for example the BMX P34 2020 — receives this data and executes the control logic. Simultaneously, a Magelis GTO advanced panel HMI connected to the same Ethernet segment displays real-time process values, alarm states, and trend data to operators on the floor.

For remote monitoring and diagnostics, the TSX3721001’s Ethernet port connects directly to a plant SCADA server running Wonderware System Platform or Schneider Electric’s EcoStruxure Operator Advisor. This allows engineers in the control room — or even off-site via VPN — to monitor every I/O point, acknowledge alarms, and perform remote diagnostics without interrupting production. In distributed architectures, multiple TSX3721001 gateways can be deployed across different production zones, all reporting to a centralized Modicon Quantum or Premium PLC acting as the master controller.

The gateway also supports integration with Schneider Electric’s ConneXium industrial Ethernet switches, which provide managed network segmentation, VLAN support, and port mirroring for network diagnostics — ensuring that the communication backbone remains stable even under high traffic loads. For power-sensitive installations, the Momentum platform’s 170CPS11100 power supply module ensures clean, regulated power delivery to the entire I/O base, protecting the TSX3721001 and connected modules from voltage fluctuations common in industrial environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, HMIs, and SCADA systems operate in silos, unable to share process data efficiently. The TSX3721001 directly addresses this problem by providing a standardized Modbus TCP/IP interface that virtually any supervisory system can query, regardless of the underlying field protocol.

In legacy plant upgrades, where older Modbus RTU serial networks must be integrated with modern Ethernet-based control systems, the TSX3721001 performs the protocol translation automatically. This eliminates the need for separate protocol converters or custom middleware, reducing both hardware cost and potential points of failure. Production line transparency improves dramatically: every sensor reading, drive status, and I/O state becomes visible in real time on the SCADA dashboard, enabling data-driven decisions on maintenance scheduling, production throughput, and energy consumption.

Remote monitoring capability is another critical benefit. With the TSX3721001 in place, maintenance engineers can access live diagnostic data from any Momentum I/O station on the network, identify faults before they escalate to unplanned downtime, and even perform remote parameter adjustments on connected Altivar drives — all without dispatching a technician to the field. System expansion is equally straightforward: additional Momentum I/O bases with TSX3721001 gateways can be added to the network without reconfiguring the existing architecture, supporting phased plant expansions and capacity upgrades.

Every TSX3721001 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, protocol response, and network stability. Units are shipped with full documentation and are backed by a warranty terms confirmed during quotation, with availability confirmed by RFQ availability ensuring fast delivery to support urgent project timelines.

Industrial Connectivity FAQ

Q1: What is the communication latency of the TSX3721001 on a Modbus TCP/IP network?
Under normal network conditions with standard Modbus TCP polling cycles, the TSX3721001 achieves typical response times of under 10 ms per transaction on a 100 Mbps Ethernet segment. Actual latency depends on network load, number of connected nodes, and polling frequency configured in the master PLC or SCADA system.

Q2: Is the TSX3721001 compatible with non-Schneider SCADA and HMI systems?
Yes. Because the TSX3721001 uses standard Modbus TCP/IP — an open, widely supported protocol — it is compatible with virtually any SCADA platform (including Ignition, iFIX, and WinCC) and any HMI that supports Modbus TCP communication. No proprietary drivers are required for basic read/write operations.

Q3: Can multiple TSX3721001 gateways be deployed on the same Ethernet network without address conflicts?
Yes. Each TSX3721001 is assigned a unique IP address during commissioning. Multiple units can coexist on the same network segment or across routed subnets, provided proper IP address management and network segmentation are applied. Schneider Electric’s ConneXium managed switches are recommended for larger multi-gateway deployments.

Q4: What does the warranty terms confirmed during quotation cover, and how does ZYPLC handle warranty claims?
The warranty terms confirmed during quotation covers manufacturing defects, communication failures, and hardware malfunctions under normal operating conditions. ZYPLC provides direct warranty support — contact our team at plc.sales@zyplc.com or +86 19859288691 to initiate a claim. Replacement units from RFQ-confirmed sourcing are dispatched promptly to minimize project downtime.
