Schneider Electric TSXP47455 Industrial Network Interface for Premium 57 Systems

Schneider Electric TSXP47455 Industrial Network Interface for Premium 57 Systems: Powering the Industrial Data Link in Smart Factory Environments

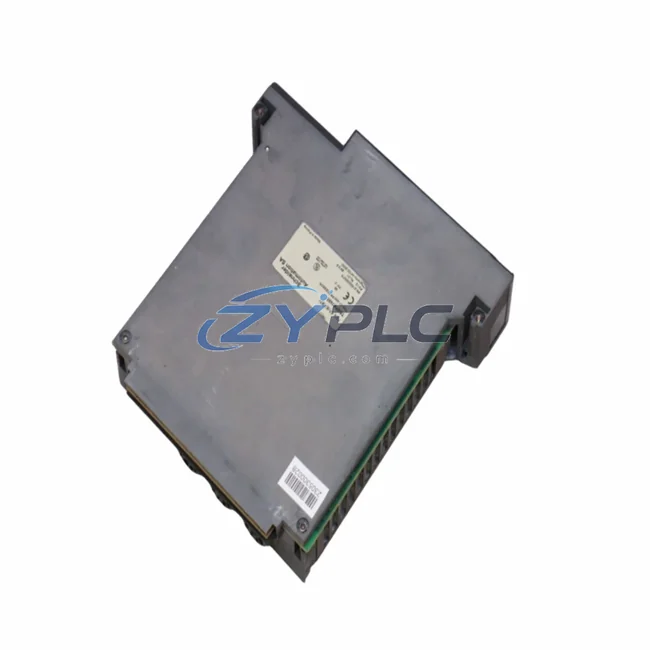

The Schneider Electric TSXP47455 is a high-performance Modbus Plus PLC processor module engineered for the Modicon Premium 57 platform — one of the most widely deployed programmable logic controller architectures in process automation, discrete manufacturing, and critical infrastructure. Designed to serve as the central intelligence node within a distributed control network, the TSXP47455 delivers deterministic scan cycles, robust Modbus Plus peer-to-peer communication, and seamless integration with Unity Pro and PL7 Pro programming environments. For industrial sites demanding real-time data acquisition, protocol-transparent connectivity, and long-term system reliability, this processor module represents a proven, field-validated solution.

At ZYPLC, we maintain ready stock of the TSXP47455 with full pre-shipment functional testing, warranty terms confirmed during quotation coverage, and global logistics support. Every unit is verified against original Schneider Electric specifications before dispatch.

Compatibility & Integration Notes

Connected Automation Data Flow

In a modern smart factory, the TSXP47455 functions as the central data orchestrator within the Modicon Premium 57 rack, coordinating signal flow across every layer of the automation hierarchy. At the field level, distributed I/O modules such as the TSX DEY 16D2 digital input module and TSX AEY 414 analog input module feed real-time process values — temperature, pressure, flow rate, and discrete states — directly into the processor’s memory map via the Premium backplane bus. These values are then propagated across the Modbus Plus network to peer controllers and supervisory systems without polling delays, thanks to the MB+ token-passing architecture that guarantees deterministic data delivery even under heavy network load.

For sites requiring Ethernet connectivity alongside Modbus Plus, the TSXETY 110 WS Ethernet communication module mounts in the same Premium rack and bridges the MB+ data domain to TCP/IP infrastructure, enabling SCADA platforms such as Wonderware InTouch, Ignition by Inductive Automation, or Schneider Electric’s own Vijeo Citect to subscribe to live process data. This dual-network architecture ensures that the TSXP47455 simultaneously serves local PLC-to-PLC communication on the factory floor and remote monitoring from the control room or cloud-connected edge gateway — eliminating the data silos that plague legacy automation environments.

Drive integration is equally seamless. Schneider Electric ATV71 and ATV312 variable frequency drives connected via Modbus RTU can be bridged onto the Modbus Plus network through a TSX SCP 114 PCMCIA communication card installed in the TSXP47455, allowing the processor to issue speed references, read fault codes, and log energy consumption data in a single unified data flow. This means that drive status, alarm history, and energy metrics are all visible in the same SCADA historian as the process I/O — a critical requirement for energy management and predictive maintenance programs.

At the sensor and remote I/O layer, Telemecanique OsiSense XS inductive proximity sensors and Schneider Electric Zelio Logic smart relays feeding into TSX RKY 12EX extension racks transmit their status back to the TSXP47455 for centralized alarm management and interlocking logic. At the HMI layer, Magelis XBTGT series touchscreen panels communicate directly with the TSXP47455 over Modbus Plus or Ethernet, rendering live process graphics, trend curves, and alarm banners without requiring intermediate OPC servers. For sites deploying edge computing, an industrial edge gateway running Schneider Electric EcoStruxure Machine Advisor can subscribe to the processor’s data via the Ethernet bridge, enabling predictive maintenance analytics and remote diagnostics from any web browser — eliminating the need for on-site service visits for routine fault investigation.

Solving Data Isolation in Industrial Sites

Many legacy manufacturing sites operate with fragmented automation islands — PLCs that cannot share data, drives that speak proprietary protocols, and sensors that report only to local displays. The TSXP47455, as the network-capable processor at the heart of the Modicon Premium 57 platform, directly addresses these data isolation challenges across four critical dimensions.

Protocol Unification: By supporting Modbus Plus natively and extending to Modbus RTU, Modbus TCP/IP, and FIPIO through optional communication modules, the TSXP47455 acts as a protocol gateway that consolidates data from heterogeneous field devices into a single, coherent process image. Engineers no longer need separate protocol converters for each device type — the processor itself becomes the integration hub, reducing wiring complexity, cabinet footprint, and commissioning time.

Production Line Transparency: With the TSXP47455 connected to a SCADA system via Ethernet, every machine state, cycle count, reject rate, and energy reading becomes visible in real time on operator dashboards. Supervisors can identify bottlenecks, track OEE (Overall Equipment Effectiveness), and respond to alarms within seconds rather than discovering issues during shift handover. The result is a measurable reduction in unplanned downtime and a clear audit trail for quality management systems.

Remote Monitoring and Diagnostics: The processor’s built-in diagnostic registers — accessible via Unity Pro’s online mode or through Modbus function codes — expose CPU load, memory usage, I/O module health, and communication error counters. When paired with an Ethernet module, these diagnostics can be polled remotely by maintenance engineers, reducing mean time to repair (MTTR) and minimizing unplanned downtime. Alarm feedback loops can be configured to trigger SMS or email notifications through SCADA middleware, ensuring that critical faults are escalated immediately regardless of shift coverage.

System Scalability: The Modicon Premium 57 platform supports rack expansion through TSX RKY extension racks and remote I/O drops connected via FIPIO or Modbus Plus, allowing the TSXP47455 to manage hundreds of I/O points across geographically distributed process areas without requiring additional processors. This scalability protects capital investment as production capacity grows, and the processor’s compatibility with both Unity Pro and PL7 Pro ensures that existing application programs can be reused without full re-engineering.

Pre-Shipment Testing and Warranty Assurance: Every TSXP47455 unit shipped by ZYPLC undergoes functional power-on testing, firmware version verification, and communication port validation before dispatch. The warranty terms confirmed during quotation covers hardware defects and ensures that replacement support is available throughout the warranty period, giving procurement and maintenance teams confidence in long-term operational continuity.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed of the TSXP47455 on a Modbus Plus network, and does network load affect PLC scan time?
The Modbus Plus network operates at a fixed 1 Mbps token-passing rate. The TSXP47455 handles MB+ communication asynchronously from the PLC scan cycle, meaning that network traffic does not directly extend the processor’s application scan time. However, large global data tables exchanged between multiple MB+ peers should be sized appropriately to avoid saturating the token rotation cycle on networks with more than 32 nodes.

Q2: Is the TSXP47455 compatible with both Unity Pro and PL7 Pro programming software, and can existing programs be reused?
Yes. The TSXP47455 supports both Unity Pro (v2.x and later) and PL7 Pro (v4.x), allowing sites to maintain existing PL7 Pro application programs while planning a migration path to Unity Pro for future projects. Both environments support online modification, forcing, and diagnostic monitoring without requiring a PLC stop, which is essential for continuous-process industries where production cannot be interrupted for software updates.

Q3: Can the TSXP47455 communicate with third-party SCADA systems that do not natively support Modbus Plus?
Yes. By adding a TSXETY 110 WS or TSXETY 5103 Ethernet module to the Premium rack, the TSXP47455’s data is accessible via Modbus TCP/IP — a universally supported protocol in SCADA platforms including Wonderware, Ignition, iFIX, and Citect. OPC DA/UA servers such as Kepware KEPServerEX can also poll the processor via Modbus TCP, providing a standards-based data bridge to any OPC-compatible HMI or historian without requiring proprietary drivers.

Q4: What does the warranty terms confirmed during quotation from ZYPLC cover, and what is the replacement process?
