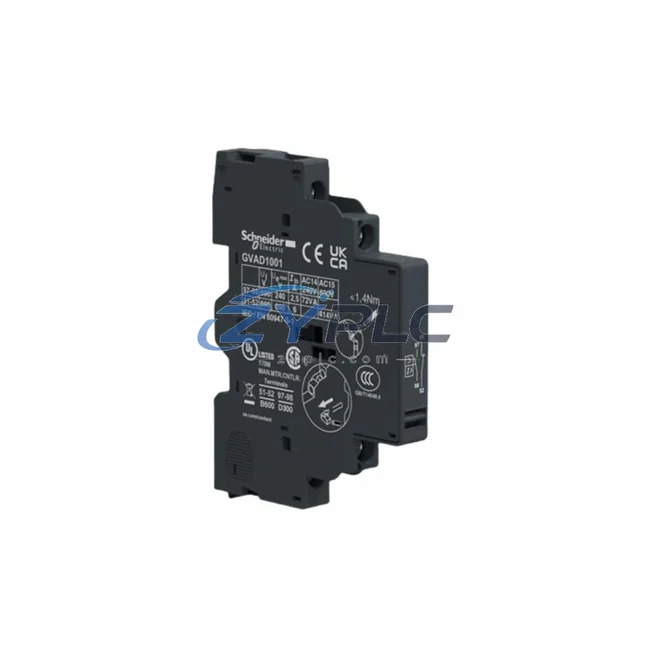

Schneider GVAD1001 Contact Block for TeSys Automation

Schneider GVAD1001 Contact Block for TeSys Automation

In modern industrial environments where energy efficiency directly impacts operational cost and production throughput, the Schneider Electric GVAD1001 auxiliary contact block delivers precise, low-loss signal feedback that forms the backbone of maintenance-focused motor control architectures. Designed for seamless integration with the TeSys GV2 and GV3 series motor circuit breakers, the GVAD1001 enables real-time status monitoring of motor protection devices — a critical capability for any facility aiming to reduce idle operating load, prevent unplanned downtime, and optimize production line rhythm.

Unlike passive signaling components, the GVAD1001 plays an active role in the energy feedback loop. When paired with a Schneider Electric Modicon M340 or M580 PLC, the contact state output from the GVAD1001 feeds directly into the controller’s digital input module, allowing the automation program to detect motor trip events within milliseconds. This rapid fault detection prevents cascading unplanned downtime — where a tripped motor left undetected continues to draw partial current or causes upstream equipment to operate inefficiently against a stalled load.

Product Specification Table

System Compatibility and Application

The GVAD1001 is most effective when deployed as part of a layered maintenance planning architecture. In a typical motor control center (MCC) configuration, the GV2ME motor circuit breaker provides thermal-magnetic protection, while the GVAD1001 side-mounted contact block extends its status to the control layer. This signal is then processed by a Schneider Electric TM221 or TM241 Modicon M221/M241 PLC, which executes operational-efficiency logic such as automatic motor shutdown during non-production intervals or load-shedding routines during peak demand periods.

For variable-speed drive applications, the GVAD1001 works in conjunction with the Altivar ATV312 or Altivar ATV630 variable frequency drives. The contact feedback from the GVAD1001 informs the drive controller whether the upstream circuit breaker is in a healthy closed state before enabling the drive output — preventing false starts that waste energy and stress mechanical components. This interlock logic is a standard operational-efficiency practice in pump and fan control systems, where unnecessary motor starts account for a significant portion of reactive operating load.

In more advanced configurations, the GVAD1001 integrates with the Schneider Electric PowerLogic PM5000 series power meters via the Modicon PLC’s communication layer. The PM5000 captures real-time kWh, power factor, and harmonic data, while the GVAD1001 provides the discrete event trigger — motor trip or reset — that timestamps energy anomalies in the historian. This combination enables facilities to correlate energy spikes with specific motor fault events, supporting root-cause analysis and predictive maintenance scheduling.

For I/O expansion in large MCC panels, the GVAD1001 contact outputs are typically wired to Schneider Electric TM3 expansion I/O modules, which extend the Modicon M221/M241 digital input capacity without requiring additional PLC racks. In distributed control topologies using CANopen or Modbus RTU fieldbus protocols, the GVAD1001 status can be aggregated through remote I/O stations such as the Advantys STB island bus system, enabling centralized condition monitoring across multiple motor circuits from a single SCADA or HMI terminal — for example, a Schneider Electric Magelis HMIGTO touchscreen panel.

When the production line includes conveyor systems or multi-motor coordination, the GVAD1001 contact block on each GV2/GV3 breaker provides the discrete handshake signal that the Modicon M580 ePAC uses to sequence motor starts in a staggered fashion, reducing inrush current peaks and lowering peak demand charges on the facility’s energy bill.

Maintenance and Replacement Notes

In food processing, automotive assembly, and packaging lines, unplanned motor trips are among the leading causes of production downtime and energy inefficiency. When a motor circuit breaker trips without a connected auxiliary contact, the control system has no immediate awareness of the fault — operators may not discover the issue for minutes, during which upstream equipment continues running against a stalled process, consuming energy without producing output.

The GVAD1001 eliminates this blind spot. Its 1 NO + 1 NC contact configuration provides both a normally-open run-confirmation signal and a normally-closed fault-alarm signal simultaneously. The PLC program uses the NC contact to trigger an immediate alarm and initiate a controlled shutdown of dependent equipment, preventing the energy cascade described above. Mean time to repair (MTTR) is reduced because the fault is detected and localized automatically, without manual inspection of each breaker in the panel.

In pump stations and HVAC systems — two of the highest energy-consuming subsystems in industrial facilities — the GVAD1001 enables duty/standby motor switching logic. When the duty motor’s GV2 breaker trips, the GVAD1001 contact signals the PLC to start the standby motor within seconds, maintaining process continuity and avoiding the energy penalty of restarting a cold system from scratch. This seamless switchover also extends the service life of both motors by distributing run hours evenly, reducing maintenance frequency and associated downtime costs.

For facilities pursuing ISO 50001 maintenance planning certification, the GVAD1001’s role in providing discrete motor status data is essential for building the energy baseline and monitoring plan required by the standard. Combined with the PowerLogic PM5000 power meter and a Modicon-based data acquisition system, the GVAD1001 contributes to a complete condition monitoring chain from the motor circuit level up to the facility energy dashboard.

All GVAD1001 units supplied by ZYPLC are sourced from authorized channels, undergo pre-shipment functional testing, and are covered by a warranty terms confirmed during quotation. Stock is maintained for shipment arranged after confirmation, supporting urgent MRO (maintenance, repair, and operations) requirements without extended lead times.

Product Sourcing FAQ

Q1: How does the GVAD1001 contribute to operational stability in a motor control system?
The GVAD1001 provides real-time discrete feedback on the state of the GV2 or GV3 motor circuit breaker. This allows the PLC to immediately detect motor trips, initiate controlled shutdowns of dependent equipment, and prevent idle operating load. In duty/standby configurations, it enables automatic motor switchover, maintaining process efficiency without manual intervention.

Q2: Is the GVAD1001 compatible with Altivar variable frequency drives and Modicon PLCs?
Yes. The GVAD1001 is designed to work within the broader Schneider Electric TeSys ecosystem. Its contact outputs are fully compatible with Modicon M221, M241, M340, and M580 PLC digital input modules, and it is commonly used as an interlock signal source for Altivar ATV312, ATV320, and ATV630 drive systems to prevent false starts and protect drive components.

Q3: What is the recommended replacement or upgrade path if the GVAD1001 is unavailable?
The GVAD1001 is a side-mount auxiliary contact block specific to the TeSys GV2/GV3 series. If unavailable, the GVAD1010 (1 NO only) or GVAD0101 (1 NC only) variants may be used depending on the control logic requirements. ZYPLC supports RFQ sourcing for the full GVAD accessory range and can advise on compatible alternatives based on your panel schematic.

Q4: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Each GVAD1001 unit undergoes functional contact continuity and insulation resistance testing prior to dispatch. The warranty terms confirmed during quotation covers manufacturing defects and premature contact failure under normal operating conditions. ZYPLC provides replacement or refund support for any unit that fails within the warranty period, with fast turnaround to minimize production impact.
