Schneider LC1D620M7C Contactor TeSys D Auto

Schneider LC1D620M7C Contactor for TeSys D Automation

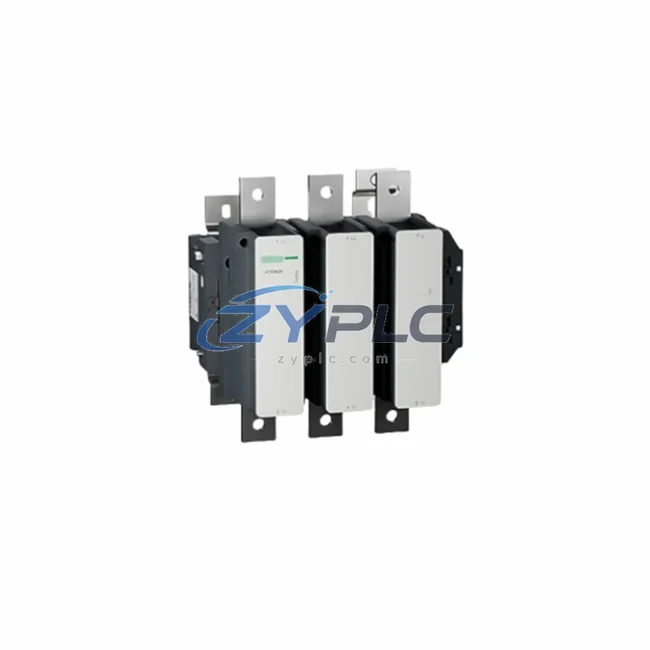

The Schneider Electric LC1D620M7C is a high-performance magnetic contactor from the TeSys D series, engineered to deliver precise, energy-efficient motor switching in demanding industrial environments. Rated for AC-3 duty at 620A, this contactor is purpose-built for heavy-duty motor control applications where minimizing reactive energy losses and maximizing equipment uptime are critical operational priorities. Whether deployed in compressor drives, conveyor systems, pump stations, or large-scale HVAC installations, the LC1D620M7C provides the switching reliability and thermal efficiency that modern production lines require.

In energy-intensive manufacturing environments, every switching cycle matters. The LC1D620M7C features a low-consumption coil design that reduces auxiliary power draw during holding state, directly contributing to measurable reductions in standby operating load across multi-contactor motor control centers (MCCs). When integrated with Schneider Electric’s TeSys T motor management relay — such as the LTM R series — the LC1D620M7C enables real-time current monitoring, thermal overload protection, and load-shedding logic that collectively reduce unnecessary motor run time and associated unplanned downtime.

For facilities operating variable-speed drive (VSD) systems, the LC1D620M7C serves as the upstream line contactor for Altivar ATV630 or ATV930 series variable frequency drives, ensuring clean isolation during drive faults and enabling safe restart sequences without manual intervention. This integration supports production line rhythm optimization by eliminating unplanned downtime caused by motor thermal trips or contactor weld failures — a common source of efficiency loss in high-cycle applications.

Product Specification Table

System Compatibility and Application

The LC1D620M7C does not operate in isolation — its maintenance planning value is fully realized when it functions as part of a coordinated automation architecture. In a typical maintenance-focused motor control system, the contactor works in conjunction with a Schneider Electric LRD (TeSys D thermal overload relay) to provide precise overcurrent protection calibrated to the motor’s full-load ampere rating, preventing thermal unplanned downtime from sustained overload conditions.

Upstream, a Schneider Electric NSX or NW series molded case circuit breaker (MCCB) provides short-circuit protection and selective coordination, ensuring that a fault on one motor branch does not cascade into a full-line shutdown — a critical factor in maintaining overall plant energy efficiency and production continuity. For power quality monitoring, the PM5000 series power meter or the iEM3000 series energy meter can be installed at the MCC bus to capture real-time kWh consumption, demand peaks, and power factor data, enabling energy managers to identify inefficient motor loads and schedule corrective action.

On the control side, the LC1D620M7C is typically commanded by a Modicon M340 or Modicon M580 PLC via discrete output modules (TM3 or BMXDDO series), with interlocking logic programmed in Unity Pro or EcoStruxure Machine Expert. This control architecture supports sequenced motor starting strategies — such as star-delta or soft-start sequencing using an Altistart ATS48 series soft starter — that dramatically reduce inrush current and the associated energy spike at motor start-up.

For facilities with Profibus DP or Modbus TCP communication backbones, the TeSys U or TeSys island distributed motor starter systems can complement the LC1D620M7C installation by providing decentralized motor control with fieldbus-integrated diagnostics, reducing wiring complexity and enabling faster fault identification. HMI visualization through a Magelis HMIGTO or HMISCU panel allows operators to monitor contactor status, coil cycle counts, and operating load trends in real time, supporting proactive maintenance scheduling before failures occur.

Maintenance and Replacement Notes

In real-world production environments, the LC1D620M7C contributes to maintenance planning across multiple dimensions. First, its robust silver-alloy contact design minimizes contact resistance during closed-state operation, reducing I²R losses that accumulate over millions of switching cycles in high-utilization applications such as injection molding machines, press lines, and packaging equipment.

Second, when deployed as the main contactor in a motor feeder with a coordinated TeSys D overload relay and a Schneider Electric Acti9 iC60 or iDT40 branch circuit breaker, the system enables precise motor protection that prevents the unplanned downtime associated with repeated thermal trips and manual resets. Each unplanned motor stop in a production line represents not only lost throughput but also the energy cost of restarting a loaded motor — an inrush event that can draw 6–8× the motor’s full-load current for several seconds.

Third, for facilities implementing ISO 50001 maintenance planning systems, the LC1D620M7C’s compatibility with Schneider Electric’s EcoStruxure Energy platform allows contactor-level switching data to be aggregated into plant-wide energy dashboards, providing the granular consumption visibility needed to identify and eliminate unplanned downtime at the equipment level. Predictive maintenance algorithms can use coil energization cycle counts and contact wear indicators to schedule replacement before failure, eliminating unplanned downtime and the associated production energy inefficiency.

All units supplied by ZYPLC are sourced from authorized distribution channels, individually tested for coil continuity, contact resistance, and mechanical operation prior to shipment, and covered by a warranty terms confirmed during quotation. Inventory is maintained RFQ Available for shipment arranged after confirmation, supporting urgent MRO (maintenance, repair, and operations) requirements without extended lead times.

Product Sourcing FAQ

Q1: How does the LC1D620M7C contribute to reducing factory operating load?
The LC1D620M7C uses a low-consumption coil design that minimizes holding power draw during continuous operation. When integrated with TeSys T motor management relays and Altivar variable frequency drives, it enables load-shedding, optimized motor starting, and real-time condition monitoring — all of which reduce unplanned downtime risk across motor-driven systems.

Q2: Is the LC1D620M7C compatible with Schneider Electric Altivar VFDs and Modicon PLCs?
Yes. The LC1D620M7C is fully compatible as a line contactor for Altivar ATV630 and ATV930 series drives and can be controlled via discrete outputs from Modicon M340 and M580 PLCs. It also coordinates with TeSys D overload relays and NSX/NW series MCCBs for complete motor feeder protection.

Q3: What is the recommended replacement or equivalent if LC1D620M7C is unavailable?
The LC1D620M7C is a standard TeSys D series contactor. In cases of extended lead time, ZYPLC can advise on compatible TeSys D or TeSys F series alternatives based on your application’s current rating, coil voltage, and auxiliary contact requirements. Contact our technical team for a verified cross-reference.

Q4: What testing and warranty coverage is provided with each unit?
Every LC1D620M7C unit shipped by ZYPLC undergoes pre-shipment testing covering coil energization, contact resistance measurement, and mechanical operation verification. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Warranty claims are supported by our technical team with replacement or repair as applicable.
