Schneider LUFP7 ABC-PDP-SE Industrial Network Interface for ATV Systems

Schneider LUFP7 ABC-PDP-SE Industrial Network Interface for ATV Systems: Bridging Field Devices and Smart Factory Data Links

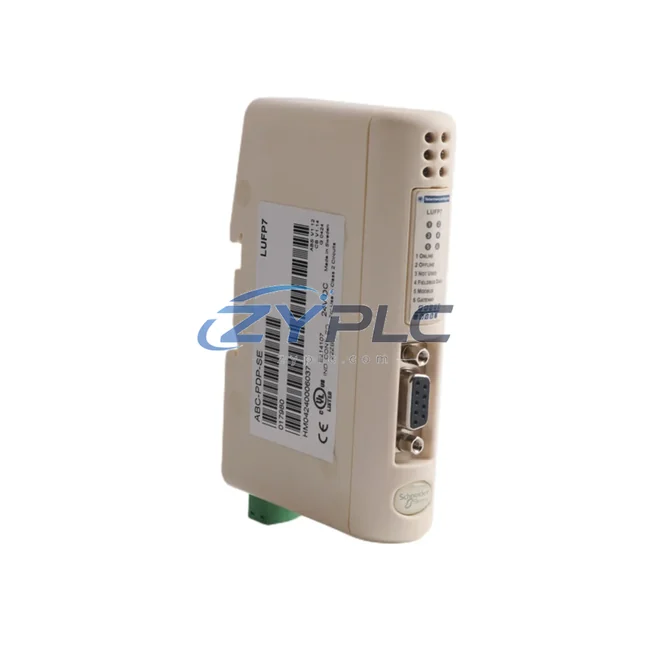

The Schneider Electric LUFP7 ABC-PDP-SE is a high-performance Profibus DP communication gateway engineered to integrate Altivar (ATV) series variable frequency drives into industrial automation networks. As manufacturing environments evolve toward fully connected smart factory architectures, the demand for reliable, low-latency protocol conversion between field-level devices and supervisory control systems has never been greater. The LUFP7 ABC-PDP-SE answers this demand by providing a robust, standards-compliant communication bridge that enables seamless data exchange across the entire automation hierarchy — from sensor-level signal acquisition all the way to enterprise-level SCADA and MES platforms.

Designed for demanding industrial environments, this gateway supports the Profibus DP protocol, one of the most widely deployed fieldbus standards in process automation and discrete manufacturing. By mounting directly onto compatible ATV series drives — including the ATV312, ATV61, and ATV71 families — the LUFP7 ABC-PDP-SE eliminates the need for additional signal converters or intermediate hardware, reducing installation complexity and improving overall network reliability.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the LUFP7 ABC-PDP-SE sits at the intersection of the field device layer and the control network layer. The data flow begins at the motor and drive level: an ATV71 variable frequency drive monitors real-time parameters such as output frequency, motor current, torque setpoint, and fault status. These values are continuously polled by the Profibus DP master — typically a Schneider Electric Modicon M340 or Modicon M580 PLC — through the LUFP7 ABC-PDP-SE gateway at cycle times as fast as 1 ms, ensuring deterministic control response.

Upstream from the PLC, a Schneider Electric Magelis HMIGTO advanced HMI panel visualizes drive status, speed references, and alarm conditions in real time, giving operators immediate visibility into motor performance without leaving the control room. Simultaneously, a Wonderware or Vijeo Citect SCADA system aggregates data from multiple Profibus DP segments, enabling plant-wide energy monitoring, production KPI tracking, and historical trend analysis.

For distributed installations, Schneider Electric TM3 remote I/O modules extend the Profibus DP network to field junction boxes, collecting digital and analog signals from proximity sensors, pressure transmitters, and temperature probes. These signals are routed back through the Profibus backbone to the Modicon PLC, where logic programs execute closed-loop control algorithms that adjust ATV drive speed references in response to process conditions.

In more complex architectures, an edge gateway such as the Schneider Electric EcoStruxure Machine Advisor or a third-party IIoT edge device aggregates Profibus DP data and forwards it via MQTT or OPC-UA to cloud-based analytics platforms. This enables predictive maintenance algorithms to analyze motor vibration trends, bearing temperature drift, and insulation resistance degradation — generating maintenance alerts before unplanned downtime occurs.

The LUFP7 ABC-PDP-SE also integrates naturally with Schneider Electric’s PowerLogic energy meters and Acti9 smart circuit breakers when deployed within an EcoStruxure Power architecture, providing a unified energy and process data layer that supports ISO 50001 energy management compliance. For safety-critical applications, the gateway coexists on the same Profibus segment as Schneider Electric Preventa XPS safety relays and Telemecanique OsiSense XU ultrasonic sensors, ensuring that safety interlocks and process automation share a common, high-speed communication backbone.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation — where drives, PLCs, sensors, and supervisory systems speak different communication languages, creating data silos that prevent plant-wide visibility and coordinated control. The LUFP7 ABC-PDP-SE directly addresses this problem by providing a standardized Profibus DP interface for ATV series drives, allowing them to participate fully in the plant’s existing fieldbus network without proprietary middleware or custom software development.

Remote monitoring is another critical capability enabled by this gateway. By exposing drive parameters — including speed reference, actual speed, motor current, power consumption, and fault codes — as standard Profibus DP process data objects, the LUFP7 ABC-PDP-SE allows SCADA systems to log historical data, generate alarm notifications, and support remote parameter adjustment from the control room or via VPN-connected engineering workstations. This eliminates the need for technicians to physically access drive panels in hazardous or hard-to-reach locations.

Production line transparency is further enhanced by the gateway’s support for acyclic Profibus DP-V1 services, which allow engineering tools such as Schneider Electric SoMove or Unity Pro to read and write drive configuration parameters over the network without interrupting cyclic process data exchange. This capability dramatically reduces commissioning time and simplifies parameter backup and restore procedures during planned maintenance windows.

System scalability is a key design consideration for growing manufacturing operations. The LUFP7 ABC-PDP-SE supports Profibus DP networks with up to 126 nodes per segment (with repeaters), making it straightforward to add new drives, remote I/O stations, or intelligent field devices as production capacity expands — all without redesigning the communication architecture.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed supported by the LUFP7 ABC-PDP-SE, and does it affect control loop latency?
The LUFP7 ABC-PDP-SE supports Profibus DP baud rates from 9.6 kbps up to 12 Mbps with automatic baud rate detection. At 12 Mbps, the maximum cable length per segment is 100 meters, while at 1.5 Mbps it extends to 200 meters. For most ATV drive control applications, a baud rate of 1.5 Mbps to 6 Mbps provides an optimal balance between network speed and cable distance, delivering control loop cycle times well under 5 ms — suitable for demanding motion control and process regulation tasks.

Q2: Is the LUFP7 ABC-PDP-SE compatible with third-party Profibus DP masters from Siemens, ABB, or Rockwell Automation?
Yes. The LUFP7 ABC-PDP-SE is fully compliant with the Profibus DP standard (EN 50170 / IEC 61158) and includes a standard GSD (General Station Description) file that can be imported into any compliant Profibus DP configuration tool, including Siemens STEP 7 / TIA Portal, ABB Automation Builder, and Rockwell Studio 5000. This makes it straightforward to integrate ATV series drives into multi-vendor automation environments without protocol conversion hardware.

Q3: How does the gateway maintain network stability in electrically noisy industrial environments?
The LUFP7 ABC-PDP-SE is designed to meet industrial EMC requirements (IEC 61800-3 Category C2) and supports standard Profibus DP cable shielding and termination practices. For installations in high-noise environments — such as near large motor starters, welding equipment, or variable speed drives — proper cable shielding, grounding at one end, and the use of Profibus-certified connectors with integrated termination resistors are recommended. The gateway’s auto-baud detection also ensures reliable network recovery after transient communication interruptions.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every LUFP7 ABC-PDP-SE unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including Profibus DP communication handshake validation, drive parameter read/write testing, and physical inspection for connector integrity and firmware version confirmation. The warranty terms confirmed during quotation covers manufacturing defects and communication failures under normal operating conditions. Units are shipped via DHL or FedEx Express with full tracking, and our technical team provides post-sale support for integration and commissioning queries.
