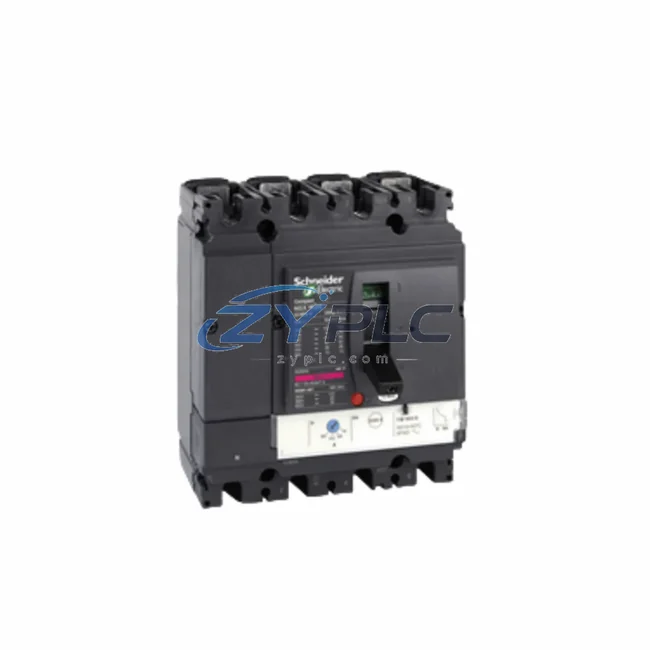

The Schneider Electric LV431830 — commercially designated as the NSX250N with TMD 250A 3P3D trip unit — is a compact molded-case circuit breaker engineered for high-efficiency power distribution in demanding industrial environments. Rated at 250A with a breaking capacity of 50kA at 415V AC, this device delivers precise overcurrent and short-circuit protection while minimizing energy losses across motor control centers, switchgear panels, and distribution boards. For facilities focused on reducing idle power draw, improving equipment uptime, and tightening production-line energy budgets, the LV431830 represents a foundational component in a well-optimized automation architecture.

Product Specification Table

System Compatibility and Application

In a modern industrial facility, energy efficiency is not achieved by a single device — it is the result of a coordinated system where every component contributes to reducing waste and improving throughput. The LV431830 NSX250N serves as the protective backbone of this architecture, safeguarding downstream equipment while maintaining minimal voltage drop under full-load conditions.

At the drive level, pairing the LV431830 with an ATV320 variable speed drive on motor feeder circuits allows the system to modulate motor speed in real time, eliminating the energy penalty of fixed-speed operation. The ATV320 communicates load feedback upstream, enabling the protection circuit to respond dynamically to transient overloads without nuisance tripping — a critical advantage in applications with variable torque demands such as conveyors, pumps, and compressors.

For broader energy visibility, the PM5560 power quality meter installed at the main distribution board captures harmonic distortion, power factor, and per-phase consumption data. When the LV431830 protects a feeder supplying high-inertia loads, the PM5560 data helps engineers identify whether the trip unit settings are optimally calibrated or whether reactive power compensation is needed to reduce apparent power draw.

On the control side, a Modicon M340 PLC coordinates the sequencing of motor starters, soft starters, and drive enable signals across the production line. The M340’s discrete I/O modules — such as the TM3DI16 input expansion — monitor auxiliary contacts on the LV431830, providing real-time circuit status to the SCADA layer without additional wiring overhead. This integration enables predictive maintenance workflows: if the breaker trips more frequently than baseline, the PLC logic flags the event for maintenance scheduling before a full production stoppage occurs.

At the field level, TM3DQ16T output modules drive contactor coils and pilot lights in the motor control center, while the LV431830 provides upstream short-circuit protection for the entire feeder group. For applications requiring communication-level diagnostics, the NSX250N can be equipped with a Micrologic trip unit and connected via Modbus to the plant network, feeding trip cause data directly into the maintenance planning dashboard alongside ATV320 drive efficiency reports.

Human-machine interface visibility is provided by an HMIGXU3512 touchscreen panel, which displays real-time energy consumption per production zone, breaker status, and drive operating points. Operators can identify energy-intensive production phases and adjust scheduling to shift high-load operations to off-peak tariff windows — a direct operational saving enabled by the transparency that the LV431830-anchored architecture provides.

Power supply stability for the control cabinet is maintained by an ABL8RPS24100 regulated 24VDC power supply, ensuring that PLC logic, I/O modules, and HMI panels remain operational even during upstream switching events. The LV431830’s fast magnetic trip response isolates faults before they propagate to the control power rail, protecting sensitive automation components from voltage sags caused by downstream short circuits.

For larger feeder applications within the same switchgear lineup, the NSX400N and NSX630N circuit breakers from the same Compact NSX family provide scalable protection at higher current ratings, maintaining consistent trip coordination across the entire distribution hierarchy. This selectivity — where the LV431830 trips first on a downstream fault without affecting the NSX400N upstream — is essential for minimizing the scope of production interruptions and preserving overall equipment effectiveness (OEE).

Maintenance and Replacement Notes

In automotive body shop applications, the LV431830 protects feeder circuits supplying robotic welding stations where inrush currents during electrode tip dressing cycles can reach six times the rated motor current. The TMD trip unit’s adjustable thermal element allows engineers to set the long-time protection precisely to the motor’s service factor, avoiding unnecessary trips while still protecting against sustained overloads that degrade winding insulation and increase motor replacement frequency.

In food and beverage processing lines, where hygiene-driven frequent start-stop cycles stress motor insulation and increase energy consumption per production unit, the LV431830 combined with an ATV320 soft-start profile reduces mechanical shock on couplings and gearboxes. Fewer mechanical failures mean fewer unplanned stoppages, and each avoided stoppage eliminates the energy cost of restarting a cold production line — typically 15–25% higher than steady-state consumption during the warm-up phase.

In water treatment facilities, the LV431830 protects pump motor feeders operating under variable head pressure conditions. When integrated with PM5560 power monitoring and Modicon M340 PLC control, the system can detect pump cavitation signatures through abnormal current draw patterns, triggering a controlled shutdown before impeller damage occurs. This predictive capability reduces maintenance costs and extends mean time between failures (MTBF) for critical pumping assets.

All units supplied by ZYPLC are sourced from authorized distribution channels, subject to incoming inspection, and covered by a warranty terms confirmed during quotation from the date of shipment. Each LV431830 is tested for continuity, insulation resistance, and trip function verification prior to dispatch, ensuring that the device performs to Schneider Electric’s published specifications from the moment it is installed in the panel.

Product Sourcing FAQ

Q1: How does the LV431830 NSX250N contribute to measurable operational stability on a production line?
The LV431830 reduces unplanned downtime through two mechanisms: its low contact resistance minimizes resistive losses in the feeder circuit, and its precise TMD trip calibration prevents nuisance trips that force costly production restarts. When paired with ATV320 variable speed drives and PM5560 power monitoring, the system provides the data and control authority needed to optimize motor loading and shift energy consumption to lower-tariff periods.

Q2: Is the LV431830 compatible with Schneider Electric’s Modbus-based maintenance planning systems?
The base NSX250N with TMD trip unit supports auxiliary contact and alarm contact outputs for PLC integration via TM3DI16 discrete input modules. For full Modbus RTU or Modbus TCP communication, the NSX250N can be upgraded with a Micrologic electronic trip unit and a communication interface module, enabling direct integration with Modicon M340 or EcoStruxure Power Monitoring Expert platforms.

Q3: What is the recommended replacement or upgrade path if the application current exceeds 250A?
For feeders requiring protection above 250A, the NSX400N (400A) and NSX630N (630A) from the same Compact NSX family provide a direct upgrade path with identical mounting footprints and compatible accessories. Trip coordination between the LV431830 and upstream NSX400N or NSX630N devices is pre-validated in Schneider Electric’s EcoStruxure Power Design selectivity tables, simplifying panel engineering.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
ZYPLC’s warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Prior to shipment, each LV431830 undergoes insulation resistance testing, contact resistance measurement, and manual trip function verification. Units that do not meet Schneider Electric’s published tolerances are quarantined and not dispatched. Warranty claims are processed within 5 business days of receipt of the returned unit.
