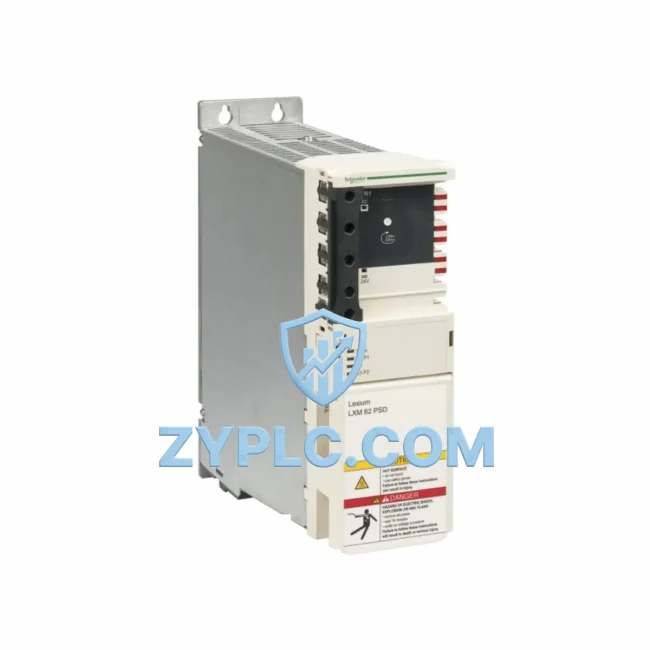

Schneider LXM62DD27D21000 Network Interface Lexium 62

Schneider LXM62DD27D21000: Industrial Data Link for Lexium 62 Smart Factory Networks

The Schneider Electric LXM62DD27D21000 is a high-performance EtherCAT servo drive from the Lexium 62 series, engineered to serve as a critical industrial network interface node within modern smart factory architectures. Designed for seamless integration across multi-protocol automation environments, this servo drive bridges the gap between field-level motion control and upper-level SCADA, MES, and cloud-based monitoring systems. With native EtherCAT communication, deterministic real-time data exchange, and robust industrial-grade construction, the LXM62DD27D21000 delivers the connectivity backbone that Industry 4.0 applications demand.

In today’s connected manufacturing environment, servo drives are no longer isolated motion components — they are active participants in the industrial data chain. The LXM62DD27D21000 transmits position feedback, torque data, fault diagnostics, and drive status in real time across the EtherCAT network, enabling plant engineers to monitor, tune, and diagnose axis performance without interrupting production. This continuous data flow supports predictive maintenance strategies, reduces unplanned downtime, and accelerates root-cause analysis when anomalies occur.

Network Communication Table

Connected Automation Data Flow

The LXM62DD27D21000 operates at the heart of a layered industrial communication architecture. At the field level, Schneider Electric BSH servo motors connect directly to the drive, delivering encoder feedback and torque telemetry into the EtherCAT network frame. The drive’s EtherCAT interface daisy-chains with other Lexium 62 axes — such as the LXM62DD30D21000 and LXM62DD18D21000 — enabling tightly synchronized multi-axis motion profiles with sub-millisecond jitter performance.

At the controller level, the Modicon M262 Logic Motion Controller acts as the EtherCAT master, orchestrating all axis commands, interpolation paths, and safety interlocks across the drive network. The M262 communicates upstream via Ethernet/IP or Modbus TCP to the plant’s SCADA layer, where Wonderware or Vijeo Citect HMI platforms visualize real-time drive states, alarm histories, and production KPIs. For facilities running Schneider’s EcoStruxure Machine architecture, the LXM62DD27D21000 integrates natively with EcoStruxure Machine Expert software, enabling online parameter tuning, oscilloscope capture, and firmware updates without disconnecting the drive from the network.

Remote I/O expansion is handled through TM3 distributed I/O modules connected to the Modicon M241 or M262 controllers, extending digital and analog signal collection from sensors, proximity switches, and pressure transducers across the production line. Variable frequency drives such as the Altivar ATV340 share the same EtherCAT segment in mixed-motion applications, allowing coordinated speed and torque control between conveyor drives and servo positioning axes. Panel-mounted HMI terminals like the HMIGXU3512 provide operators with direct access to drive diagnostics, jog commands, and fault reset functions at the machine level.

At the network infrastructure layer, industrial managed switches — including the ConneXium TCSESM083F23F0 — provide the EtherCAT and Ethernet backbone with redundant ring topology support, ensuring network continuity even during cable fault events. Edge gateways running EcoStruxure Edge Control aggregate drive data from multiple machine cells and forward structured datasets to cloud analytics platforms, enabling fleet-wide performance benchmarking and energy consumption analysis across the entire factory.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with legacy motion systems where servo drives function as standalone devices — no network visibility, no remote diagnostics, and no integration with plant-level data systems. The result is data isolation: engineers must physically walk to each drive cabinet to read fault codes, adjust parameters, or verify operational status. This approach is time-consuming, error-prone, and incompatible with the transparency demands of modern smart manufacturing.

The Schneider Electric LXM62DD27D21000 directly addresses these challenges. Its native EtherCAT interface eliminates the need for proprietary fieldbus adapters or protocol converters between the drive and the controller. All drive parameters — including following error, actual velocity, DC bus voltage, motor temperature, and active fault codes — are mapped to EtherCAT process data objects (PDOs) and accessible in real time by the PLC, SCADA, and HMI layers simultaneously.

For sites integrating legacy Modbus RTU or PROFIBUS equipment alongside newer EtherCAT nodes, Schneider’s BMXNOC0401 Ethernet communication module and compatible protocol gateways bridge the protocol gap, allowing the LXM62DD27D21000 to coexist within heterogeneous network environments without requiring a full system replacement. This phased integration approach protects existing capital investments while progressively expanding network transparency across the production floor.

Remote monitoring capabilities allow maintenance teams to receive alarm notifications, trend drive performance data, and initiate diagnostic routines from centralized control rooms or mobile devices — reducing mean time to repair (MTTR) and enabling condition-based maintenance schedules. Production line transparency improves as drive cycle data feeds into OEE dashboards, revealing bottlenecks, micro-stoppages, and energy inefficiencies that were previously invisible to plant management.

System scalability is built into the Lexium 62 platform architecture. Additional LXM62 axes can be added to the EtherCAT ring without reconfiguring the existing network segment, and the M262 controller supports up to 64 EtherCAT nodes per master — providing ample headroom for future production line expansions. All units supplied by ZYPLC undergo pre-shipment functional testing, verifying communication handshake, parameter integrity, and drive enable sequences before dispatch.

Industrial Connectivity FAQ

Q1: What is the minimum EtherCAT cycle time supported by the LXM62DD27D21000?
The LXM62DD27D21000 supports EtherCAT cycle times as low as 125 microseconds, making it suitable for high-speed multi-axis synchronization applications where deterministic real-time communication is critical. This performance level is maintained across the full daisy-chain topology without requiring dedicated switches or hubs.

Q2: Is the LXM62DD27D21000 compatible with non-Schneider EtherCAT masters?
Yes. The drive implements the standard CiA 402 (DS402) motion control profile over EtherCAT, which is supported by third-party EtherCAT masters from Beckhoff, Omron, and other vendors. However, full integration with EcoStruxure Machine Expert and Modicon M262 provides the deepest diagnostic and parameterization capabilities within the Schneider ecosystem.

Q3: How does the drive handle network interruptions or communication timeouts?
The LXM62DD27D21000 includes configurable watchdog timers that trigger a safe torque-off (STO) or controlled deceleration response upon EtherCAT communication loss, depending on the application safety configuration. Network status LEDs on the drive provide immediate visual indication of link state, and fault codes are logged internally for post-event analysis via EcoStruxure Machine Expert.

Q4: What warranty and testing standards apply to units supplied by ZYPLC?
All LXM62DD27D21000 units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment testing that verifies EtherCAT communication initialization, drive enable response, encoder feedback integrity, and parameter storage. Units are shipped via DHL or FedEx with full tracking, and RFQ responses are provided within 24 hours. Contact: +86 19859288691 | plc.sales@zyplc.com
