Schneider MC-4/11/03/400 Industrial Network Interface for PowerDrive Systems

Schneider MC-4/11/03/400 Industrial Network Interface for PowerDrive Systems: Precision Data Links for Smart Factory Automation

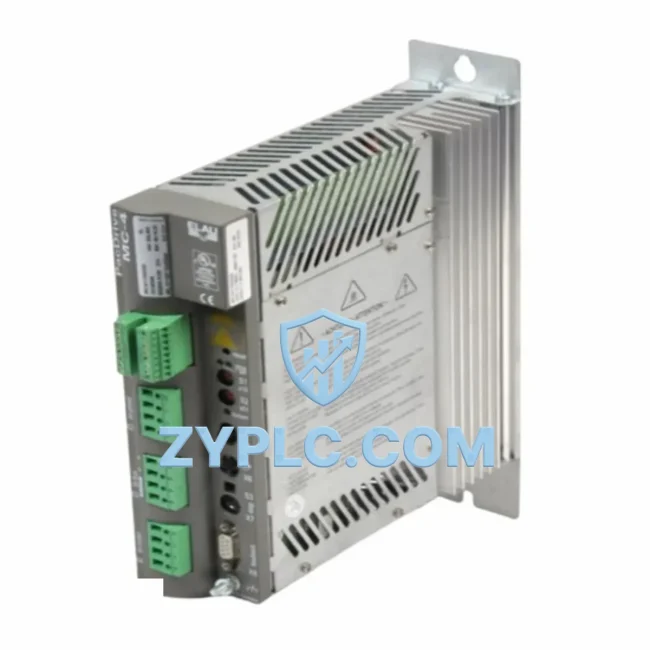

The Schneider Electric MC-4/11/03/400 is a high-performance Sercos III motion controller engineered for the PowerDrive series, purpose-built to serve as the central communication backbone between field-level devices and upper-layer control systems in modern industrial environments. As manufacturing sites evolve toward fully connected smart factories, the MC-4/11/03/400 delivers the deterministic, real-time data transmission that motion-critical applications demand — from servo axis synchronization to multi-drive coordination across complex production lines.

At its core, the MC-4/11/03/400 leverages the Sercos III (Serial Real-time Communication System) protocol — an Ethernet-based open standard specifically designed for motion control and drive communication. Sercos III enables isochronous, cycle-time-precise data exchange between the controller and connected drives, eliminating the jitter and latency that plague conventional fieldbus architectures. This makes the MC-4/11/03/400 an ideal network interface node for applications where microsecond-level synchronization between axes is non-negotiable.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory architecture, the MC-4/11/03/400 sits at the intersection of field devices and supervisory systems, orchestrating data flow across every layer of the automation pyramid. The data journey begins at the sensor and actuator level: proximity sensors, encoders, and torque transducers feed real-time position and velocity signals into the Sercos III ring. The MC-4/11/03/400 processes these signals with deterministic cycle times — typically as low as 31.25 µs — and distributes synchronized command data to connected Lexium 32 servo drives and ATV320 variable frequency drives operating within the same PowerDrive network segment.

Moving up the control hierarchy, the MC-4/11/03/400 interfaces directly with Modicon M340 and Modicon M580 PLCs via the Sercos III master port, enabling seamless program execution and axis parameter management from the PLC’s motion function blocks. The controller’s network stack supports transparent data tunneling, allowing the Modicon PLC to read encoder feedback, drive fault registers, and thermal status from every node on the Sercos III ring without additional protocol conversion hardware.

For sites running mixed-protocol environments — where legacy Modbus RTU devices coexist with modern Ethernet-based systems — the MC-4/11/03/400 can be paired with a Moxa MB3480 or similar Modbus-to-Sercos gateway to bridge older field instruments into the real-time network. This eliminates data silos caused by protocol fragmentation and allows SCADA platforms such as Wonderware System Platform or Schneider Electric’s EcoStruxure Operator Advisor to aggregate live drive data, axis positions, and fault histories into unified dashboards.

At the HMI layer, Magelis GTU panels and Vijeo Designer-configured terminals connect to the same Ethernet backbone, pulling real-time axis status, speed references, and alarm states directly from the MC-4/11/03/400’s data objects. Operators gain instant visibility into production throughput, cycle counts, and drive health — all without polling delays. When an axis fault occurs, the controller’s built-in diagnostic buffer captures the event log with microsecond timestamps, enabling maintenance teams to perform root-cause analysis remotely via EcoStruxure Machine Advisor or equivalent edge gateway platforms.

For distributed I/O expansion, the MC-4/11/03/400 supports integration with Advantys STB remote I/O islands, extending digital and analog I/O capacity across the production floor without adding controller hardware. Power distribution for the Sercos III ring nodes is typically managed through Phaseo ABL8 24VDC power supplies, ensuring stable bus voltage even under dynamic load conditions caused by simultaneous multi-axis acceleration events.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A typical production site may run Sercos III on its servo axes, Modbus TCP on its energy meters, PROFINET on its packaging line, and CANopen on its older conveyor drives — creating islands of data that cannot be easily unified. The MC-4/11/03/400 addresses this directly through its role as a Sercos III master controller: by centralizing motion data on a single, deterministic network, it reduces the number of protocol boundaries that data must cross before reaching the SCADA or MES layer.

Remote monitoring is another area where the MC-4/11/03/400 delivers measurable value. Traditional motion controllers required on-site access for parameter changes and fault diagnosis. With Sercos III’s built-in IP tunneling capability, the MC-4/11/03/400 exposes its drive network to standard Ethernet infrastructure, enabling remote engineers to connect via VPN and access drive parameters, oscilloscope traces, and alarm logs without dispatching field technicians. This capability is particularly valuable for multi-site manufacturers managing geographically distributed production lines.

Production line transparency — the ability to see real-time OEE metrics, axis utilization rates, and predictive maintenance indicators — is increasingly a requirement for Industry 4.0 compliance. The MC-4/11/03/400 supports this by providing structured data objects that can be consumed by edge computing platforms and forwarded to cloud-based analytics services. When combined with Schneider Electric’s EcoStruxure architecture, the controller becomes a data source node in a plant-wide digital twin, enabling simulation-based optimization of motion profiles and energy consumption.

System scalability is built into the Sercos III topology: the MC-4/11/03/400 supports ring configurations with up to 511 slave nodes, meaning a single controller can manage an entire production cell’s worth of drives, I/O modules, and smart sensors without architectural redesign. As production capacity grows, additional Lexium servo drives or ATV variable speed drives can be added to the ring with minimal configuration effort.

Industrial Connectivity FAQ

Q1: What is the communication latency of the MC-4/11/03/400 on a Sercos III network?
The MC-4/11/03/400 supports Sercos III cycle times as low as 31.25 µs, delivering deterministic, jitter-free communication suitable for high-speed multi-axis synchronization. Network latency is bounded and predictable, making it appropriate for applications requiring microsecond-level axis coordination.

Q2: Is the MC-4/11/03/400 compatible with non-Schneider drives and controllers?
Yes. Sercos III is an open IEC 61491-compliant standard, and the MC-4/11/03/400 can communicate with any Sercos III-certified slave device from third-party manufacturers. For integration with Modbus, PROFINET, or EtherNet/IP devices, a protocol gateway module is recommended to bridge the network boundaries.

Q3: How is network stability ensured in ring topology configurations?
Sercos III ring topology provides built-in redundancy: if a cable break occurs at any point in the ring, the network automatically reconfigures to line topology within one communication cycle, maintaining uninterrupted data flow to all connected nodes. The MC-4/11/03/400 supports this hot-plug recovery natively without requiring controller restart.

Q4: What pre-shipment testing and warranty coverage is provided?
Every MC-4/11/03/400 unit undergoes functional communication testing prior to shipment, verifying Sercos III link establishment, parameter read/write operations, and drive synchronization. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for same-week dispatch via DHL or FedEx with full tracking.
