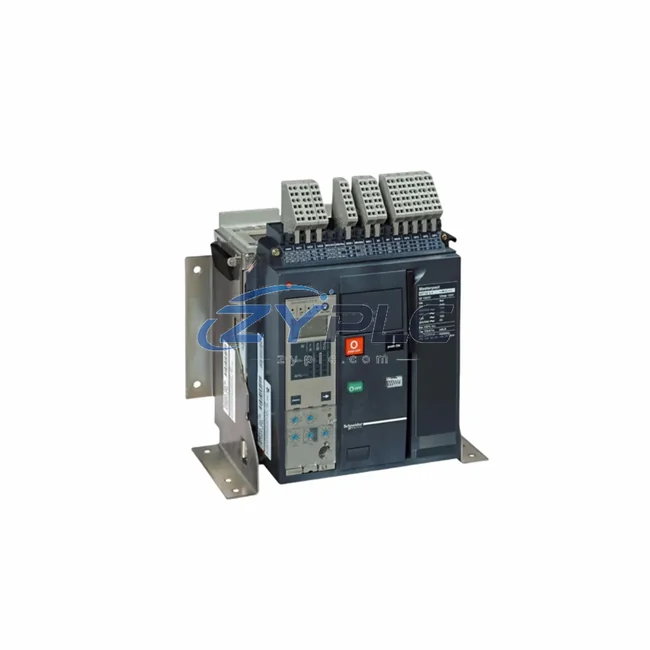

Schneider MT06N1 ACB for MT Automation

Schneider MT06N1 ACB for MT Automation

The Schneider Electric MT06N1 is a high-performance air circuit breaker engineered for industrial facilities where energy efficiency, equipment uptime, and precise power management are mission-critical. As part of Schneider’s MT Series, the MT06N1 delivers reliable overcurrent and short-circuit protection while enabling plant engineers to reduce unnecessary energy dissipation across distribution panels, motor control centers, and main incomer switchgear. In modern manufacturing environments where uptime and replacement lead time matter, deploying the right protective device at the right point in the power chain is the first step toward measurable operational stability.

Product Specification Table

System Compatibility and Application

The MT06N1 does not operate in isolation — its true value emerges when integrated into a coordinated industrial automation system. In a typical production facility, the MT06N1 serves as the main incomer or feeder breaker protecting downstream motor control and drive systems. When paired with a Schneider Electric Masterpact MTZ series intelligent air circuit breaker at the main switchboard level, the MT06N1 provides selective coordination that prevents nuisance tripping and ensures only the faulted segment is isolated, keeping the rest of the line running and avoiding costly full-plant shutdowns.

On the motor control side, the MT06N1 works in conjunction with GV2ME manual motor starters and TeSys D contactors to protect individual motor feeders. These devices together form a complete motor protection chain that limits inrush current damage and reduces thermal stress on windings — directly extending motor service life and cutting replacement costs. For variable-speed applications, the MT06N1 feeds power to ATV320 variable speed drives, which regulate motor speed to match actual process demand rather than running at full speed continuously. This alone can help restore stable operation when a compatible replacement is required.

Energy visibility is equally important. The Schneider PM5560 power meter, installed downstream of the MT06N1, provides real-time monitoring of active power, reactive power, harmonics, and power factor. This data feeds into the EcoStruxure Power Monitoring Expert platform, giving energy managers a granular view of consumption patterns at the circuit level. When anomalies are detected — such as rising current draw indicating a failing bearing or a degraded insulation condition — maintenance teams can act before a fault occurs, shifting from reactive to predictive maintenance.

On the control and logic side, the TM241 Modicon M241 PLC coordinates protection relay signals, drive status feedback, and energy meter data into a unified control loop. The BMXNOC0401 Ethernet communication module bridges the PLC to the plant SCADA system via Modbus TCP, ensuring that the MT06N1’s trip status and load current data are visible at the supervisory level in real time. For operator interaction, a Harmony GTUX HMI panel mounted on the switchgear door gives floor technicians immediate access to breaker status, load trends, and alarm history without requiring remote login.

Power supply reliability for the control circuits is maintained by an ABL8 regulated SMPS power supply, which ensures stable 24 VDC to the PLC, I/O modules, and communication interfaces even during upstream voltage fluctuations. The combination of the MT06N1’s robust protection, the ATV320’s drive efficiency, the PM5560’s metering accuracy, and the M241’s control intelligence creates a closed-loop maintenance planning system that continuously adapts to production conditions.

Maintenance and Replacement Notes

In real production environments, unplanned downtime and unplanned downtime share a common root cause: inadequate protection and poor load visibility. The MT06N1 addresses both. Its precise overcurrent trip characteristics mean that transient overloads — such as motor starting surges — do not cause nuisance trips, while genuine fault conditions are cleared within milliseconds, preventing damage to downstream equipment and reducing repair costs.

For facilities running multi-shift operations, the MT06N1’s low contact resistance design minimizes I²R losses across the breaker itself, contributing to lower heat generation in the switchgear cabinet and reducing the cooling load on panel air conditioning systems. Over a full year of operation, these incremental savings accumulate into measurable reductions in facility energy bills.

In lines where production rhythm (takt time) is critical, the MT06N1’s selective coordination with downstream NSX250 molded case circuit breakers ensures that a fault on one machine does not cascade into a line-wide shutdown. Operators can isolate the affected station, clear the fault, and resume production on the remaining stations within minutes rather than hours. This directly improves Overall Equipment Effectiveness (OEE) by reducing unplanned downtime as a percentage of total available production time.

For facilities pursuing ISO 50001 maintenance planning certification, the MT06N1 — as part of a fully metered and monitored distribution system — provides the circuit-level data granularity required to establish energy baselines, set reduction targets, and demonstrate continuous improvement. Combined with the PM5560 power meter and EcoStruxure maintenance planning software, the MT06N1 becomes a data source in the facility’s energy information system, not just a protective device.

All units are sourced from authorized supply channels, undergo pre-shipment functional testing, and are backed by a warranty terms confirmed during quotation. Stock is maintained for prompt dispatch to minimize procurement lead times for MRO and project requirements.

Product Sourcing FAQ

Q1: How does the MT06N1 contribute to reducing factory operating load?
The MT06N1 minimizes resistive losses through low-resistance contacts and enables selective coordination that prevents full-plant shutdowns from localized faults. When integrated with variable speed drives such as the ATV320 and monitored via the PM5560 power meter, it forms part of a system that actively reduces unnecessary energy draw across motor and distribution circuits.

Q2: Is the MT06N1 compatible with existing Schneider Electric switchgear and control systems?
Yes. The MT06N1 is designed for integration within Schneider Electric’s MT Series switchgear ecosystem and is compatible with Masterpact MTZ upstream breakers, NSX250 downstream MCCBs, TeSys motor starters, and Modicon PLC-based control systems. It supports standard Modbus RTU communication for condition monitoring integration.

Q3: What is the recommended replacement or upgrade path for aging ACBs in this class?
For facilities replacing legacy air circuit breakers, the MT06N1 offers a direct upgrade with improved breaking performance and lower contact resistance. Where intelligent monitoring is required, pairing with the Masterpact MTZ with embedded metering provides enhanced energy data without adding external meters. Consult your system integrator for selective coordination verification before replacement.

Q4: What does the warranty terms confirmed during quotation cover and what is the pre-shipment testing process?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment testing including insulation resistance checks, contact resistance measurement, and trip function verification to ensure it meets specification before dispatch. Warranty claims are processed through our technical support team with documented test records available upon request.
