Schneider MT08N1 Circuit Breaker for Masterpact MT

Schneider MT08N1 Circuit Breaker for Masterpact MT: Control System and Upstream–Downstream Coordination

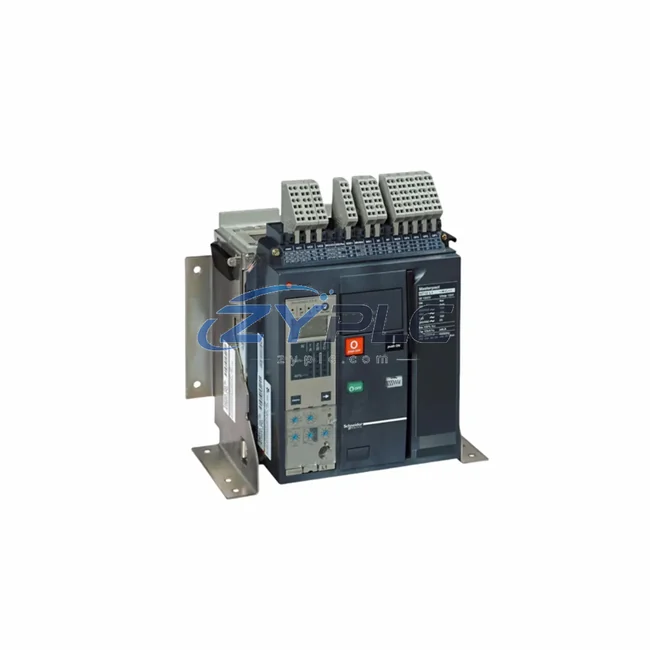

The Schneider Electric MT08N1 is an 800A air circuit breaker from the Masterpact MT series, engineered for deployment within structured low-voltage power distribution and industrial control architectures. Rather than functioning as a standalone switching device, the MT08N1 is designed to serve as a critical node within a layered automation and power management system — coordinating upstream supply integrity, downstream load protection, and real-time communication with supervisory control platforms. Its role spans the power layer, control layer, and communication layer simultaneously, making it a foundational component in any serious industrial electrical infrastructure.

In modern industrial facilities — whether in manufacturing, petrochemical processing, water treatment, mining, metallurgy, or power generation — the reliability of the main incomer or bus-tie circuit breaker directly determines the availability of the entire downstream control system. The MT08N1 addresses this requirement through its robust mechanical design, arc-quenching technology, and compatibility with the Micrologic trip unit family, enabling precise overcurrent, earth fault, and maintenance planning functions that integrate seamlessly with SCADA and building management systems.

Product Specification Table

System Compatibility Notes

The MT08N1 achieves its full value when integrated within a coordinated control system architecture rather than used in isolation. At the power layer, it typically serves as the main incomer breaker feeding a main distribution board (MDB), with downstream feeders protected by Schneider NSX250F or NSX400F moulded case circuit breakers. The selective coordination between the MT08N1 and these downstream devices — achieved through the Micrologic 5.0A trip unit’s zone-selective interlocking (ZSI) capability — ensures that only the faulted circuit is isolated, preserving continuity of supply to healthy loads.

At the control layer, the MT08N1 interfaces with the facility’s PLC or DCS through its Modbus RTU communication port, enabling real-time monitoring of load current, energy consumption, trip cause logging, and remote open/close commands. In Schneider-based automation environments, this data is typically aggregated by a Modicon M340 or Modicon M580 PLC, which also manages motor starters, variable speed drives, and process I/O modules. The MT08N1’s energy metering data feeds directly into EcoStruxure Power Monitoring Expert (PME) or EcoStruxure Building Operation (EBO) platforms, providing operators with a unified view of power quality and distribution health.

For redundancy-critical applications — such as data centers, hospital power systems, or continuous process plants — the MT08N1 is commonly deployed in a main-tie-main (MTM) configuration alongside a second Masterpact MT unit (such as the MT12N1 or MT16N1 for higher-rated feeders) and an automatic transfer switch controller. The MN 48VDC undervoltage release and XF 400VAC closing coil accessories enable automated source transfer sequences controlled by the facility’s bus-tie logic, ensuring sub-second switchover times that protect sensitive process equipment.

At the human-machine interface layer, operators interact with the MT08N1’s status and metering data through Schneider Magelis HMI panels or web-based dashboards served by the EcoStruxure architecture. The MCH motor mechanism accessory allows motorized remote racking of the withdrawable version, eliminating the need for personnel to enter energized switchgear compartments during switching operations — a significant safety and maintenance efficiency improvement in high-availability facilities.

Terminal and wiring infrastructure within the switchgear panel is typically organized using Schneider Linergy busbar systems and Acti9 terminal blocks, ensuring clean signal segregation between power conductors and control wiring. This structured approach to panel design reduces commissioning time, simplifies fault-finding during maintenance, and supports future expansion without rewiring.

Industrial Application Notes

Manufacturing and Assembly Lines: In automotive or electronics manufacturing facilities, the MT08N1 protects the main incomer feeding production line distribution boards. Its energy metering capability supports OEE (Overall Equipment Effectiveness) analysis by correlating power consumption data with production output, enabling energy-per-unit calculations that drive continuous improvement programs.

Power Generation and Utilities: In power plant auxiliary systems or utility substations, the MT08N1 serves as the generator incomer or bus-coupler breaker. Its IEC 61850 compatibility (via communication gateway) allows integration with substation automation systems (SAS), supporting GOOSE messaging for fast protection tripping and inter-bay coordination.

Petrochemical and Oil & Gas: In hazardous area facilities, the MT08N1 is installed in pressurized or purged switchgear enclosures feeding motor control centers (MCCs) for pumps, compressors, and agitators. Its zone-selective interlocking capability is particularly valuable in these environments, where fault isolation speed directly impacts process safety and environmental compliance.

Water and Wastewater Treatment: Municipal water treatment plants rely on the MT08N1 to protect main distribution boards feeding pump stations, aeration blowers, and UV disinfection systems. The breaker’s remote monitoring capability allows utility operators to track load trends and schedule preventive maintenance without requiring on-site inspection of energized equipment.

Mining and Metallurgy: In underground mining or surface processing facilities, the MT08N1 withstands the vibration, dust, and humidity challenges of these environments while providing reliable protection for high-power drives, crushers, and conveyor systems. Its withdrawable design simplifies replacement during planned maintenance shutdowns, minimizing production downtime.

Product Compatibility FAQ

Q1: Is the MT08N1 compatible with Schneider’s EcoStruxure architecture for remote monitoring and maintenance planning?
Yes. The MT08N1, when equipped with a Micrologic 5.0A or 6.0A trip unit and a Modbus communication module, integrates directly with EcoStruxure Power Monitoring Expert (PME) and EcoStruxure Power Automation System (EPAS). This enables real-time energy dashboards, alarm management, and historical trend analysis without additional signal conditioning hardware. For IEC 61850 environments, a protocol gateway bridges Modbus data to GOOSE and MMS messaging.

Q2: How does the MT08N1 support selective coordination in a multi-tier distribution architecture?
The MT08N1 supports zone-selective interlocking (ZSI) through its Micrologic trip unit, which communicates with downstream MCCB trip units (such as those in NSX or Compact NS series breakers) via a dedicated ZSI wiring loop. When a downstream fault is detected, the ZSI signal instructs the MT08N1 to maintain its normal time-delay setting rather than accelerating its trip, allowing the downstream device to clear the fault first. This preserves supply continuity to all healthy circuits and is essential for achieving Type 2 coordination in industrial distribution systems.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance of the MT08N1?
ZYPLC’s warranty terms confirmed during quotation covers the MT08N1 against manufacturing defects, functional failures under normal operating conditions, and premature component degradation. All units are tested prior to dispatch using calibrated test equipment to verify trip unit calibration, mechanical operation, and auxiliary contact function. For long-term maintenance support, ZYPLC supports RFQ sourcing for Masterpact MT series accessories including replacement trip units, closing coils, motor mechanisms, and auxiliary contact blocks, enabling rapid field replacement without extended lead times. Our technical team provides pre-sales architecture consultation and post-sales commissioning guidance to ensure correct system integration.
