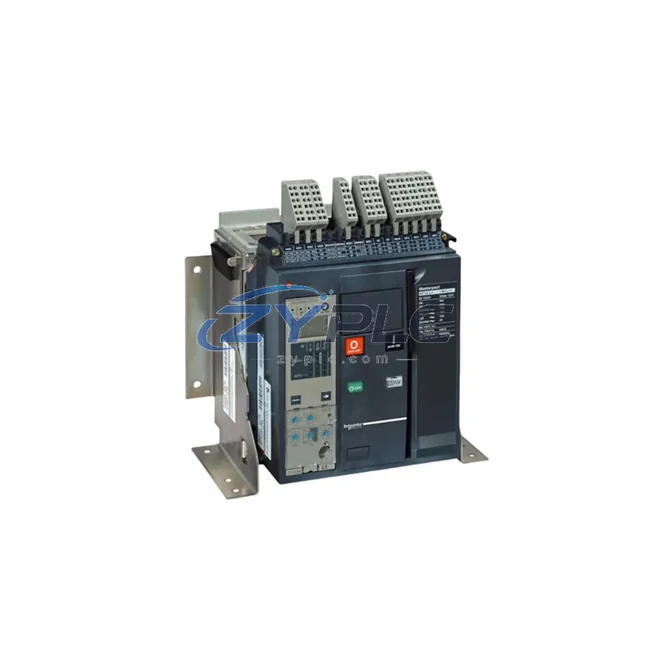

Schneider MT10N1 Industrial Network Interface for Compact NS Systems

Schneider MT10N1 Industrial Network Interface for Compact NS Systems: Powering the Smart Factory Data Link

In modern industrial environments, seamless data connectivity between field devices and upper-level control systems is no longer optional — it is the foundation of operational excellence. The Schneider MT10N1, part of the renowned Compact NS Series, delivers robust industrial network communication capabilities that bridge field-level protection with real-time plant intelligence. Designed for demanding smart factory applications, the MT10N1 enables transparent data exchange across PLC controllers, remote I/O modules, HMI panels, SCADA platforms, variable frequency drives, and edge computing gateways — forming a unified, high-availability industrial network backbone.

Compatibility & Integration Notes

Connected Automation Data Flow

The MT10N1 sits at the heart of a layered industrial communication architecture. At the field level, it interfaces directly with Schneider TeSys D contactors and Compact NS100/160/250 series breakers to aggregate protection status and energy data. This information is transmitted via Modbus RTU over RS-485 to a Schneider Modicon M340 PLC or Modicon M580 ePAC, where ladder logic processes trip conditions and load-shedding commands in real time.

Upstream, the PLC communicates over Modbus TCP/IP Ethernet to a Schneider EcoStruxure Power Monitoring Expert (PME) SCADA server, enabling plant-wide energy dashboards and alarm management. Simultaneously, the MT10N1’s network data feeds into Schneider Magelis GTU HMI panels installed at motor control centers, giving operators live breaker status, trip history, and load current readings without leaving the production floor.

For distributed plant topologies, the MT10N1 integrates with Schneider ConneXium managed industrial Ethernet switches to maintain deterministic network latency across ring or star topologies. Remote I/O expansion is handled through Schneider Advantys STB distributed I/O modules, which relay digital status signals from auxiliary contacts back to the main control network. In drive-intensive applications, the MT10N1 works alongside Schneider Altivar ATV630 variable frequency drives, synchronizing motor protection data with breaker trip logic to prevent cascade failures during overload events.

At the edge, an EcoStruxure Machine Advisor edge gateway collects MT10N1 network data for cloud-based predictive maintenance analytics, enabling remote diagnostics and condition monitoring without on-site intervention. This end-to-end data chain — from signal acquisition at the breaker level through protocol conversion, Ethernet transmission, SCADA visualization, and cloud analytics — demonstrates the MT10N1’s central role in a fully connected smart factory architecture.

Solving Data Isolation in Industrial Sites

Legacy power distribution systems often suffer from protocol fragmentation: breakers that cannot communicate, energy meters that speak proprietary formats, and PLCs that cannot access real-time protection data. The result is data isolation — operators respond to faults reactively, production lines lose transparency, and maintenance teams rely on manual inspection rather than predictive insight.

The Schneider MT10N1 directly addresses these challenges. Its native Modbus RTU and Modbus TCP support eliminates the need for third-party protocol converters in most installations, reducing network complexity and single points of failure. For legacy Profibus or DeviceNet environments, a Schneider EGX300 Ethernet gateway bridges the MT10N1 into existing fieldbus networks without requiring PLC reprogramming.

Remote monitoring is transformed: plant managers can access live breaker status, energy consumption, and trip logs from any SCADA workstation or mobile HMI, regardless of physical location. Production line transparency improves as the MT10N1 feeds real-time load data into MES and ERP systems, enabling accurate OEE calculations and energy cost allocation by production cell. System expansion is equally straightforward — additional Compact NS units can be daisy-chained on the RS-485 bus, scaling the network without rewiring or adding new communication infrastructure.

Industrial Connectivity FAQ

Q1: What is the communication latency of the MT10N1 over Modbus TCP?
A: Under normal network conditions, Modbus TCP polling cycles for the MT10N1 are typically 10–50 ms, suitable for real-time SCADA monitoring and alarm response. For time-critical protection functions, the breaker’s hardware trip mechanism operates independently of the communication network, ensuring safety is never dependent on network availability.

Q2: Is the MT10N1 compatible with third-party SCADA and HMI systems?
A: Yes. The MT10N1 uses standard Modbus RTU and Modbus TCP protocols, which are natively supported by all major SCADA platforms including Wonderware, iFIX, Citect, and Ignition, as well as HMI systems from Siemens, Mitsubishi, and Proface. No proprietary drivers are required.

Q3: How does the MT10N1 support network stability in harsh industrial environments?
A: The Compact NS series is engineered for industrial-grade EMC immunity, wide operating temperature ranges, and vibration resistance. The RS-485 interface supports cable runs up to 1,200 meters with proper termination, and the Ethernet port supports auto-negotiation and auto-MDI/MDIX for plug-and-play network integration.

Q4: What does the warranty terms confirmed during quotation cover, and is pre-shipment testing performed?
A: Every MT10N1 unit supplied by ZYPLC undergoes pre-shipment functional testing covering communication interface verification, trip mechanism operation, and network protocol handshake confirmation. The warranty terms confirmed during quotation covers manufacturing defects and communication module failures under normal operating conditions. Expedited replacement support is available for critical production applications.
