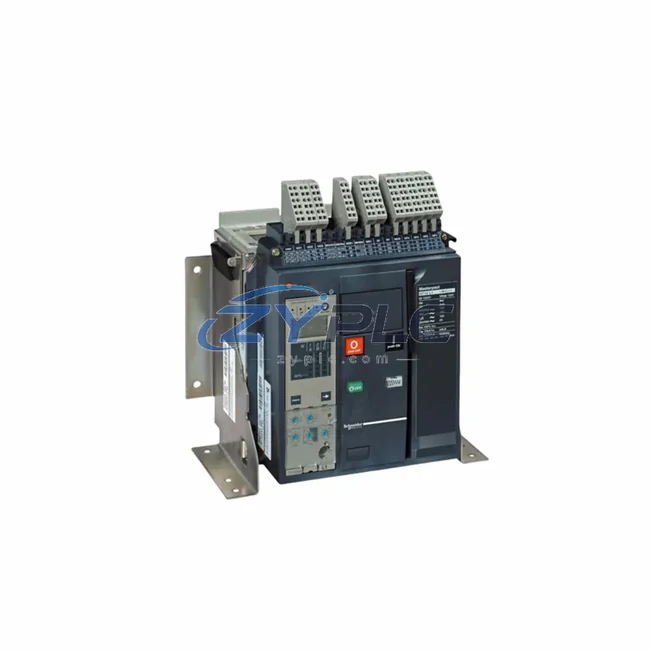

Schneider MT32N1 Air Circuit Breaker for Compact NS Systems

Schneider MT32N1: Industrial Data Link and Smart Factory Connectivity for Compact NS Systems

The Schneider MT32N1 is a precision-engineered air circuit breaker from the renowned Compact NS Series, designed to serve as a critical node in the industrial power distribution and network communication architecture of modern smart factories. Far beyond simple overcurrent protection, the MT32N1 integrates seamlessly into the layered data infrastructure that connects field devices, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, variable frequency drives, sensors, and supervisory systems — forming the backbone of a transparent, real-time industrial network.

In today’s intelligent manufacturing environments, every circuit breaker is not merely a protective device — it is a data source. The MT32N1, when deployed within a Schneider Compact NS switchgear assembly, participates actively in the signal acquisition chain. Current readings, trip events, load status, and fault diagnostics are captured at the device level and transmitted upstream through compatible communication gateways and fieldbus interfaces, enabling plant engineers to monitor power quality and protection status from a centralized SCADA or energy management system without physical intervention on the panel floor.

Compatibility & Integration Notes

Connected Automation Data Flow

The MT32N1 operates at the heart of a layered industrial automation architecture. At the field level, power distribution panels equipped with the MT32N1 feed critical loads including Schneider ATV630 variable frequency drives controlling conveyor motors and pump systems. The drive’s operational data — speed reference, output current, fault codes — flows back through the network alongside the MT32N1’s own protection status, creating a unified real-time picture of the production line’s electrical health.

Upstream, a Schneider Modicon M340 PLC (e.g., BMX P34 2020) acts as the primary logic controller, receiving digital inputs from the MT32N1’s auxiliary contacts and communicating over Modbus TCP via the BMXNOC0401 Ethernet communication module. This allows the PLC to execute protective interlocking logic — for example, automatically isolating a feeder circuit upon detecting an upstream fault condition reported by the MT32N1, without requiring operator intervention.

Remote I/O expansion is handled by Schneider TM3 remote I/O modules connected to the TM241 controller over a CANopen or Ethernet/IP segment. These modules aggregate discrete signals from proximity sensors, temperature transmitters, and pressure transducers distributed across the production floor, feeding real-time process data into the same network fabric that carries the MT32N1’s protection telemetry. The result is a single, coherent data stream flowing from the physical layer all the way to the supervisory level.

At the HMI layer, a Schneider Magelis HMIGXU3512 panel displays live circuit status, load current, and trip history sourced directly from the MT32N1 via the communication gateway. Operators can acknowledge alarms, review event logs, and initiate remote reset commands from the touchscreen interface — eliminating the need to open the switchgear cabinet for routine status checks. This capability is especially valuable in hazardous or hard-to-access installation environments.

For SCADA integration, the Schneider EGX300 Ethernet Gateway bridges the RS-485 Modbus RTU network — where the MT32N1 and associated metering devices reside — to the plant’s Ethernet backbone. The EcoStruxure Power Monitoring Expert (PME) platform then aggregates energy consumption data, demand profiles, and protection event records from multiple MT32N1 units across the facility, enabling energy auditing, predictive maintenance scheduling, and regulatory compliance reporting from a single software interface.

Edge computing capabilities are extended through the Schneider EcoStruxure Machine Advisor edge gateway, which collects operational data from the MT32N1 and associated automation components, applies local analytics, and pushes summarized KPIs to cloud dashboards. This architecture supports remote diagnostics — allowing Schneider service engineers or plant maintenance teams to identify developing fault conditions, such as thermal overload trends or contact wear, before they result in unplanned downtime.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation. Older switchgear communicates over proprietary serial protocols, newer PLCs speak Ethernet/IP or Profinet, and energy meters use Modbus RTU — creating data silos that prevent plant managers from obtaining a unified operational view. The MT32N1, combined with Schneider’s communication ecosystem, directly addresses this challenge.

By deploying the MT32N1 with an optional IFM (Interface Module) and connecting it to the EGX100 or EGX300 gateway, legacy Modbus RTU devices are transparently bridged onto the plant’s Ethernet network. This protocol conversion layer eliminates the need for costly panel redesigns or PLC reprogramming — the existing control logic continues to operate unchanged while the MT32N1’s data becomes accessible to modern SCADA and MES platforms.

Production line transparency is achieved through continuous polling of the MT32N1’s metering registers — active power, reactive power, power factor, harmonic distortion — by the EcoStruxure PME platform. Anomalies trigger automated alarms delivered to maintenance personnel via email or SMS, enabling rapid response before a minor electrical issue escalates into a production stoppage. Remote monitoring also supports multi-site management, where a central engineering team can oversee the protection status of MT32N1 units installed across geographically distributed facilities from a single dashboard.

System scalability is a core design principle of the Compact NS architecture. Additional MT32N1 units can be added to the Modbus network without disrupting existing communication segments, and the EGX300 gateway supports up to 255 Modbus devices on a single RS-485 bus. This makes the MT32N1 an ideal choice for phased factory expansion projects, where new production lines are progressively integrated into the existing automation and monitoring infrastructure.

All MT32N1 units supplied by ZYPLC undergo pre-shipment functional testing, including contact resistance measurement, trip characteristic verification, and communication module handshake confirmation where applicable. Each unit ships with full documentation and is covered by a warranty terms confirmed during quotation against manufacturing defects. Availability confirmed by RFQ inventory ensures short lead times, with global DHL/FedEx express delivery available to support urgent maintenance and project requirements.

Industrial Connectivity FAQ

Q1: Does the MT32N1 support real-time Modbus TCP communication for SCADA integration?
The MT32N1 supports Modbus RTU natively over RS-485 via an optional IFM communication module. For Modbus TCP or Ethernet-based SCADA integration, the Schneider EGX100 or EGX300 Ethernet Gateway is used to bridge the RS-485 segment to the plant Ethernet network, enabling seamless integration with EcoStruxure PME, Ignition SCADA, or any Modbus TCP-compatible supervisory platform with typical polling cycles of 100–500 ms.

Q2: Is the MT32N1 compatible with Schneider Modicon PLC systems and TM241 controllers?
Yes. The MT32N1’s auxiliary contacts and communication outputs are fully compatible with Schneider Modicon M340, M580, and TM241 controller families. Digital status signals connect directly to TM3 remote I/O modules, while Modbus RTU communication (via IFM module) integrates with BMXNOC0401 or SL1 serial communication modules on the Modicon platform, enabling closed-loop protection interlocking and automated fault response logic.

Q3: How does the MT32N1 contribute to network stability in high-load industrial environments?
The MT32N1 is rated for high short-circuit breaking capacity and features thermal-magnetic trip characteristics optimized for industrial load profiles, including motor starting currents and harmonic-rich environments. Its stable trip performance prevents nuisance tripping that could disrupt network communication infrastructure — particularly critical in facilities where PLC controllers, HMI panels, and communication gateways share the same protected distribution segment.

Q4: What warranty and testing standards apply to MT32N1 units supplied by ZYPLC?
All MT32N1 units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and functional performance. Pre-shipment testing includes mechanical operation verification, trip characteristic testing per IEC 60947-2, and communication module handshake testing where applicable. Units are sourced from authorized distribution channels and ship with original Schneider Electric documentation, CE/CCC certification records, and full traceability.
