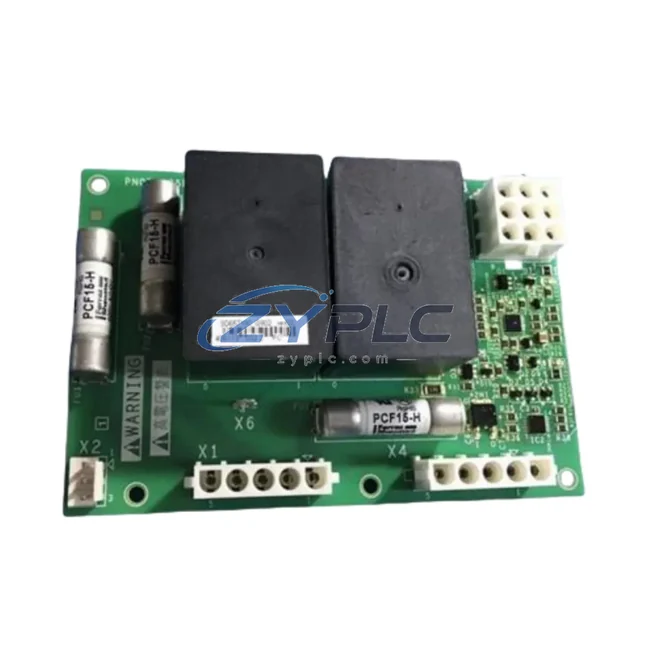

Schneider PN072546P702 VFD Control Board for ATV71 Systems

Schneider PN072546P702 Industrial Network Interface for ATV71 Systems: Enabling Real-Time Data Links Across Smart Factory Floors

In modern industrial environments where uptime, data transparency, and seamless device communication define operational excellence, the Schneider Electric PN072546P702 VFD control board stands as a critical node in the automation data chain. Designed specifically for the ATV71 series variable frequency drives, this control board governs the core communication and control logic that connects field-level motor assets to higher-level automation systems — including PLCs, SCADA platforms, HMI terminals, and remote monitoring infrastructure.

The PN072546P702 is not merely a replacement component. It is the intelligence layer of the ATV71 drive, managing signal acquisition from motor feedback sensors, executing speed and torque commands from upstream controllers, and relaying real-time operational data across the plant network. Whether integrated into a Modbus RTU backbone, a CANopen fieldbus ring, or an Ethernet-based industrial LAN, this board ensures that the ATV71 drive remains a fully communicating, fully visible node within the connected factory ecosystem.

Compatibility & Integration Notes

Connected Automation Data Flow

The PN072546P702 control board operates at the intersection of field devices and supervisory systems, making it indispensable in multi-layer industrial network architectures. In a typical smart factory deployment, the ATV71 drive — governed by this control board — receives speed reference signals from a Schneider Modicon M340 PLC or Modicon M580 PAC via Modbus TCP/IP. The board processes these commands and drives the motor with precision, while simultaneously feeding back real-time parameters — current draw, output frequency, fault codes, thermal status — to the upstream controller.

At the field level, analog and digital signals from Telemecanique XS-series inductive proximity sensors and encoder feedback modules are captured by the ATV71’s I/O terminals, processed by the PN072546P702 board, and forwarded upstream. In distributed architectures, the drive communicates with Schneider TM3 remote I/O modules or Advantech ADAM-6000 series remote I/O gateways, extending the data reach to areas where direct wiring is impractical.

For operator visibility, the PN072546P702-equipped ATV71 drive integrates seamlessly with Schneider Magelis HMIGTO series HMI panels, displaying live drive parameters, alarm histories, and energy consumption data. At the SCADA level, platforms such as Wonderware InTouch or Schneider EcoStruxure Operator Terminal Expert poll the drive via Modbus TCP/IP, enabling plant-wide visibility of motor performance across multiple production lines.

In more complex topologies, the ATV71 drive with PN072546P702 board connects through Moxa EDS-308 industrial Ethernet switches or Hirschmann RS20 managed switches, ensuring deterministic, low-latency data delivery across ring or star network topologies. For protocol bridging between legacy Modbus RTU devices and modern Ethernet infrastructure, Anybus X-gateway Modbus RTU to Modbus TCP/IP converters are commonly deployed alongside the ATV71, allowing the PN072546P702 to participate in both legacy and next-generation network environments.

Edge computing nodes — such as Schneider EcoStruxure Machine Advisor edge gateways — aggregate data from multiple ATV71 drives, enabling predictive maintenance analytics, energy benchmarking, and remote diagnostics without interrupting production cycles.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older production lines may rely on RS-485 Modbus RTU, while newer expansions demand Ethernet-based EtherNet/IP or PROFINET connectivity. The PN072546P702 control board, as the communication core of the ATV71 drive, addresses this challenge by supporting multiple protocol interfaces natively and through Schneider’s modular option card ecosystem.

Data silos — where drive operational data remains trapped at the device level and never reaches SCADA or MES systems — are eliminated when the PN072546P702 is properly configured within the plant network. Real-time parameters including motor speed, torque, power consumption, fault status, and thermal load are continuously published to the network, enabling operators and engineers to monitor, trend, and act on drive data from any connected workstation or mobile device.

Remote diagnostics become practical with the PN072546P702 in place. Maintenance engineers can interrogate the ATV71 drive’s fault log, parameter register, and I/O status remotely via SCADA or a dedicated drive commissioning tool such as Schneider SoMove software, reducing the need for on-site intervention and minimizing mean time to repair (MTTR). Alarm events are propagated instantly through the network to operator HMI panels and SCADA alarm management systems, ensuring that no fault goes unnoticed.

For production line transparency, the PN072546P702 enables the ATV71 drive to participate in energy monitoring programs, reporting consumption data to Schneider PowerLogic PM series power meters or EcoStruxure Energy Expert platforms. This data supports ISO 50001 energy management compliance and helps identify inefficient operating conditions before they escalate into failures.

System expansion is straightforward: additional ATV71 drives equipped with PN072546P702 boards can be added to the Modbus network by assigning unique node addresses, with no changes required to the existing network infrastructure. This scalability makes the ATV71 with PN072546P702 a future-proof choice for growing production facilities.

Industrial Connectivity FAQ

Q1: What communication protocols does the Schneider PN072546P702 support, and is it compatible with my existing PLC network?
The PN072546P702 control board supports Modbus RTU via RS-485 as its native fieldbus protocol, and Modbus TCP/IP connectivity is achievable through Schneider’s ATV71 Ethernet option cards. PROFIBUS DP and CANopen are supported via dedicated option modules. This makes the ATV71 drive compatible with Schneider Modicon PLCs, Siemens S7-series controllers, and most SCADA systems that support standard Modbus or Ethernet/IP communication.

Q2: How does the PN072546P702 ensure network stability in high-interference industrial environments?
The ATV71 control board is engineered to operate in electrically noisy industrial environments. The RS-485 interface provides differential signaling that rejects common-mode noise, and the board’s firmware includes communication watchdog timers that detect network dropouts and trigger safe-state responses — preventing uncontrolled motor behavior in the event of a communication fault. Proper cable shielding and grounding practices, combined with the board’s built-in noise immunity, ensure reliable data transmission even in proximity to high-power switching equipment.

Q3: Can the PN072546P702 be used for remote diagnostics and predictive maintenance?
Yes. When the ATV71 drive is connected to a SCADA or remote monitoring platform via the PN072546P702’s communication interface, maintenance engineers can remotely access the drive’s fault history, parameter registers, and real-time operational data. Integration with Schneider EcoStruxure Machine Advisor or third-party CMMS platforms enables predictive maintenance workflows based on drive operating hours, thermal trends, and fault frequency analysis.

Q4: What does the warranty terms confirmed during quotation cover, and how is the PN072546P702 tested before shipment?
Every PN072546P702 unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying communication interface integrity, power supply regulation, and control signal response. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped via DHL or FedEx Express with full tracking, and our technical team provides pre-sales compatibility consultation and post-sales support to ensure successful integration into your automation system.
