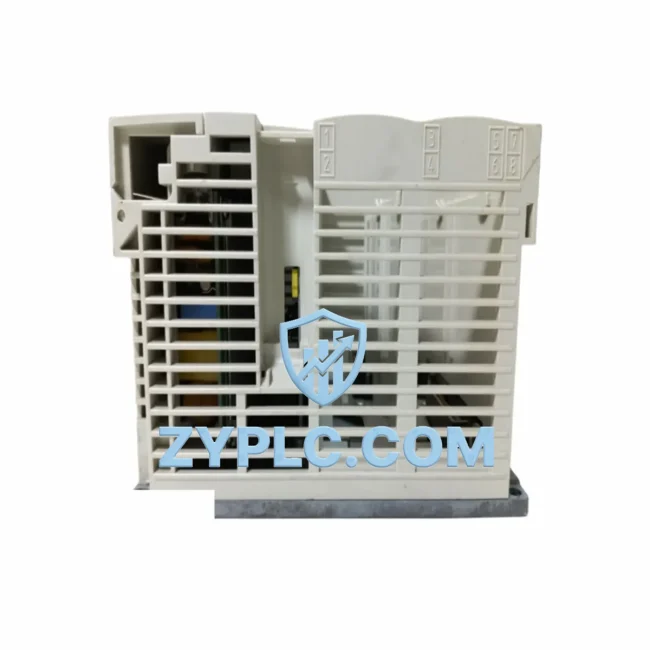

Schneider TSX3710001 Industrial Network Interface for TSX Micro Systems

Schneider TSX3710001: Industrial Data Link for TSX Micro Smart Factory Systems

The Schneider Electric TSX3710001 is a high-performance industrial network interface module engineered for seamless integration within the Modicon TSX Micro automation platform. Designed to serve as the critical communication bridge between field-level devices and upper-level control systems, the TSX3710001 enables reliable, real-time data exchange across Modbus RTU and Modbus TCP/IP networks — making it an indispensable component in modern smart factory architectures where data continuity, protocol consistency, and network stability are non-negotiable.

In industrial environments where PLCs, remote I/O modules, HMI panels, SCADA systems, variable frequency drives, and intelligent sensors must operate as a unified data ecosystem, the TSX3710001 delivers the connectivity backbone that eliminates communication gaps. Its robust design supports high-cycle polling rates, deterministic response times, and fault-tolerant network behavior — ensuring that production data flows uninterrupted from the sensor layer to the enterprise level.

Compatibility & Integration Notes

Connected Automation Data Flow

The TSX3710001 sits at the heart of a layered industrial communication architecture. At the field level, distributed sensors — including Telemecanique OsiSense inductive proximity sensors and Schneider Electric Harmony XB4 pushbutton stations — feed discrete and analog signals into the TSX Micro CPU rack. The TSX3710001 module then aggregates these signals and transmits structured Modbus frames upstream to the control layer.

Within the control layer, the TSX3710001 communicates directly with the Schneider TSX Micro CPU modules such as the TSX3722001 and TSX3710128, coordinating I/O scan cycles and ensuring that process variables are updated within deterministic time windows. For applications requiring expanded I/O capacity, the module interfaces with TSX remote I/O drop adapters and Advantys STB distributed I/O islands over Modbus Plus or Ethernet, extending the data collection perimeter across large plant floors without sacrificing cycle time.

At the supervisory level, the TSX3710001 bridges field data to Schneider Electric Vijeo Citect SCADA and Wonderware InTouch HMI platforms via Modbus TCP/IP gateways. Operators gain live visibility into machine states, production counters, alarm conditions, and energy consumption metrics — all sourced from the TSX Micro network managed by the TSX3710001. Integration with Schneider Electric EcoStruxure Plant architecture further enables edge analytics and predictive maintenance workflows, where data collected through the TSX3710001 is forwarded to cloud-based dashboards for trend analysis and KPI reporting.

For drive control applications, the TSX3710001 communicates with Schneider Electric Altivar ATV312 and ATV630 variable frequency drives over Modbus RTU, enabling remote speed reference, torque monitoring, and fault diagnostics without requiring dedicated fieldbus hardware. This reduces wiring complexity and allows a single TSX Micro network segment to manage both discrete I/O and drive parameters simultaneously.

Power quality monitoring is also supported through integration with Schneider Electric PowerLogic PM5000 series power meters, which report energy data back to the TSX Micro via Modbus, enabling real-time energy management and ISO 50001 compliance reporting directly from the factory floor network.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is protocol fragmentation — where older serial Modbus RTU devices cannot communicate natively with newer Ethernet-based SCADA or MES systems. The TSX3710001 resolves this by acting as a transparent protocol bridge, converting Modbus RTU traffic from field devices into Modbus TCP/IP frames that upper-level systems can consume without custom middleware or proprietary drivers.

Data silos — isolated islands of machine data that never reach the control room — are eliminated when the TSX3710001 is deployed as the network interface for TSX Micro racks. By centralizing communication through a single, standards-compliant module, plant engineers can achieve full production line transparency: every conveyor speed, every temperature setpoint, every alarm event is captured, timestamped, and made available to SCADA operators in real time.

Remote monitoring and diagnostics are equally strengthened. Maintenance teams can interrogate TSX Micro rack health, I/O module status, and communication error counters remotely via the TSX3710001’s Modbus diagnostic registers — reducing unplanned downtime and enabling condition-based maintenance strategies. For multi-site operations, the module’s Ethernet connectivity allows centralized IT/OT integration, where plant data is aggregated at the enterprise level for OEE analysis and production scheduling.

System scalability is another key advantage. As production lines expand, additional TSX Micro racks and remote I/O drops can be added to the Modbus network managed by the TSX3710001 without architectural redesign. The module’s multi-drop RS-485 capability supports up to 32 nodes per segment, while Ethernet variants extend this to virtually unlimited device counts through managed industrial switches.

Every TSX3710001 unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication loop verification, protocol handshake confirmation, and power-on self-test validation. Units are shipped with full documentation and are covered by a 12-month warranty, with in-stock availability ensuring rapid deployment for both planned upgrades and emergency replacement scenarios.

Industrial Connectivity FAQ

Q1: What is the communication latency of the TSX3710001 on a Modbus RTU network?
A: Under standard polling configurations with a 19,200 bps baud rate and a network of up to 16 nodes, the TSX3710001 achieves typical round-trip latencies of 5–20 ms per transaction. For time-critical applications, Modbus TCP/IP mode over 100 Mbps Ethernet reduces latency to sub-5 ms, making it suitable for high-frequency data acquisition in motion control and process monitoring applications.

Q2: Is the TSX3710001 compatible with third-party SCADA and HMI systems beyond Schneider Electric platforms?
A: Yes. Because the TSX3710001 uses the open Modbus protocol — the most widely supported industrial communication standard — it is natively compatible with any SCADA or HMI platform that includes a Modbus driver, including Ignition by Inductive Automation, Siemens WinCC, GE iFIX, and Rockwell FactoryTalk. No custom configuration or protocol converter is required for standard read/write operations.

Q3: How does the TSX3710001 handle network instability or communication interruptions?
A: The TSX3710001 incorporates configurable timeout and retry parameters within the TSX Micro programming environment (PL7 Pro / Unity Pro). In the event of a communication fault, the module generates a diagnostic bit in the PLC data table, triggering alarm routines in the SCADA system. Watchdog timers ensure that the CPU transitions to a safe state if communication is lost for a configurable duration, preventing uncontrolled machine behavior during network outages.

Q4: What does the 12-month warranty from ZYPLC cover, and what is the lead time for in-stock units?
A: The 12-month warranty covers manufacturing defects, communication failures, and hardware malfunctions under normal operating conditions. ZYPLC maintains in-stock inventory of the TSX3710001, with same-day or next-business-day dispatch available via DHL Express or FedEx International Priority. For bulk orders or project-based procurement, dedicated account support and volume pricing are available upon request.
