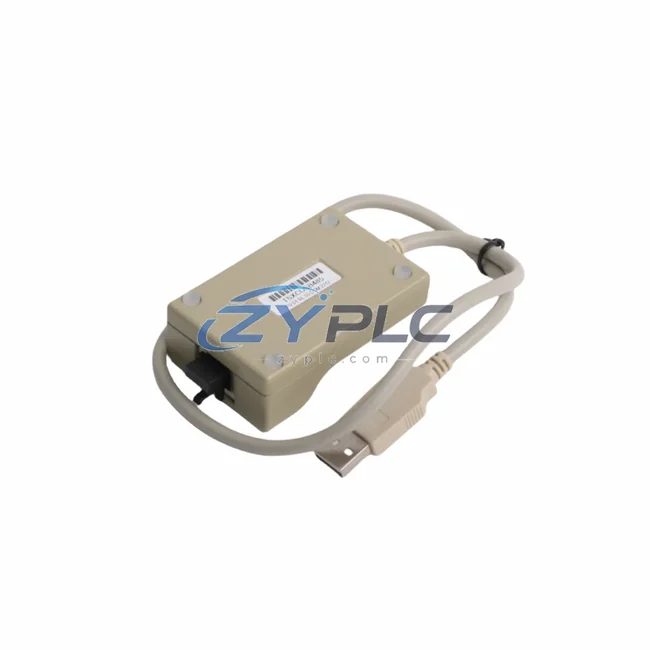

Schneider TSXCUSB485 Industrial Network Interface for Modicon Systems

Schneider TSXCUSB485 Industrial Network Interface for Modicon Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and supervisory systems is the backbone of operational efficiency. The Schneider Electric TSXCUSB485 is a high-performance USB to RS485 communication gateway engineered specifically for Modicon PLC platforms, enabling reliable serial communication between engineering workstations, SCADA systems, and the full range of Modicon automation controllers. Whether you are commissioning a new production line or upgrading legacy infrastructure, the TSXCUSB485 delivers the protocol conversion, network stability, and real-time data transparency that industrial sites demand.

The TSXCUSB485 connects directly to a PC or HMI terminal via USB and presents a virtual RS485 serial port, allowing Unity Pro, EcoStruxure Control Expert, and third-party SCADA platforms to communicate natively with Modicon M340, Modicon Premium, and Modicon Quantum controllers. This plug-and-play architecture eliminates the need for dedicated serial interface cards, dramatically reducing integration time and hardware cost while maintaining full Modbus RTU protocol compatibility across the entire automation network.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the TSXCUSB485 requires viewing it within the broader context of an integrated industrial automation architecture. At the field level, sensors and actuators feed signals into remote I/O modules and discrete output modules such as the Schneider MDO32BNS Discrete Output Module for Modicon M340, which aggregates digital signals and passes them upstream via the backplane. The Schneider BMXXBP1200 Modicon X80 Backplane provides the physical and electrical foundation for M340 rack-based systems, housing CPU modules, power supplies, and communication cards in a unified chassis.

Power integrity across the rack is maintained by modules like the Schneider BMXCPS2000 Modicon M340 Power Supply Module, which ensures stable 24 VDC distribution to all connected I/O and communication cards. From the controller level, the TSXCUSB485 creates the critical RS485 serial link between the Modicon CPU and the engineering PC, enabling real-time program upload, download, and live variable monitoring through EcoStruxure Control Expert.

For sites requiring Ethernet-based SCADA connectivity alongside serial programming access, the Schneider BMXNOC0401 Ethernet Communication Gateway for Modicon M340 handles Modbus TCP/IP traffic to the supervisory layer, while the TSXCUSB485 simultaneously serves the local RS485 programming port — a dual-channel approach that keeps SCADA data flows and engineering access completely independent. In Quantum-based architectures, the Schneider 140NOE77101 Ethernet Communication Module fulfills the same Ethernet gateway role, and the Schneider 140CRA93100 High-Efficiency Communication Module extends remote I/O reach across distributed plant sections.

For Momentum-based installations, the Schneider 170INT11003 Ethernet Communication Module bridges field-level Momentum I/O adapters to the plant Ethernet backbone, while the Schneider 171CCC78010 Processor Adapter for Modicon Momentum provides the CPU processing core that the TSXCUSB485 connects to during local commissioning and diagnostics. In legacy Premium PLC environments, the Schneider TSXLES65 Communication Module for TSX Premium handles network-level data exchange, with the TSXCUSB485 providing the essential USB-to-RS485 bridge for direct controller access.

When Modbus RTU data must traverse longer distances or reach Modbus TCP/IP-based SCADA servers, the Schneider 03855500115A10 Modbus Communication Gateway for Modicon performs protocol translation at the network edge, converting serial Modbus RTU frames into Ethernet-compatible Modbus TCP packets. The TSXCUSB485 feeds into this data chain at the device level, ensuring that every field signal — from analog input cards like the Schneider 140AII33010 Analog Input Module for Modicon Quantum to high-speed serial communication modules like the Schneider BMXNOM0200 Serial Communication Module for Modicon M340 — is accessible for real-time monitoring, alarm management, and remote diagnostics from the SCADA or MES layer.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, and supervisory systems operate in disconnected silos, preventing plant-wide visibility and real-time decision-making. The TSXCUSB485 directly addresses this challenge by providing a standardized, low-latency RS485 communication path that integrates Modicon controllers into the broader data architecture of the smart factory.

Protocol Unification: Many industrial sites operate a mix of legacy serial devices and modern Ethernet-based systems. The TSXCUSB485 bridges the RS485 serial world with USB-connected engineering tools, enabling Modbus RTU protocol communication without requiring dedicated serial hardware. This allows engineers to access Modicon PLCs from any modern laptop or HMI terminal, eliminating the need for obsolete ISA or PCI serial cards.

Production Line Transparency: By enabling live variable monitoring and real-time data logging through EcoStruxure Control Expert, the TSXCUSB485 gives process engineers and maintenance teams full visibility into PLC program execution, I/O states, and communication diagnostics. This transparency is essential for root-cause analysis, predictive maintenance, and continuous improvement initiatives in smart manufacturing environments.

Remote Diagnostics and Alarm Management: When integrated with SCADA platforms via the Modicon communication architecture, the TSXCUSB485 supports remote diagnostics workflows that allow engineers to identify and resolve communication faults, I/O errors, and network instability without physical site visits. Alarm data from field devices flows through the RS485 network to the SCADA layer, where it can be logged, analyzed, and escalated according to plant-specific alarm management procedures.

System Scalability: The TSXCUSB485 supports multi-drop RS485 networks, allowing a single USB connection to serve as the programming and diagnostic interface for multiple Modicon controllers on the same RS485 bus. This scalability makes it an ideal solution for distributed manufacturing sites where multiple PLCs must be accessed from a central engineering station without the cost and complexity of dedicated Ethernet programming ports on every controller.

Industrial Connectivity FAQ

Q1: What is the communication latency of the TSXCUSB485 on an RS485 network?
The TSXCUSB485 operates at baud rates up to 19,200 bps on the RS485 side, with USB 2.0 full-speed on the PC side. Communication latency is primarily determined by the Modbus RTU polling cycle and the number of devices on the RS485 bus. For typical PLC programming and diagnostics applications, response times are well within the requirements of EcoStruxure Control Expert and standard SCADA polling intervals.

Q2: Is the TSXCUSB485 compatible with both Modicon M340 and Modicon Quantum platforms?
Yes. The TSXCUSB485 is compatible with all Modicon PLC platforms that feature an RS485 serial programming port, including Modicon M340, Modicon Premium, Modicon Quantum, and Modicon Momentum. It communicates using the standard Modbus RTU protocol, which is natively supported across the entire Modicon product family.

Q3: How does the TSXCUSB485 maintain network stability in electrically noisy industrial environments?
The TSXCUSB485 incorporates RS485 differential signaling, which provides inherent noise immunity in industrial environments with high levels of electromagnetic interference from variable frequency drives, servo amplifiers, and high-current switching equipment. The differential signal architecture ensures reliable data transmission over cable runs of up to 1,200 meters, making it suitable for large plant floor installations.

Q4: What warranty and pre-shipment testing does the TSXCUSB485 include?
Every TSXCUSB485 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and communication failures. Prior to shipment, each unit undergoes functional testing to verify USB enumeration, RS485 signal integrity, and Modbus RTU communication performance. Availability is confirmed via RFQ for shipment arranged after confirmation, with global shipping to support urgent maintenance and replacement requirements.
