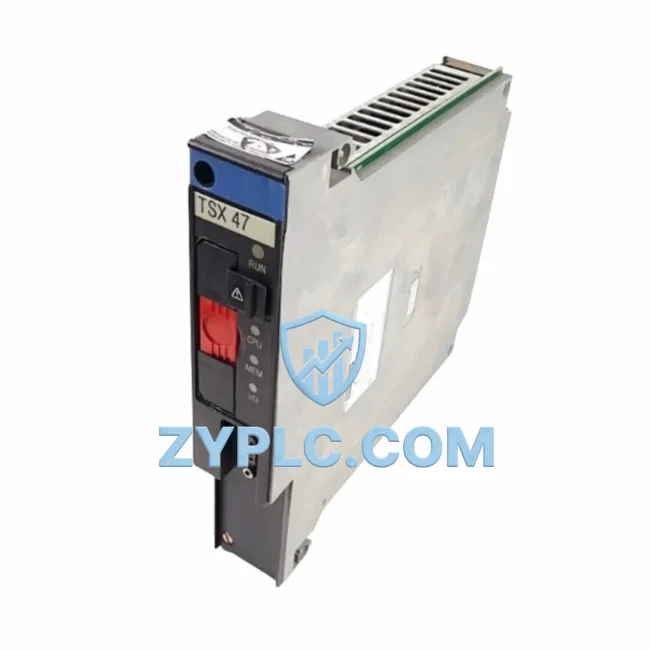

Schneider TSXP4720 Processor for TSX Premium

Schneider TSXP4720 Processor for TSX Premium: Compatibility and Replacement Notes

The Schneider Electric TSXP4720 is a high-performance PLC processor module engineered for deployment within the TSX Premium control platform — one of Schneider Electric’s most widely adopted modular automation architectures in industrial environments. Rather than functioning as a standalone computing unit, the TSXP4720 serves as the central intelligence layer of a layered control system, coordinating signal acquisition, logic execution, and communication management across every tier of the automation hierarchy. Understanding its role requires examining how it interacts with the control layer, I/O layer, network layer, power layer, HMI layer, and actuator layer simultaneously.

At the control layer, the TSXP4720 executes IEC 61131-3 compliant ladder logic, function block diagrams, and structured text programs stored in its onboard memory. It manages scan cycles with deterministic timing, ensuring that process variables are read, evaluated, and acted upon within defined cycle windows — a critical requirement in high-speed manufacturing lines, power distribution substations, and continuous process plants. The processor interfaces directly with the TSX Premium rack backplane, enabling seamless data exchange with co-resident I/O modules such as the TSXDEY16D2 digital input module and TSXAEY414 analog input module, both of which feed real-time field signals into the processor’s data table for logic evaluation.

At the I/O layer, the TSXP4720 supports local and remote I/O expansion through the TSX Premium distributed I/O architecture. Remote racks connected via the TSXETY110 Ethernet module or TSXPBY100 FIPIO bus coupler extend the processor’s reach across large plant floors without degrading scan performance. This distributed topology is particularly valuable in petrochemical facilities and water treatment plants where field instruments are spread across multiple process areas. The processor’s ability to manage both local rack I/O and remote station I/O within a single program instance simplifies engineering and reduces commissioning time.

At the network layer, the TSXP4720 supports integration with SCADA systems and plant-level MES platforms through standard industrial communication protocols. When paired with the TSXETY5103 Ethernet TCP/IP module, the processor participates in peer-to-peer data exchange and supervisory data acquisition. For legacy fieldbus environments, the TSXSCP114 serial communication module provides Modbus RTU connectivity to third-party drives, meters, and remote terminal units. This multi-protocol capability ensures that the TSXP4720 can serve as the control core in both greenfield installations and brownfield upgrades where mixed communication infrastructure is the norm.

At the power layer, the TSXP4720 relies on the TSX Premium power supply modules — such as the TSXPSY2600M or TSXPSY5500M — to deliver stable 24 VDC logic power to the processor and all co-resident modules. Proper power architecture design, including redundant power supply configurations where process criticality demands it, ensures that the processor remains operational during single-point power failures. In high-availability applications such as mining conveyors and offshore platform control systems, dual power supply arrangements with automatic switchover are standard practice.

At the HMI layer, the TSXP4720 communicates with operator interface terminals such as the Magelis XBTGT series panels via Uni-Telway or Ethernet, providing operators with real-time process visualization, alarm management, and parameter adjustment capabilities. The tight integration between the TSX Premium processor and Schneider’s HMI ecosystem reduces driver configuration overhead and ensures consistent data mapping between the controller and the display layer.

At the actuator layer, the processor’s digital output modules — including the TSXDSY08T2 transistor output module — drive solenoid valves, motor starters, and relay coils based on evaluated logic conditions. For variable-speed drive applications, the TSXP4720 coordinates with Altivar series drives through Modbus or CANopen communication, enabling closed-loop speed and torque control within the same program scan.

Product Specification Table

System Compatibility Notes

The TSXP4720 achieves its full operational value when integrated within a complete TSX Premium system architecture. A typical coordinated system built around this processor includes the TSXPSY2600M power supply module providing stable backplane power, the TSXDEY16D2 16-channel digital input module for discrete field signal acquisition, and the TSXAEY414 4-channel analog input module for process variable monitoring. Output control is handled through the TSXDSY08T2 transistor output module for high-speed switching applications and the TSXRKY8 relay output module for higher-current actuator loads.

Network connectivity is extended through the TSXETY5103 Ethernet TCP/IP module, enabling the processor to participate in plant-wide SCADA communication and remote diagnostics. For distributed I/O expansion across remote process areas, the TSXPBY100 FIPIO bus coupler connects remote I/O drops to the main processor without requiring additional CPU resources. Terminal block modules such as the TSXBLY01 simplify field wiring and reduce installation errors during commissioning. Together, these components form a cohesive, scalable control architecture that the TSXP4720 orchestrates with deterministic scan performance and high system availability.

Industrial Application Notes

The TSXP4720 has been deployed across a broad range of industrial sectors where layered automation architecture is essential. In manufacturing environments, it manages multi-axis assembly line sequencing, coordinating conveyor drives, robotic pick-and-place stations, and quality inspection systems within a single program instance. In power distribution substations, it handles protection relay logic, breaker control, and SCADA data reporting with the deterministic timing required for grid-critical operations.

In petrochemical and refinery applications, the processor controls reactor feed systems, heat exchanger bypass valves, and compressor surge protection sequences, where process upsets must be detected and responded to within milliseconds. Water treatment facilities rely on the TSXP4720 to manage pump sequencing, chemical dosing, and filtration backwash cycles across geographically distributed pump stations connected via remote I/O. In mining and metallurgical operations, the processor coordinates crusher control, conveyor load balancing, and ore sorting systems in environments characterized by high vibration, dust, and temperature extremes — conditions the TSX Premium platform is specifically rated to withstand.

Packaging line integrators select the TSXP4720 for its ability to synchronize high-speed filling, capping, labeling, and case-packing stations within tight cycle time budgets, while its PCMCIA expansion capability allows communication modules to be added as line configurations evolve over time.

Product Compatibility FAQ

Q1: Is the TSXP4720 compatible with existing TSX Premium racks and I/O modules already installed in my facility?
Yes. The TSXP4720 is fully compatible with all TSX Premium series racks (4, 8, and 12 slot configurations) and the complete range of TSX Premium I/O modules. No rack or wiring modifications are required when replacing an existing TSX Premium processor of equivalent or lower specification. Configuration migration from an older processor can be performed using Schneider’s Unity Pro or PL7 Pro programming software, depending on the original program format.

Q2: Can the TSXP4720 support redundant architecture configurations for high-availability applications?
The TSXP4720 supports hot-standby redundancy when configured with a compatible TSX Premium redundancy module and a mirrored rack assembly. In redundant configurations, the standby processor continuously synchronizes its data table with the active processor, enabling bumpless switchover in the event of a primary processor fault. This architecture is commonly specified in power generation, water treatment, and continuous process applications where unplanned downtime carries significant operational or safety consequences.

Q3: What does the 12-Month Warranty cover, and what support is available during the warranty period?
The 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions as defined in the product datasheet. During the warranty period, ZYPLC provides direct technical support for installation, commissioning, and fault diagnosis, including remote diagnostic assistance and advance replacement coordination where required. Warranty claims are processed through ZYPLC’s dedicated after-sales team, reachable at plc.sales@zyplc.com or +86 19859288691.
