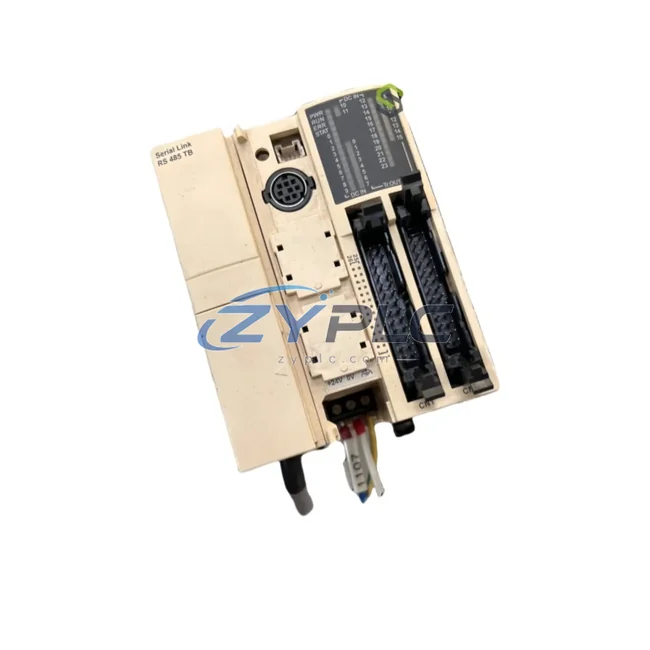

Schneider TWDNOZ485T Industrial Network Interface for Twido Systems: Bridging the Industrial Data Link
The Schneider Electric TWDNOZ485T is a dedicated RS-485 serial link adaptor engineered for the Twido compact PLC platform, delivering reliable, high-integrity serial communication across demanding industrial environments. As factories evolve toward fully connected smart manufacturing architectures, the TWDNOZ485T serves as a critical node in the industrial data chain — enabling seamless protocol conversion, real-time data exchange, and transparent device integration between field-level equipment and supervisory control systems.
Designed to extend the native communication capability of the Twido PLC family, the TWDNOZ485T connects field devices, remote I/O modules, HMI panels, SCADA gateways, variable frequency drives, and intelligent sensors into a unified, coherent network. Its RS-485 physical layer supports multi-drop topologies with up to 32 nodes on a single bus segment, making it ideal for distributed automation architectures where long cable runs and noise immunity are essential requirements.
In a typical smart factory deployment, the TWDNOZ485T plugs directly into the Twido controller — such as the TWDLCAA24DRF or TWDLMDA20DRT — and immediately enables Modbus RTU master or slave communication. This allows the PLC to poll data from remote I/O expanders like the TWDNOI10M3 or TWDDDI8DT, read process values from Modicon STB distributed I/O islands, and exchange setpoints with Altivar ATV312 or ATV61 variable speed drives on the same RS-485 bus. The result is a tightly integrated control loop where signal acquisition, protocol conversion, and command execution occur within deterministic cycle times.
The TWDNOZ485T also plays a pivotal role in SCADA and HMI integration. When paired with a Magelis XBTGT or XBTGK HMI terminal, operators gain real-time visibility into process variables, alarm states, and production metrics directly from the Twido controller. Upstream, SCADA platforms such as Vijeo Citect or InTouch can access the Twido data model via Modbus RTU over RS-485, enabling centralized monitoring, historical trending, and remote diagnostic capabilities without requiring additional communication hardware.
For sites managing multiple production zones, the TWDNOZ485T supports network segmentation strategies where each Twido node handles a localized control task — motor control, conveyor sequencing, temperature regulation — while feeding aggregated data upward to an edge gateway or industrial PC running supervisory software. This hierarchical architecture reduces network congestion, improves fault isolation, and simplifies maintenance by allowing individual segments to be diagnosed or replaced without disrupting the broader system.
Remote diagnostics are further enhanced by the TWDNOZ485T’s compatibility with TwidoSuite programming software, which allows engineers to monitor communication status, frame error rates, and bus loading in real time. When integrated with an industrial router or cellular gateway, remote access to the Twido network becomes possible, enabling off-site engineers to perform parameter adjustments, firmware updates, and fault analysis without physical site visits — a critical capability for geographically distributed installations.
Every TWDNOZ485T unit shipped by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, connector reliability, and protocol compliance. Stock is maintained in our warehouse to support urgent project timelines, and all units are covered by a warranty terms confirmed during quotation against manufacturing defects. Fast international logistics via DHL and FedEx ensure delivery to project sites worldwide.
Compatibility & Integration Notes
| Parameter |
Specification |
| SKU |
TWDNOZ485T |
| Brand |
Schneider Electric |
| Series |
Twido |
| Communication Protocol |
Modbus RTU (Master / Slave) |
| Physical Interface |
RS-485 (2-wire, half-duplex) |
| Network Topology |
Multi-drop bus, up to 32 nodes |
| Baud Rate |
Up to 38,400 bps |
| Cable Distance |
Up to 1,200 m |
| Compatible Controllers |
Twido TWDLCAA, TWDLMDA series |
| HMI Compatibility |
Magelis XBTGT, XBTGK series |
| SCADA Integration |
Vijeo Citect, InTouch, WinCC via Modbus RTU |
| Product Type |
Communication Module / Serial Link Adaptor |
| Origin |
France |
| Warranty |
12 Months |
Connected Automation Data Flow
The TWDNOZ485T sits at the heart of a layered industrial communication architecture. At the field level, sensors and actuators — including Telemecanique OsiSense inductive proximity sensors and Preventa XPS safety relays — feed discrete and analog signals into the Twido PLC’s onboard I/O. The TWDNOZ485T then extends this data reach across the RS-485 bus to remote expansion modules such as the TWDDDI8DT digital input module and TWDDDO8TT digital output module, effectively multiplying the controller’s I/O capacity without additional wiring infrastructure.
On the drive network, the TWDNOZ485T enables the Twido PLC to communicate speed references, torque limits, and fault acknowledgment commands to Altivar ATV312 compact drives and ATV61 process drives via Modbus RTU. This eliminates the need for dedicated analog wiring between the controller and each drive, reducing installation cost and improving diagnostic transparency — drive fault codes and running status are available directly in the PLC data table.
At the supervisory layer, Magelis HMI terminals connected to the RS-485 bus display real-time process data, operator prompts, and alarm notifications. SCADA systems access the same data model through Modbus TCP gateways or direct RS-485 polling, enabling plant-wide dashboards that aggregate data from multiple Twido nodes across the facility. Edge computing devices and industrial IoT gateways can further process this data for predictive maintenance analytics and OEE reporting.
Solving Data Isolation in Industrial Sites
Many industrial sites operate with legacy equipment using proprietary or incompatible communication protocols, creating data silos that prevent unified monitoring and control. The TWDNOZ485T addresses this challenge by providing a standardized Modbus RTU interface that bridges older serial devices with modern PLC and SCADA platforms. Sites that previously relied on manual data collection or isolated control islands can now integrate these devices into a centralized data architecture, enabling real-time production visibility and automated alarm management.
Protocol inconsistency is one of the most common barriers to smart factory transformation. By standardizing communication on RS-485 Modbus RTU, the TWDNOZ485T allows engineering teams to connect heterogeneous devices — from legacy meters and analyzers to modern variable speed drives and remote I/O — under a single communication framework managed by the Twido PLC. This simplifies PLC programming, reduces commissioning time, and provides a clear upgrade path as production requirements evolve.
Remote monitoring and diagnostics become straightforward once the TWDNOZ485T is deployed. Engineers can access live process data, communication diagnostics, and alarm histories from any location with network access, reducing mean time to repair and minimizing unplanned downtime. System expansion is equally simplified: additional RS-485 nodes can be added to the bus without modifying existing wiring, supporting phased capacity increases aligned with production growth.
Industrial Connectivity FAQ
Q: What is the maximum communication distance supported by the TWDNOZ485T?
A: The TWDNOZ485T supports RS-485 communication over cable runs of up to 1,200 meters, making it suitable for large plant floors and distributed equipment layouts. Proper termination resistors and shielded twisted-pair cable are recommended for maximum noise immunity at extended distances.
Q: Is the TWDNOZ485T compatible with third-party Modbus RTU devices?
A: Yes. The TWDNOZ485T implements standard Modbus RTU protocol, ensuring compatibility with any device that conforms to the Modbus specification — including drives, meters, sensors, remote I/O modules, and HMI terminals from multiple manufacturers. Protocol configuration is managed through TwidoSuite software.
Q: How does the TWDNOZ485T support network stability in electrically noisy environments?
A: The RS-485 differential signaling used by the TWDNOZ485T provides inherent common-mode noise rejection, making it robust in environments with variable frequency drives, welding equipment, and other sources of electromagnetic interference. Bus termination and proper cable routing further enhance signal integrity across the full network length.
Q: What warranty and pre-shipment testing does ZYPLC provide for the TWDNOZ485T?
A: Every TWDNOZ485T unit is functionally tested before shipment to verify communication performance and connector integrity. All units are covered by a warranty terms confirmed during quotation against manufacturing defects. ZYPLC maintains ready stock to support urgent project requirements, with international shipping via DHL and FedEx.
