Schneider VX4A1104 Control Line Terminal Board for Altivar Systems

Schneider VX4A1104 Industrial Network Interface for Altivar Systems: Enabling Seamless Industrial Data Links in Smart Factory Environments

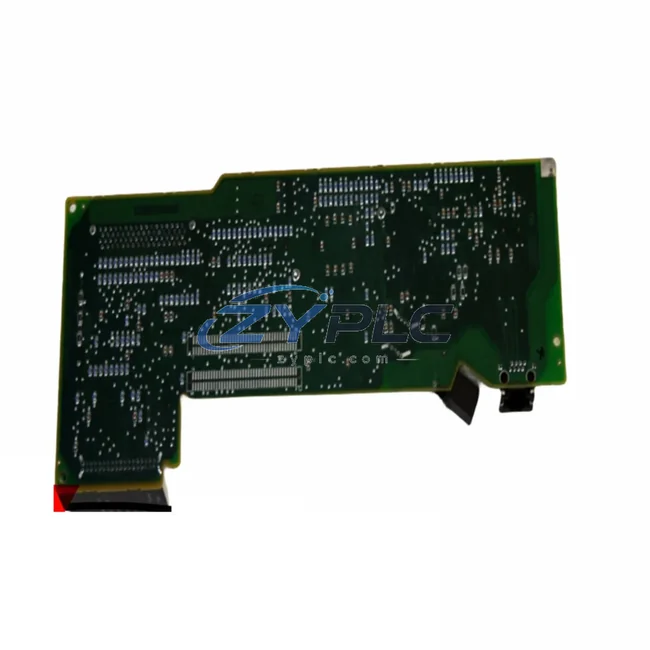

The Schneider VX4A1104 is a precision-engineered Control Line Terminal Board designed for the Altivar series of variable speed drives. In modern smart factory deployments, where every millisecond of data latency and every node of network connectivity matters, the VX4A1104 serves as a critical bridge between field-level drive hardware and upper-level control and monitoring systems. Whether your plant runs on PROFIBUS DP, Modbus RTU, CANopen, or DeviceNet, this terminal board provides the physical and logical interface layer that keeps your automation data flowing reliably across the entire production network.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory architecture, the VX4A1104 sits at the heart of the drive communication layer. Signal acquisition begins at the sensor level — pressure transmitters, encoders, and temperature probes feed real-time process values into the Altivar drive. The VX4A1104 terminal board then structures this data and transmits it upstream via Modbus RTU to a Schneider Modicon M340 or Modicon M580 PLC, where ladder logic processes speed references, torque limits, and fault states.

For plants running PROFIBUS DP backbones, the VX4A1104 integrates directly with Schneider Premium TSX PLC racks via PROFIBUS master modules, enabling deterministic cycle times below 10 ms for motion-critical applications. In distributed I/O architectures, the drive data is aggregated alongside Schneider TM3 remote I/O modules and passed to the controller over the same fieldbus segment, reducing wiring complexity and cabinet footprint.

At the HMI layer, operators interact with drive status, speed setpoints, and alarm histories through Schneider Magelis HMIGTO or Vijeo Designer-based panels. The VX4A1104 ensures that the Altivar drive’s internal registers — including output frequency, motor current, DC bus voltage, and fault codes — are continuously mapped and refreshed for display. When integrated with Schneider EcoStruxure Machine SCADA Expert or third-party SCADA platforms via OPC-UA gateways such as the Moxa MGate MB3270, the terminal board enables plant-wide visibility from a single supervisory dashboard.

For multi-drive applications — conveyor lines, pump stations, HVAC systems — the VX4A1104 supports daisy-chain Modbus RTU topologies, allowing up to 31 Altivar drives to share a single RS-485 segment. Each drive node is individually addressable, and the Schneider SoMove commissioning software can poll all nodes simultaneously for parameter upload, download, and real-time oscilloscope monitoring without interrupting production.

Edge connectivity is achieved by pairing the VX4A1104-equipped Altivar drive with an Ewon Flexy 205 industrial IoT gateway, which tunnels Modbus data over 4G LTE or Ethernet to cloud-based analytics platforms. This enables remote diagnostics, predictive maintenance alerts, and energy consumption reporting — all without modifying the existing fieldbus wiring.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial sites is protocol fragmentation. Legacy drives may speak Modbus RTU while newer PLCs demand PROFINET or EtherNet/IP. Without a proper interface board like the VX4A1104, drive data remains trapped in isolated islands — invisible to SCADA, inaccessible to MES, and unavailable for predictive analytics.

The VX4A1104 resolves this by providing a standardized, protocol-native connection point directly on the Altivar drive’s control board. There is no need for external protocol converters or additional panel space. Drive parameters, fault registers, and process variables are immediately available on the fieldbus, ready to be consumed by any upstream system that speaks the same protocol.

For production line transparency, the VX4A1104 enables real-time OEE (Overall Equipment Effectiveness) tracking by exposing motor run hours, fault frequency, and speed deviation data to MES systems. Maintenance teams can configure alarm thresholds in the PLC and receive push notifications via SCADA when drive parameters drift outside acceptable ranges — eliminating unplanned downtime caused by undetected drive degradation.

System expansion is equally straightforward. Adding a new Altivar drive to an existing Modbus RTU network requires only assigning a unique node address and connecting the RS-485 terminals — the VX4A1104 handles the rest. For sites migrating to Industrial Ethernet, the terminal board’s gateway-compatible architecture means the transition can be phased without replacing existing drive hardware.

Every Schneider VX4A1104 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying communication register mapping, terminal integrity, and firmware compatibility with the target Altivar drive series. Stock is maintained for fast dispatch via DHL or FedEx express, with a warranty terms confirmed during quotation covering all manufacturing defects.

Industrial Connectivity FAQ

Q1: What communication protocols does the Schneider VX4A1104 support?
The VX4A1104 is compatible with Modbus RTU (RS-485), PROFIBUS DP, CANopen, and DeviceNet, depending on the specific Altivar drive variant and the communication card slot configuration. It is designed to integrate directly with Schneider Modicon PLCs and third-party SCADA/HMI systems that support these standard industrial protocols.

Q2: Can the VX4A1104 be used with both ATV31 and ATV71 series drives?
Yes. The VX4A1104 Control Line Terminal Board is compatible across multiple Altivar generations, including the ATV31, ATV312, ATV61, and ATV71 series. Always verify the drive’s control board slot specification and firmware version before installation to ensure full register compatibility.

Q3: How does the VX4A1104 contribute to network stability in multi-drive systems?
By providing a dedicated, hardware-level communication interface on each Altivar drive, the VX4A1104 eliminates the need for shared external adapters that can become single points of failure. In Modbus RTU daisy-chain topologies, proper termination resistors and shielded cable — combined with the VX4A1104’s robust RS-485 transceiver — ensure signal integrity across long cable runs in electrically noisy industrial environments.

Q4: What warranty and testing does ZYPLC provide for the VX4A1104?
All VX4A1104 units are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing to verify communication integrity and terminal board condition. Orders are dispatched via DHL or FedEx express with full tracking. For volume orders or urgent requirements, contact our team directly for lead time confirmation and RFQ support.
