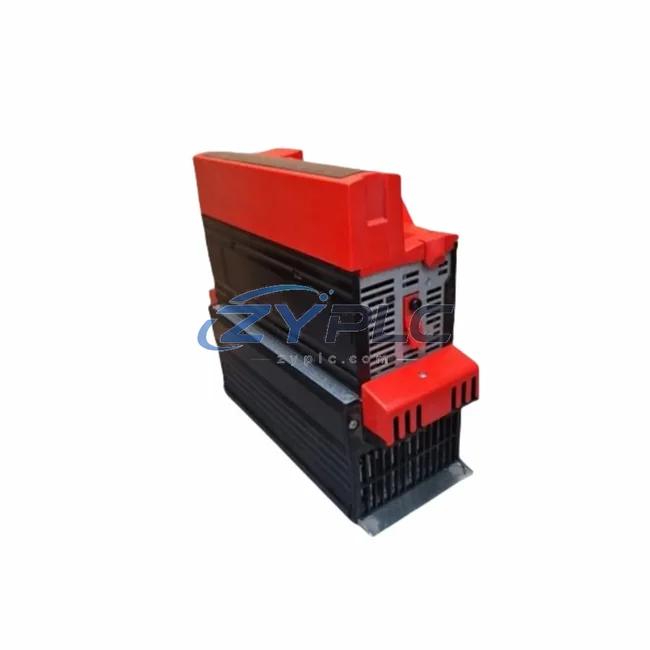

SEW-Eurodrive MDX61B0110-5A3-4-0T AC Variable Frequency Drive for MOVIDRIVE B Systems

SEW-Eurodrive MDX61B0110-5A3-4-0T: Industrial Data Link and Smart Factory Connectivity for MOVIDRIVE B Systems

The SEW-Eurodrive MDX61B0110-5A3-4-0T is a high-performance AC variable frequency drive from the MOVIDRIVE B series, engineered to serve as a critical industrial network interface node within modern smart factory architectures. Rated for demanding industrial environments, this drive integrates seamlessly into multi-protocol communication networks, enabling real-time data exchange between field-level devices and upper-level control and monitoring systems. Whether deployed in continuous process lines, discrete manufacturing cells, or complex multi-axis motion systems, the MDX61B0110-5A3-4-0T delivers the communication depth and network stability that Industry 4.0 connectivity demands.

At its core, the MDX61B0110-5A3-4-0T supports SEW-Eurodrive’s modular fieldbus option card architecture, allowing integration with PROFIBUS-DP, PROFINET IO, EtherNet/IP, Modbus TCP, DeviceNet, and CANopen networks. This protocol flexibility makes it an ideal gateway component between legacy field devices and modern Ethernet-based industrial backbones, eliminating data silos that have historically fragmented production visibility across plant floors.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the MDX61B0110-5A3-4-0T sits at the intersection of the field device layer and the control network layer. Signal acquisition begins at the sensor and actuator level — proximity switches, encoders, pressure transmitters, and temperature sensors feed raw process data upward through distributed I/O modules such as the SEW-Eurodrive DIO11B digital I/O expansion or compatible remote I/O stations connected via PROFIBUS-DP segments.

The drive receives speed references, torque commands, and enable signals from a Siemens S7-1500 PLC or Allen-Bradley ControlLogix controller over PROFINET IO or EtherNet/IP respectively, executing motion profiles with millisecond-level cycle times. Simultaneously, the MDX61B0110-5A3-4-0T transmits actual speed, output current, DC bus voltage, fault codes, and thermal status back to the PLC in real time, providing the closed-loop feedback essential for precise process control.

At the HMI layer, a Weintek MT8000 series panel or Siemens TP1200 Comfort HMI reads drive status registers directly via Modbus TCP or through the PLC data block, presenting operators with live speed trends, energy consumption graphs, and alarm histories. This visualization layer is further extended by SCADA platforms such as Ignition by Inductive Automation or Wonderware System Platform, which aggregate data from multiple MDX61B0110-5A3-4-0T drives across production zones into unified dashboards for shift supervisors and plant managers.

For multi-drive applications — such as coordinated conveyor systems, winding lines, or pump stations — the MDX61B0110-5A3-4-0T operates alongside SEW-Eurodrive MOVITRAC B compact drives and MOVIAXIS multi-axis servo inverters, all sharing a common PROFINET backbone managed through a Hirschmann RS20 or Phoenix Contact FL SWITCH 2000 series industrial Ethernet switch. This network topology ensures deterministic communication latency below 1 ms for time-critical motion sequences while maintaining full bandwidth availability for diagnostic and parameter data.

Edge gateway devices such as the Moxa MGate MB3000 series or Advantech WISE-5000 edge I/O modules bridge the MDX61B0110-5A3-4-0T’s fieldbus data into MQTT or OPC-UA streams, enabling cloud-based analytics platforms and MES systems to consume real-time drive telemetry without disrupting the deterministic control network. This architecture supports predictive maintenance workflows by continuously monitoring vibration signatures, bearing temperature trends, and insulation resistance values derived from the drive’s internal diagnostics.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with a fragmented automation landscape — legacy PROFIBUS networks coexist with newer PROFINET segments, standalone drives lack network connectivity, and critical process data never reaches SCADA or MES systems. The MDX61B0110-5A3-4-0T directly addresses these integration challenges through its modular fieldbus architecture.

By installing the appropriate SEW-Eurodrive DFE33B EtherNet/IP or DFP21B PROFIBUS option card into the MDX61B0110-5A3-4-0T’s option slot, engineers can bridge protocol boundaries without additional gateway hardware, reducing panel space requirements and eliminating potential communication bottlenecks. This native protocol conversion capability allows the drive to participate simultaneously in both legacy and modern network segments during phased migration projects.

Remote monitoring and diagnostics are enabled through SEW-Eurodrive’s MOVITOOLS MotionStudio engineering software, which connects to the MDX61B0110-5A3-4-0T via USB or Ethernet to provide parameter backup, firmware updates, oscilloscope traces, and fault log analysis — all executable from a remote engineering workstation without requiring physical access to the drive cabinet. This capability dramatically reduces mean time to repair (MTTR) for unplanned stoppages by enabling remote fault diagnosis before a technician is dispatched to site.

Production line transparency is achieved by mapping the drive’s process data objects (PDOs) to SCADA historian tags, creating continuous time-series records of speed, torque, energy, and fault events. This data foundation supports OEE (Overall Equipment Effectiveness) calculations, shift performance reporting, and regulatory compliance documentation — transforming the MDX61B0110-5A3-4-0T from a simple motion control device into a data-generating asset within the plant’s digital infrastructure.

System expansion is straightforward: additional MDX61B0110-5A3-4-0T drives or other MOVIDRIVE B variants can be added to the PROFINET ring topology with automatic address assignment via LLDP, and the PLC program can be extended with standard function blocks from the SEW-Eurodrive MOVIDRIVE B PLC library without requiring network reconfiguration. This scalability protects the initial automation investment as production capacity grows.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing including power-on verification, communication interface check, and parameter integrity validation, ensuring that the MDX61B0110-5A3-4-0T arrives prepared for commissioning after site verification. All units are covered by a from the date of shipment, with RFQ-based availability supporting urgent project timelines and MRO replacement requirements.

Industrial Connectivity FAQ

Q: What fieldbus protocols does the MDX61B0110-5A3-4-0T support, and how are they selected?
A: The MDX61B0110-5A3-4-0T supports PROFIBUS-DP, PROFINET IO, EtherNet/IP, Modbus TCP, DeviceNet, and CANopen through SEW-Eurodrive’s plug-in option card system. Protocol selection is made by installing the corresponding DFx or UFx fieldbus option card into the drive’s option slot — no hardware modification to the base drive is required, and the protocol can be changed in the field by swapping the option card.

Q: What is the typical communication cycle time, and is it suitable for time-critical motion control?
A: With PROFINET IRT (Isochronous Real-Time) mode enabled via the DFE33B option card, the MDX61B0110-5A3-4-0T achieves cycle times as low as 1 ms, making it suitable for synchronized multi-axis motion applications. For standard process control applications using PROFIBUS-DP or Modbus TCP, typical cycle times are 2–10 ms depending on network load and number of nodes.

Q: Can the MDX61B0110-5A3-4-0T be integrated into an existing SCADA or MES system without replacing the PLC?
A: Yes. The drive’s fieldbus interface maps process variables — speed, torque, current, fault codes — to standard PLC data blocks or Modbus registers that SCADA systems can poll directly via OPC-DA/UA servers or Modbus TCP drivers. No PLC replacement is required; the drive appears as a standard network node to the existing control infrastructure, and SCADA tag configuration is limited to adding the drive’s data addresses to the historian.

Q: What warranty and pre-shipment testing does ZYPLC provide for the MDX61B0110-5A3-4-0T?
A: All MDX61B0110-5A3-4-0T units supplied by ZYPLC carry a covering manufacturing defects and communication interface failures. Each unit undergoes pre-shipment testing including power-on functional verification, fieldbus communication interface check, and parameter default validation before dispatch. Availability is confirmed by RFQ for same-week shipment to support urgent MRO and project requirements.
