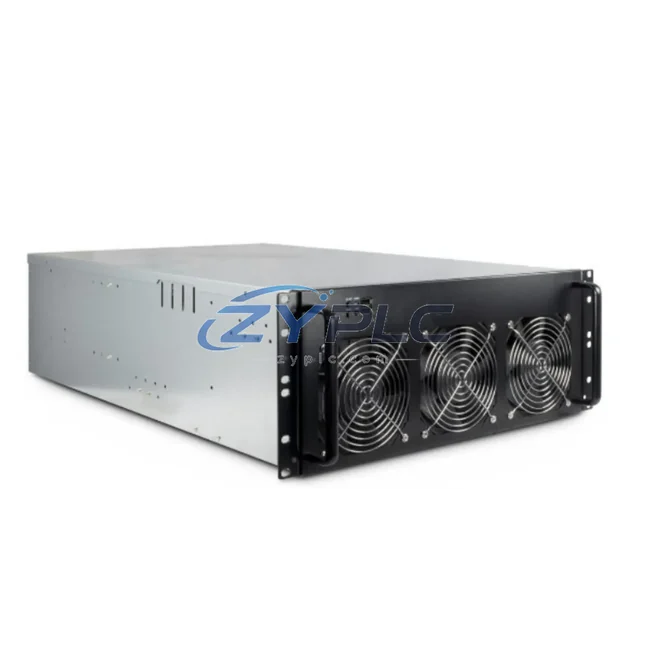

Siemens 15499-146/8 Fan Assembly ModulRac

Siemens 15499-146/8 Fan Assembly ModulRac: Precision Thermal Control for Optimized Automation

The Siemens 15499-146/8 is a high-efficiency fan assembly engineered for the Siemens ModulRac rack system — a modular PLC platform widely deployed in process automation, discrete manufacturing, and energy-intensive production environments. In industrial facilities where uptime directly translates to output efficiency, thermal management is not a secondary concern. Uncontrolled heat buildup inside control cabinets accelerates component degradation, increases fault rates, and forces unplanned shutdowns that disrupt production line rhythm. The 15499-146/8 addresses this challenge at the source by maintaining optimal airflow across CPU modules, power supply units, and I/O expansion cards housed within the ModulRac enclosure.

Unlike generic cooling solutions, this fan assembly is designed to integrate seamlessly with the ModulRac’s internal airflow architecture. It operates at a calibrated speed that balances thermal dissipation against acoustic output and power draw — ensuring that the cooling system itself does not become a source of unnecessary energy consumption. In facilities running Siemens S5-115U or S5-135U PLC systems, where the ModulRac serves as the primary control chassis, maintaining stable internal temperatures directly supports consistent scan cycle times and reduces the risk of CPU thermal throttling or memory errors under sustained load.

Product Specification Table

System Compatibility and Application

The 15499-146/8 fan assembly does not operate in isolation — it is one component within a broader industrial automation system. In a typical ModulRac-based control system, the rack houses a Siemens S5 CPU module (such as the CPU 948 or CPU 928B) alongside digital and analog I/O modules that interface directly with field devices. These modules generate heat proportional to their processing load and signal throughput. Without adequate airflow, thermal accumulation across the backplane can cause intermittent communication errors between the CPU and peripheral I/O cards — errors that are difficult to diagnose and often misattributed to software or wiring faults.

In drive-intensive applications, the ModulRac system frequently communicates with Siemens SINAMICS or MICROMASTER series variable frequency drives (VFDs) via PROFIBUS-DP. These drives regulate motor speed and torque in response to PLC output signals, enabling energy-proportional motor control rather than fixed-speed operation. When the PLC operates reliably — supported by stable thermal conditions maintained by the 15499-146/8 — the drive control loop remains tight, reducing motor overshoot, minimizing reactive power draw, and improving overall drive efficiency. A thermally compromised PLC introduces latency and jitter into the control loop, which can cause drives to operate outside their optimal efficiency band.

Power monitoring at the cabinet level is increasingly handled by Siemens SENTRON PAC power meters or equivalent energy measurement modules integrated into the control panel. These devices capture real-time kWh consumption, power factor, and harmonic distortion data — metrics that facility energy managers use to benchmark equipment efficiency and identify waste. A PLC system that runs hot and faults frequently will show elevated energy consumption in these logs, not because the PLC itself draws more power, but because fault recovery cycles, motor restarts, and idle-state heating all contribute to measurable unplanned downtime. The 15499-146/8 helps keep these metrics clean by ensuring the control system operates within its designed thermal envelope.

For human-machine interface layers, Siemens OP or TP series HMI panels connected to the ModulRac via MPI or PROFIBUS provide operators with real-time visibility into process states. When the underlying PLC is thermally stable, HMI data refresh rates remain consistent and alarm states are accurately reported — giving operators the information they need to make energy-conscious decisions about production scheduling and equipment utilization. In contrast, a thermally stressed PLC may generate spurious alarms or delayed status updates, leading operators to make suboptimal decisions that increase energy consumption.

The rack’s Siemens power supply module (such as the PS 951 or PS 955) feeds regulated DC voltage to all installed modules. Excessive heat degrades capacitor life within the PSU, increasing output ripple and reducing the quality of power delivered to CPU and I/O modules. By maintaining airflow with the 15499-146/8, the PSU operates within its rated temperature range, preserving output stability and extending its service life — reducing the frequency of PSU replacements and the associated production interruptions.

Maintenance and Replacement Notes

In automotive body shop lines, food processing facilities, and chemical batch plants, the Siemens ModulRac PLC system is often the central controller for multi-axis motion sequences, conveyor synchronization, and safety interlock logic. These environments demand continuous, uninterrupted PLC operation across multi-shift production schedules. A single thermal fault that forces a PLC restart can halt an entire production cell, triggering a cascade of downstream stoppages that take 15–45 minutes to recover — during which time energy continues to be consumed by idle motors, HVAC systems, and auxiliary equipment.

The 15499-146/8 fan assembly directly reduces the probability of these thermal fault events. By maintaining consistent airflow, it keeps CPU junction temperatures within the safe operating range, which Siemens specifies for reliable long-term operation. This translates to fewer unplanned restarts, more consistent production line rhythm, and better overall equipment effectiveness (OEE) — a metric that directly reflects the ratio of productive energy use to total energy consumed.

From a predictive maintenance perspective, fan assemblies are wear items with a defined service life. Proactive replacement of the 15499-146/8 before end-of-life — rather than waiting for failure — prevents the thermal events that accelerate degradation of higher-value components such as CPU modules and memory cards. The cost of a planned fan replacement is a fraction of the cost of an emergency CPU replacement or the production loss from an unplanned shutdown. Stocking the 15499-146/8 as a critical spare part is a standard practice in facilities that operate Siemens S5-based control systems and prioritize energy-efficient, high-availability production.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to pre-shipment functional testing, and covered by a warranty terms confirmed during quotation. Inventory is maintained to support rapid dispatch, with typical lead times of 1–3 business days for availability confirmed by RFQ items.

Product Sourcing FAQ

Q1: How does replacing the 15499-146/8 fan assembly contribute to operational stability?
A: Thermal faults in PLC systems cause unplanned restarts and production stoppages that waste energy through idle motor run-on, HVAC overcorrection, and recovery cycle power spikes. By maintaining stable airflow, the 15499-146/8 keeps the ModulRac PLC operating within its thermal design limits, reducing fault frequency and the associated unplanned downtime. It also prevents thermal derating of CPU and I/O modules, which can otherwise cause the system to operate less efficiently under load.

Q2: Is the 15499-146/8 compatible with all ModulRac rack configurations?
A: The 15499-146/8 is designed specifically for the Siemens ModulRac rack system and is compatible with configurations housing S5-115U and S5-135U CPU modules, along with their associated I/O expansion cards and power supply modules. If your rack uses a non-standard configuration or has been modified, contact ZYPLC with your full rack part number for compatibility confirmation before ordering.

Q3: What is the recommended replacement interval, and how should the fan be tested before installation?
A: Siemens recommends proactive replacement of fan assemblies in ModulRac systems as part of scheduled preventive maintenance, typically every 3–5 years depending on operating environment (ambient temperature, dust levels, and duty cycle). All 15499-146/8 units supplied by ZYPLC undergo pre-shipment operational testing to verify airflow performance and motor function. Upon receipt, verify rotation direction and airflow orientation match the original unit before installation.

Q4: What warranty coverage applies, and what does it include?
A: Every 15499-146/8 fan assembly supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, operation outside specified voltage or temperature ranges, or physical damage in transit. To initiate a warranty claim, contact ZYPLC with your order reference and a description of the fault.
