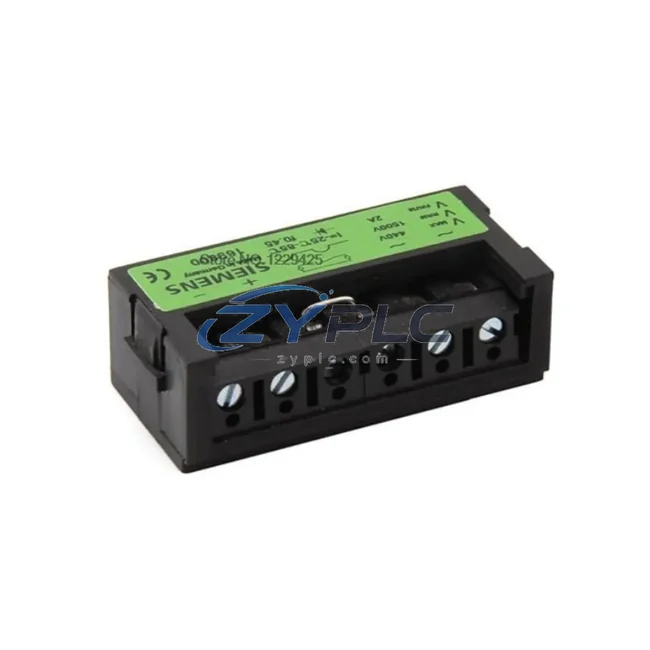

Siemens 169800 Rectifier Module for SIMOREG DC Master

Siemens 169800 Rectifier Module: Compatibility and Replacement Notes

The Siemens 169800 is a rectifier module designed for integration within the SIMOREG DC Master drive platform — one of Siemens’ most established DC drive architectures for demanding industrial applications. Rather than functioning as a standalone component, the 169800 occupies a critical position in the power conversion layer of a complete DC motor control system, converting AC supply voltage into a regulated DC bus that feeds the armature and field circuits of DC motors. Its role is foundational: without a stable, well-regulated rectifier stage, the entire downstream control chain — from the closed-loop speed controller to the field excitation unit — cannot maintain the precision and repeatability that modern industrial processes demand.

In a fully configured SIMOREG DC Master system, the 169800 rectifier module works in close coordination with the SIMOREG 6RA70 series converter units, which provide the digital closed-loop control platform. The 6RA70 series — including variants such as the 6RA7013, 6RA7018, 6RA7025, and 6RA7031 — relies on a stable DC bus delivered by the rectifier stage to execute precise armature current regulation and field weakening control. The 169800 is engineered to meet the electrical interface requirements of these converter units, ensuring that voltage ripple, current capacity, and thermal performance remain within the operating envelope defined by the SIMOREG system architecture.

At the control layer, the SIMOREG DC Master platform communicates via PROFIBUS-DP, enabling the 169800-equipped drive system to integrate seamlessly into a Siemens S7 PLC environment — including the S7-300 and S7-400 series controllers — through standard DP slave addressing. This communication architecture allows the PLC to issue speed and torque setpoints, monitor drive status, and execute coordinated start/stop sequences across multiple drive axes without requiring proprietary point-to-point wiring. The result is a control system that is both scalable and maintainable, with diagnostic data accessible directly from the STEP 7 or TIA Portal engineering environment.

The power supply layer supporting the 169800 typically includes Siemens SITOP PSU series power supplies, which provide the 24 VDC control voltage required by the SIMOREG electronics, as well as the auxiliary circuits for cooling fans, contactors, and safety relays. Proper sizing of the SITOP supply — particularly the SITOP PSU100S or SITOP PSU200M variants — is essential to ensure that transient load demands during motor acceleration do not cause control voltage dropout, which could trigger unintended drive faults or emergency stops.

At the I/O layer, the 169800 interfaces with the analog and digital I/O modules of the S7-300 or S7-400 backplane, including SM331 analog input modules for speed feedback signals and SM332 analog output modules for external setpoint generation. Encoder feedback from the DC motor shaft — typically via a pulse encoder connected to the SMC30 sensor module or directly to the SIMOREG’s onboard encoder interface — closes the speed control loop and enables the 169800-based system to achieve the tight speed regulation tolerances required in winding, extruding, and rolling mill applications.

For applications requiring high availability, the SIMOREG DC Master architecture supports redundant rectifier configurations. In such designs, a second rectifier module — identical in specification to the 169800 — is held in hot standby, with automatic switchover logic implemented either in the PLC program or through dedicated redundancy controllers. This approach is common in continuous process industries such as petrochemical refining, paper manufacturing, and steel rolling, where unplanned downtime carries significant production and safety consequences.

The human-machine interface layer in a SIMOREG-based system is typically realized through a Siemens SIMATIC HMI panel — such as the TP700 Comfort or TP1200 Comfort — running a WinCC Comfort visualization project. Operators can monitor DC bus voltage, armature current, motor speed, and drive fault codes in real time, with trend logging and alarm management integrated into the HMI project. The 169800’s operating parameters are surfaced through the SIMOREG parameter set, accessible via the PMU operator panel or through the DriveMonitor / STARTER commissioning tools.

From a maintenance and lifecycle perspective, the 169800 rectifier module benefits from Siemens’ extensive spare parts ecosystem. Compatible components — including gate drive boards, thyristor assemblies, snubber networks, and cooling assemblies — are available through authorized Siemens service channels and qualified industrial distributors. Maintaining a strategic inventory of the 169800 alongside related modules such as the SIMOREG field supply unit and the SIMOREG electronics board ensures that maintenance teams can execute corrective actions within a single shift, minimizing the mean time to repair (MTTR) for the drive system.

Product Specification Table

System Compatibility Notes

A complete SIMOREG DC Master installation built around the 169800 rectifier module typically incorporates the following coordinated components across the control, power, I/O, communication, and interface layers:

• SIMOREG 6RA7013 / 6RA7018 / 6RA7025 / 6RA7031 — Digital closed-loop DC converter units providing armature and field current regulation, forming the core of the drive control layer.
• SIMOREG Field Supply Unit (6RA70 field excitation board) — Manages DC motor field winding excitation, coordinating with the 169800 rectifier output to maintain optimal flux levels across the speed range.
• Siemens SITOP PSU100S / PSU200M — 24 VDC stabilized power supplies for SIMOREG electronics, control relays, and auxiliary circuits within the drive cabinet.
• Siemens S7-300 / S7-400 PLC with CP342-5 PROFIBUS-DP Master Module — Supervisory control platform issuing speed and torque references to the SIMOREG drive via PROFIBUS-DP, with coordinated interlocking for multi-drive systems.
• SM331 Analog Input Module / SM332 Analog Output Module — S7 I/O modules handling speed feedback signals, external setpoints, and process variable monitoring within the control cabinet backplane.
• SMC30 Sensor Module / SIMOREG Onboard Encoder Interface — Closes the speed control loop using incremental encoder feedback from the DC motor shaft, enabling tight speed regulation.
• SIMATIC TP700 Comfort / TP1200 Comfort HMI Panel — Operator interface for real-time monitoring of DC bus voltage, armature current, motor speed, and drive diagnostics.
• SIMOREG PMU Operator Panel — Local parameter access and commissioning interface mounted on the drive unit, used during initial setup and fault diagnosis.
• Siemens 3RT2 Contactor Series — Main circuit contactors for motor isolation, emergency stop, and controlled power sequencing within the drive cabinet.
• SIMOREG Electronics Board (CUD1 / CUD2) — Core control electronics providing the closed-loop algorithms, parameter memory, and communication interfaces for the SIMOREG DC Master platform.

Industrial Application Notes

The Siemens 169800 rectifier module is deployed across a wide range of heavy industrial and process automation environments where DC motor drives remain the preferred solution for high-torque, wide-speed-range applications:

• Steel Rolling Mills and Metal Processing: The 169800 supports multi-stand rolling mill drives where precise speed synchronization between successive roll stands is critical. The SIMOREG DC Master’s cascade control capability, enabled by a stable rectifier stage, allows speed ratios between stands to be maintained within fractions of a percent, preventing material tension faults and surface defects.
• Paper and Pulp Manufacturing: In winder and unwinder drives, the 169800 provides the regulated DC bus required for tension-controlled winding operations. The SIMOREG platform’s torque control mode, fed by a stable rectifier output, enables smooth web tension management across varying roll diameters.
• Mining and Hoisting Applications: Hoist drives in underground mining operations demand four-quadrant operation — motoring and regenerative braking in both directions. The 169800, as part of a fully antiparallel thyristor rectifier configuration within the SIMOREG 6RA70 platform, supports regenerative energy return to the AC supply during lowering operations, reducing energy consumption and mechanical brake wear.
• Petrochemical and Refinery Processes: Extruder drives, compressor drives, and pump drives in continuous process plants benefit from the SIMOREG DC Master’s high reliability and the 169800’s robust thyristor-based power conversion, which tolerates the harmonic-rich supply environments common in heavy industrial facilities.
• Water and Wastewater Treatment: Large pump and mixer drives in water treatment plants use the SIMOREG platform for its ability to operate reliably in high-humidity, high-vibration environments, with the 169800 providing the stable DC bus needed for consistent motor performance across variable load conditions.

Product Compatibility FAQ

Q1: Is the Siemens 169800 rectifier module compatible with all SIMOREG 6RA70 series converter units?
The 169800 is designed for use within the SIMOREG DC Master platform and is compatible with the 6RA70 series converter units across the standard current ratings. Compatibility should be verified against the specific 6RA70 variant’s power section requirements, including rated DC output current, AC supply voltage, and pulse number (6-pulse or 12-pulse configuration). Consult the SIMOREG 6RA70 operating instructions (Siemens document 6RX1700-0AD76) and the 169800 component datasheet to confirm electrical interface compatibility before installation.

Q2: Can the 169800-based SIMOREG system be integrated into a TIA Portal / S7-1500 PLC architecture?
Yes. While the SIMOREG DC Master was originally designed for integration with S7-300 and S7-400 controllers via PROFIBUS-DP, it can be integrated into a TIA Portal environment with an S7-1500 PLC using a PROFIBUS-DP master module (e. g. , CM 1542-5). The SIMOREG drive appears as a standard DP slave in the hardware configuration, and the existing GSD file for the SIMOREG 6RA70 can be imported into TIA Portal for I/O mapping. This approach allows the 169800-based drive system to coexist with modern PROFINET-based I/O in a hybrid automation architecture.

Q3: What does the warranty terms confirmed during quotation cover for the Siemens 169800, and how does it support long-term system maintenance planning?
The warranty terms confirmed during quotation provided by ZYPLC covers the Siemens 169800 rectifier module against manufacturing defects and functional failures under normal operating conditions. This warranty period supports maintenance planning by providing a defined risk-free window during which replacement or repair is covered, allowing engineering teams to schedule preventive maintenance activities and build spare parts inventory strategies around a known baseline. For critical drive systems, it is recommended to maintain at least one spare 169800 module on-site, supported by the warranty terms confirmed during quotation coverage, to ensure rapid corrective action in the event of an unplanned drive fault.
