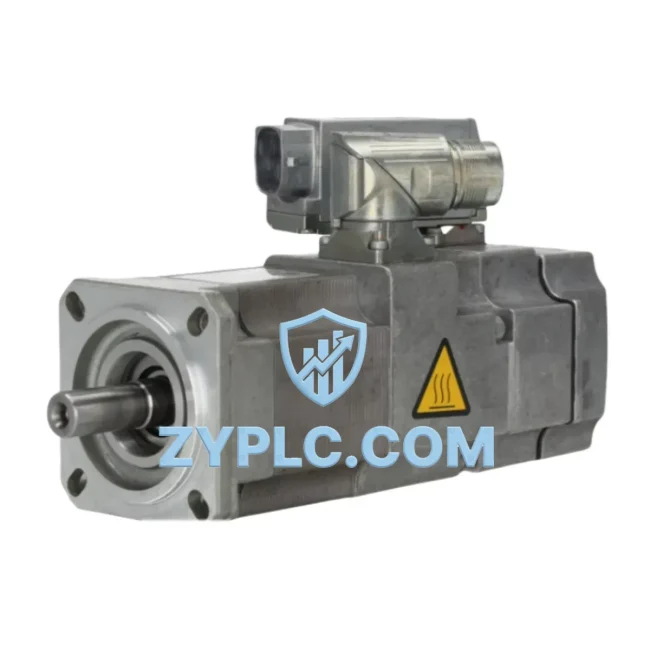

Siemens 1FK7032-5AK71-1LH0 Industrial Network Interface for SIMOTICS S Systems

Siemens 1FK7032-5AK71-1LH0: Industrial Data Link for SIMOTICS S Smart Factory Systems

The Siemens 1FK7032-5AK71-1LH0 is a compact, high-performance servo motor from the SIMOTICS S-1FK7 series, engineered to serve as a precision motion and data node within modern industrial network architectures. Designed for seamless integration into SINUMERIK CNC platforms, SIMATIC S7 PLC ecosystems, and SINAMICS drive networks, this servo motor delivers deterministic torque response and real-time feedback across multi-axis production lines. Its native support for PROFINET and PROFIdrive communication protocols positions it as a critical link in the digital data chain — from field-level signal acquisition all the way to SCADA dashboards and MES reporting layers.

In smart factory deployments, the 1FK7032-5AK71-1LH0 operates as more than a motion actuator. It functions as an active participant in the plant’s data flow architecture. Encoder feedback signals are transmitted in real time through the DRIVE-CLiQ interface to the SINAMICS S120 drive system, enabling closed-loop position control with microsecond-level precision. This data is simultaneously available to the SIMATIC S7-1500 PLC controller via PROFINET IO, where it feeds into motion control function blocks and is forwarded upstream to WinCC SCADA or TIA Portal visualization layers for live monitoring, alarm management, and remote diagnostics.

The motor’s compact frame — optimized for confined machine tool cabinets and robotic cell enclosures — does not compromise its network capability. The 1FK7032-5AK71-1LH0 integrates directly with the SINAMICS S120 booksize drive topology, sharing a common DC bus and synchronized clock signal across multi-axis configurations. This tight coupling with the SINAMICS drive family ensures that torque setpoints, speed references, and fault status data are exchanged at PROFINET IRT cycle times as low as 250 µs, supporting high-speed packaging lines, precision grinding machines, and multi-axis robotic welding cells.

From a system integration perspective, the 1FK7032-5AK71-1LH0 is validated for use alongside the SIMATIC ET 200SP remote I/O system, enabling distributed I/O expansion without additional gateway hardware. Sensor signals from proximity switches, encoders, and vision systems connected to ET 200SP modules are synchronized with servo motion commands, creating a unified data fabric across the production cell. This architecture eliminates data islands between field devices and the control layer, a common challenge in legacy automation environments where proprietary fieldbus protocols fragment the data landscape.

For facilities running SINUMERIK 840D sl or 828D CNC controllers, the 1FK7032-5AK71-1LH0 is a factory-matched servo axis motor. Its DRIVE-CLiQ plug-and-play identification allows the CNC to automatically read motor parameters — rated torque, encoder resolution, thermal limits — without manual configuration. This auto-commissioning capability reduces installation time and eliminates parameter entry errors, directly improving first-pass quality on new machine tool deployments. The motor’s integrated temperature sensor feeds thermal data back through the DRIVE-CLiQ cable to the SINAMICS S120 Control Unit, triggering predictive maintenance alerts in the SIMATIC WinCC OA or Mindsphere IoT platform before thermal overload conditions develop.

In distributed manufacturing environments, the 1FK7032-5AK71-1LH0 supports remote diagnostics through the SINAMICS S120 web server interface, accessible via standard Ethernet from any SCADA workstation or mobile HMI panel. Maintenance engineers can monitor real-time motor current, speed, and position data, review fault history logs, and initiate drive parameter backups without physical access to the control cabinet. This remote access capability is particularly valuable in multi-site production networks where centralized engineering teams support geographically distributed machine fleets.

The motor is also compatible with the SIMATIC S7-300 and S7-400 legacy PLC platforms via PROFIBUS DP when used with appropriate SINAMICS drive firmware, ensuring backward compatibility in brownfield automation upgrades. This protocol flexibility — spanning PROFINET, PROFIdrive, PROFIBUS, and DRIVE-CLiQ — makes the 1FK7032-5AK71-1LH0 a versatile connectivity asset across both greenfield smart factory builds and legacy system modernization projects.

Every unit supplied by ZYPLC undergoes pre-shipment functional verification, including encoder signal integrity checks, insulation resistance testing, and DRIVE-CLiQ communication handshake validation. Stock is maintained in our warehouse for immediate dispatch via DHL Express or FedEx International Priority, with full export documentation for customs clearance. All units are covered by a 12-month warranty against manufacturing defects, with technical support available throughout the warranty period.

Network Communication Table

Connected Automation Data Flow

The 1FK7032-5AK71-1LH0 sits at the intersection of motion control and industrial data communication. In a typical smart factory cell, the data flow begins at the field level: proximity sensors and linear encoders connected to a SIMATIC ET 200SP distributed I/O station capture position and speed reference signals. These signals are forwarded via PROFINET to the SIMATIC S7-1500 PLC, which executes motion control function blocks and issues torque and velocity setpoints to the SINAMICS S120 drive system over the same PROFINET backbone.

The SINAMICS S120 Control Unit (CU320-2 PN) receives these setpoints and translates them into DRIVE-CLiQ commands delivered directly to the 1FK7032-5AK71-1LH0 motor encoder interface. The motor’s built-in DRIVE-CLiQ encoder returns actual position, speed, and thermal data back to the CU320-2 PN at every control cycle — typically 125 µs in high-performance servo applications. This bidirectional data stream is simultaneously logged by the SINUMERIK 840D sl CNC controller for axis interpolation and by the WinCC SCADA system for production monitoring and alarm management.

At the edge layer, a SIMATIC IPC427E industrial PC running WinCC OA aggregates servo performance data from multiple 1FK7 axes across the production line. This data is forwarded to the Mindsphere cloud IoT platform via secure HTTPS, enabling predictive maintenance analytics and OEE (Overall Equipment Effectiveness) dashboards accessible to plant managers from any browser. The SIMATIC S7-1500 also communicates with upstream MES systems via OPC UA, closing the data loop from field sensor to enterprise reporting.

For multi-axis gantry and robotic applications, the 1FK7032-5AK71-1LH0 operates in synchronized motion groups managed by the SINAMICS S120 vector control firmware, with cross-axis position data shared via the SINAMICS drive-to-drive communication channel. SIMATIC HMI Comfort Panels provide operator-level visualization of axis status, alarm history, and maintenance counters directly on the machine floor, while remote engineers access the same data through the SINAMICS S120 integrated web server.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is protocol fragmentation — legacy machines running PROFIBUS DP, newer cells on PROFINET, and isolated CNC controllers with proprietary interfaces that cannot share data without custom gateway hardware. The 1FK7032-5AK71-1LH0, when deployed within the SINAMICS S120 and SIMATIC S7-1500 ecosystem, directly addresses this fragmentation by providing a unified PROFINET/PROFIdrive data layer that bridges field-level motion data with plant-level SCADA and MES systems.

In brownfield upgrade projects, the motor’s compatibility with PROFIBUS DP (via SINAMICS drive firmware) allows it to coexist with legacy S7-300 and S7-400 controllers without requiring immediate PLC replacement. This phased migration approach protects existing capital investment while progressively extending real-time data visibility across the plant. As new SIMATIC S7-1500 controllers are introduced, the same 1FK7032-5AK71-1LH0 servo axes migrate seamlessly to PROFINET without motor replacement, reducing upgrade costs and downtime.

Remote monitoring and diagnostics eliminate the need for on-site engineering visits for routine fault analysis. The SINAMICS S120 web server exposes motor current waveforms, encoder signal quality metrics, and drive fault codes to authorized users over standard Ethernet, enabling remote root-cause analysis within minutes of a fault event. Alarm notifications are forwarded via the WinCC SCADA alarm server to maintenance team mobile devices, ensuring rapid response regardless of shift or location.

Production line transparency is achieved through continuous data logging of servo performance KPIs — cycle time, peak torque utilization, thermal margin, and position accuracy — into the WinCC historian database. These datasets feed OEE calculation engines and support continuous improvement initiatives by identifying underperforming axes, recurring fault patterns, and opportunities for motion profile optimization. The result is a measurable reduction in unplanned downtime and a clear audit trail for quality management systems.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1FK7032-5AK71-1LH0 in a PROFINET IRT network?
When configured with SINAMICS S120 and PROFINET IRT (Isochronous Real-Time), the servo control cycle operates at 125–250 µs, with PROFINET IRT cycle times as low as 250 µs. This deterministic latency is sufficient for high-speed CNC interpolation, robotic path following, and synchronized multi-axis motion applications.

Q2: Is the 1FK7032-5AK71-1LH0 compatible with third-party SCADA systems beyond Siemens WinCC?
Yes. The SIMATIC S7-1500 PLC connected to this servo system supports OPC UA server functionality, enabling data exchange with any OPC UA-compliant SCADA, MES, or historian platform, including Ignition, FactoryTalk, and Wonderware. PROFINET IO data can also be accessed via standard Ethernet gateways for integration with non-Siemens control systems.

Q3: How is network stability maintained in high-vibration industrial environments?
The 1FK7032-5AK71-1LH0 uses a DRIVE-CLiQ connector with positive locking mechanism rated for industrial vibration and shock per IEC 60068-2. The PROFINET network infrastructure should use industrial-grade managed switches (e.g., SCALANCE X series) with RSTP/MRP ring redundancy to ensure network availability above 99.9% even in the event of a single cable fault.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every 1FK7032-5AK71-1LH0 unit supplied by ZYPLC is tested prior to shipment for encoder signal integrity, winding insulation resistance (≥100 MΩ at 500 VDC), DRIVE-CLiQ communication handshake, and mechanical shaft runout. The 12-month warranty covers manufacturing defects in materials and workmanship from the date of delivery. Warranty claims are supported by our technical team with replacement unit dispatch within 5 business days for confirmed defective units.
