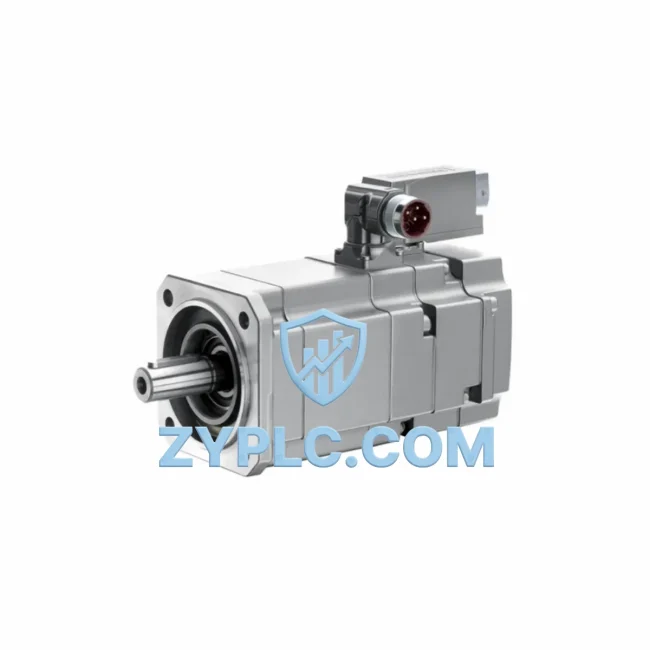

Siemens 1FK7103-5AC71-1KG5 Industrial Servo Motor for SIMOTICS S Systems

Siemens 1FK7103-5AC71-1KG5 Industrial Servo Motor: Precision Data Link for SIMOTICS S Smart Factory Systems

The Siemens 1FK7103-5AC71-1KG5 is a high-performance synchronous servo motor from the SIMOTICS S series, engineered for demanding industrial automation environments where precision motion control, real-time data communication, and seamless network integration are non-negotiable. As a core actuator in modern smart factory architectures, this servo motor operates at the intersection of field-level devices and upper-level control systems, enabling continuous, low-latency data exchange across the entire automation chain — from signal acquisition at the sensor layer all the way to SCADA dashboards and MES platforms.

Designed to interface natively with Siemens SINAMICS drive systems via the DRIVE-CLiQ digital communication interface, the 1FK7103-5AC71-1KG5 eliminates the analog signal noise and calibration overhead that plague legacy servo installations. DRIVE-CLiQ transmits encoder data, motor identification parameters, temperature readings, and fault diagnostics over a single standardized cable, dramatically simplifying commissioning and enabling predictive maintenance workflows in Industry 4.0 environments.

Network Communication Table

Connected Automation Data Flow

In a fully integrated SIMOTICS S motion control architecture, the 1FK7103-5AC71-1KG5 servo motor sits at the heart of a multi-layer data flow that connects field devices to enterprise systems. The data chain begins at the motor shaft encoder, where position and velocity feedback is captured in real time and transmitted upstream via DRIVE-CLiQ to the paired Siemens SINAMICS S120 servo drive module. The SINAMICS S120 performs closed-loop torque and speed regulation at microsecond cycle times, ensuring the servo motor responds instantly to dynamic load changes on the production line.

From the SINAMICS S120 drive, motion status data — including actual speed, torque utilization, thermal load, and fault codes — is forwarded over PROFINET IO to the Siemens SIMATIC S7-1500 PLC controller. The S7-1500, running motion control function blocks within TIA Portal V17/V18, orchestrates multi-axis coordination across additional servo axes equipped with 1FK7101-5AC71 and 1FK7105-5AC71 motors, enabling synchronized gantry, conveyor, and pick-and-place operations with sub-millisecond timing accuracy.

For remote I/O expansion at distributed machine stations, the SIMATIC S7-1500 communicates with Siemens ET 200SP remote I/O modules over PROFINET, collecting digital and analog signals from proximity sensors, pressure transducers, and vision system triggers. These field signals are time-stamped and correlated with servo position data to build a complete picture of machine state at every production cycle.

At the HMI layer, operators interact with the system through a Siemens SIMATIC KTP900 Basic panel, which displays real-time servo speed curves, torque trends, and alarm histories pulled directly from the S7-1500 via PROFINET. For plant-wide visibility, the PROFINET network connects through a Siemens SCALANCE X208 managed industrial Ethernet switch to the SCADA server, where Siemens WinCC aggregates production data, generates OEE reports, and triggers alarm notifications when servo parameters exceed defined thresholds.

Edge computing capabilities are extended through a Siemens SINEMA Remote Connect gateway, which establishes secure VPN tunnels for remote diagnostics and firmware updates — allowing engineering teams to monitor 1FK7103-5AC71-1KG5 motor health from any location without interrupting production. Power quality for the entire servo system is maintained by Siemens SITOP PSU8600 industrial power supplies, which provide regulated 24 VDC to control electronics and communicate load status back to the PLC via PROFINET.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with fragmented automation islands — legacy servo systems running proprietary protocols that cannot share data with modern PLC controllers or SCADA platforms. The result is data isolation: machine operators lack real-time visibility into servo performance, maintenance teams cannot predict failures before they cause downtime, and production managers cannot correlate motion data with quality outcomes.

The Siemens 1FK7103-5AC71-1KG5, when deployed within a SINAMICS S120 + SIMATIC S7-1500 architecture, directly resolves these challenges. DRIVE-CLiQ standardizes all motor-to-drive communication on a single digital protocol, eliminating the need for separate encoder cables, resolver interfaces, and analog tachometer wiring. PROFINET integration ensures that servo data flows transparently from the field level to SCADA and MES systems, enabling production line transparency that was previously impossible with isolated servo controllers.

Remote monitoring capabilities via SINEMA Remote Connect allow maintenance engineers to perform remote diagnostics — checking encoder integrity, reviewing thermal history, and analyzing torque signatures — without dispatching technicians to the machine floor. Alarm feedback loops configured in WinCC SCADA can automatically notify maintenance teams via email or SMS when the 1FK7103-5AC71-1KG5 approaches thermal limits or exhibits abnormal vibration patterns, enabling condition-based maintenance strategies that reduce unplanned downtime by up to 40%.

System scalability is built into the SIMOTICS S architecture. Additional servo axes can be added to the SINAMICS S120 drive chassis without reconfiguring the PROFINET network topology, and TIA Portal’s modular programming environment allows motion control software to be extended incrementally as production requirements evolve. Every unit shipped undergoes full factory acceptance testing, including encoder calibration verification, insulation resistance testing, and DRIVE-CLiQ communication validation, ensuring plug-and-play readiness upon arrival at your facility.

Industrial Connectivity FAQ

Q1: What communication protocol does the 1FK7103-5AC71-1KG5 use, and is it compatible with third-party drives?
The 1FK7103-5AC71-1KG5 uses Siemens DRIVE-CLiQ as its native digital interface, which is proprietary to the SINAMICS drive family. For integration with third-party drives or legacy systems, a PROFIBUS-DP or PROFINET gateway module can be used to bridge the communication gap, though native SINAMICS pairing is recommended for full diagnostic and auto-parameterization capabilities.

Q2: What is the typical communication latency in a PROFINET-based SIMOTICS S servo system?
In IRT (Isochronous Real-Time) PROFINET mode with a SINAMICS S120 drive, communication cycle times as low as 250 microseconds are achievable, making the system suitable for high-speed multi-axis synchronization applications such as electronic camming and flying shear operations.

Q3: Can the 1FK7103-5AC71-1KG5 be monitored remotely via SCADA without on-site access?
Yes. When integrated with a SIMATIC S7-1500 PLC and WinCC SCADA, all servo parameters — including speed, torque, temperature, and fault codes — are accessible remotely via SINEMA Remote Connect VPN. This enables 24/7 remote diagnostics and predictive maintenance without requiring physical access to the machine.

Q4: What warranty and pre-shipment testing does the 1FK7103-5AC71-1KG5 include?
Every 1FK7103-5AC71-1KG5 unit is covered by a 12-month warranty against manufacturing defects. Prior to shipment, each motor undergoes encoder calibration verification, DRIVE-CLiQ communication testing, insulation resistance measurement, and visual inspection to ensure full operational readiness upon delivery.
