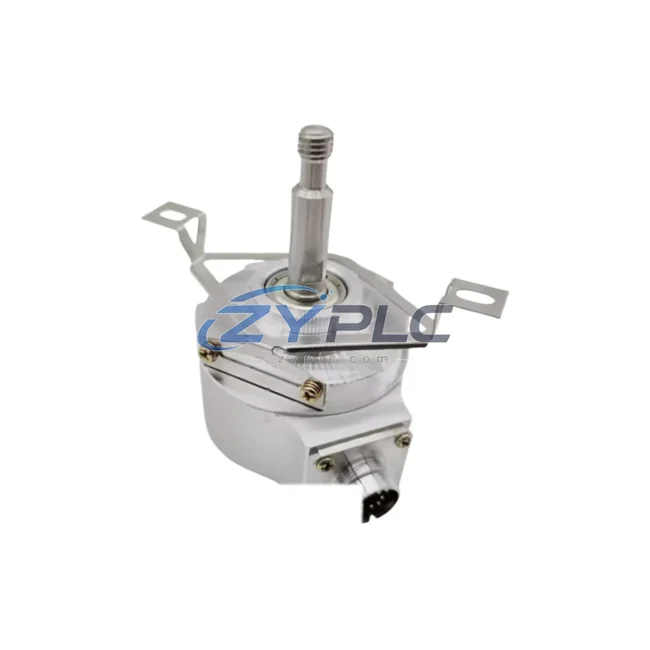

Siemens 1XP8001-1/1024 Incremental Encoder

Siemens 1XP8001-1/1024 Incremental Encoder: Precision Feedback for Efficient Motor Control and Production Line Optimization

The Siemens 1XP8001-1/1024 is a high-resolution incremental encoder from the 1XP series, engineered to deliver precise rotational feedback that forms the backbone of energy-efficient motor control in modern industrial automation. With 1024 pulses per revolution (PPR), this encoder enables drive systems to operate at optimal efficiency points, eliminating unplanned downtime risk caused by imprecise speed regulation, torque overshoot, and uncontrolled motor ramp-up cycles. In production environments where uptime and replacement lead time matter, the 1XP8001-1/1024 plays a critical role in reducing idle energy draw, improving cycle time accuracy, and extending the operational lifespan of connected drive components.

Designed for seamless integration with Siemens SINAMICS frequency inverters — including the SINAMICS G120 and SINAMICS S120 series — the 1XP8001-1/1024 provides closed-loop speed and position feedback that allows the drive to continuously adjust output power in real time. This dynamic regulation prevents the unplanned downtime associated with open-loop control, where motors frequently run above the required load. When paired with a SIMATIC S7-1500 PLC or S7-300 controller, the encoder signal feeds directly into motion control routines, enabling precise synchronization of multi-axis systems and reducing the mechanical stress that leads to unplanned downtime.

In conveyor and packaging lines, the 1XP8001-1/1024 supports accurate belt speed monitoring that allows the SINAMICS G120C drive to modulate motor torque according to actual load demand rather than fixed setpoints. This load-adaptive control strategy can help restore stable operation when a compatible replacement is required.

Product Specification Table

System Compatibility and Application

The 1XP8001-1/1024 sits at the intersection of sensing and control in an industrial automation system. Its high-resolution pulse output integrates directly with the encoder interface modules of the SINAMICS S120 booksize drive unit, where the CU320-2 Control Unit processes feedback signals to execute vector control algorithms with sub-millisecond response times. This tight feedback loop ensures that the drive delivers only the torque required by the load at any given moment — a fundamental principle of energy-efficient motor operation.

For distributed I/O architectures, the encoder signal can be routed through a SIMATIC ET 200SP I/O station equipped with a technology module for high-speed counter inputs, allowing the S7-1500 controller to perform real-time position tracking without burdening the main CPU scan cycle. This architecture supports multi-drive coordination across production cells, where the 1XP8001-1/1024 on each motor axis provides the positional data needed for synchronized motion profiles that minimize acceleration energy peaks.

In condition monitoring applications, the encoder data complements power measurement from a SENTRON PAC3200 power monitoring device. By correlating shaft speed and position data from the 1XP8001-1/1024 with real-time power consumption readings from the SENTRON PAC, engineers can calculate actual motor efficiency curves, identify operating points where efficiency drops below acceptable thresholds, and schedule maintenance before efficiency degradation leads to measurable energy cost increases.

The encoder also integrates with SIMATIC WinCC SCADA systems via the S7 controller, enabling operators to visualize motor speed trends, detect abnormal speed fluctuations that indicate mechanical wear, and correlate these events with operating load spikes captured by the SENTRON PAC3200. This data-driven approach to maintenance planning transforms the 1XP8001-1/1024 from a simple feedback device into a key node in a plant-wide maintenance planning network.

For safety-critical applications, the 1XP8001-1/1024 can be used alongside a SINAMICS Safety Integrated function block within the S120 drive, where encoder feedback is used to enforce safe speed limits (SLS) and safe direction monitoring (SDI) without requiring additional safety hardware. This integration reduces panel complexity, lowers installation costs, and contributes to overall system energy efficiency by eliminating redundant safety relay circuits.

Maintenance and Replacement Notes

In a typical automotive body shop, servo axes controlling welding gun positioning rely on accurate encoder feedback to execute precise, repeatable motion profiles. When the 1XP8001-1/1024 is installed on the servo motor shaft and connected to a SINAMICS S120 drive operating in closed-loop servo mode, the drive can execute optimized velocity profiles — trapezoidal or S-curve ramps — that minimize peak current draw during acceleration phases. Across hundreds of welding cycles per shift, this reduction in peak demand translates directly into lower energy costs and reduced stress on the plant’s power distribution infrastructure.

In pump and compressor applications, the encoder enables the SINAMICS G120 drive to implement pressure-based PID control, where motor speed is continuously adjusted to maintain target system pressure without the unplanned downtime of throttling valves or bypass circuits. A pump running at 70% speed consumes approximately 34% of the energy required at full speed (following the affinity laws), and the 1XP8001-1/1024 provides the speed feedback accuracy needed to maintain this operating point reliably across varying load conditions.

For textile and winding machinery, precise tension control depends on accurate speed differential measurement between drive rollers. The 1XP8001-1/1024 mounted on each roller axis feeds speed data to the SIMATIC S7-1500 motion controller, which calculates tension based on speed ratios and adjusts drive torque setpoints accordingly. This eliminates material waste from tension errors and reduces motor load by preventing the torque fighting that occurs when drives operate without coordinated feedback.

Predictive maintenance benefits are equally significant. By monitoring the encoder’s signal quality and comparing actual speed profiles against baseline data stored in the SIMATIC S7 controller, maintenance teams can detect bearing wear, coupling misalignment, and rotor imbalance at early stages — before these conditions cause efficiency losses or catastrophic failures. Each unit shipped from our facility undergoes full functional testing, including signal integrity verification across all output channels, before dispatch. All products are covered by a warranty terms confirmed during quotation, and our inventory is maintained to support rapid fulfillment for both planned procurement and urgent replacement requirements.

Product Sourcing FAQ

Q1: How does the 1XP8001-1/1024 contribute to measurable operational stability in drive applications?
By providing 1024 PPR closed-loop feedback to the SINAMICS drive, the encoder enables the drive to operate in vector control mode, where motor flux and torque are independently regulated. This eliminates the abnormal load draw inherent in open-loop V/f control and allows the drive to reduce motor magnetization during light-load periods, resulting in operational stability of Actual operating results depend on the installed system, load profile, and commissioning parameters.

Q2: Is the 1XP8001-1/1024 compatible with non-Siemens drive systems?
Yes. The 1XP8001-1/1024 outputs standard HTL or TTL incremental signals (A, B, Z) that are compatible with most industrial frequency inverters and servo drives that accept incremental encoder feedback, including systems from ABB, Schneider Electric, and Yaskawa. Signal voltage and termination requirements should be verified against the target drive’s encoder interface specifications before installation.

Q3: What is the recommended replacement procedure when substituting a failed encoder on a running production line?
For minimal downtime, the replacement 1XP8001-1/1024 should be pre-configured with the same PPR setting and output type as the original unit. After mechanical installation, the drive’s encoder offset parameter (P0410 in SINAMICS G120) should be re-executed to re-establish the zero reference. Full functional testing — including speed ramp verification and signal quality check — should be completed before returning the axis to production. Our team performs pre-shipment functional testing on all units to ensure they are ready for immediate installation.

Q4: What does the warranty terms confirmed during quotation cover, and what is the support process?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are eligible for replacement or repair. To initiate a warranty claim, contact our technical support team with the unit’s serial number, installation date, and a description of the failure mode. We review availability by RFQ to support warranty-related replacement planning, minimizing production downtime for our customers.
