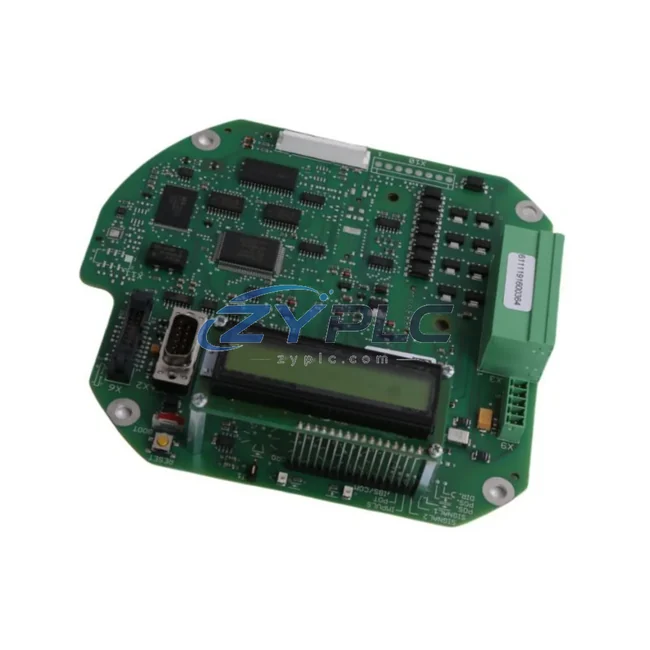

The Siemens 2SY5010-0LB05 is a dedicated actuator control module engineered for seamless integration within the SIPOS 5 electric actuator platform. In modern industrial automation, no component operates in isolation — every actuator control module occupies a defined position within a layered control hierarchy that spans from the field level to the supervisory control layer. The 2SY5010-0LB05 is designed precisely for this role: to serve as the intelligent interface between the mechanical actuator drive and the broader control system architecture, ensuring reliable signal transmission, consistent feedback loops, and long-term operational stability across demanding process environments.

Within a complete automation architecture, the 2SY5010-0LB05 connects the SIPOS 5 actuator to upstream controllers such as a Siemens SIMATIC S7-300 or S7-400 PLC, or a SIMATIC PCS 7 distributed control system. The module receives positioning commands from the control layer, executes precise valve or damper movements, and returns real-time position feedback and diagnostic data — forming a closed-loop control chain that is essential for process accuracy and system reliability. This bidirectional communication capability makes the 2SY5010-0LB05 a cornerstone component in any architecture where actuator responsiveness and traceability are critical.

From a system architecture perspective, the 2SY5010-0LB05 operates at the field device layer, interfacing upward to the I/O layer through standard analog or digital signal channels, and further to the network layer via PROFIBUS DP or PROFINET communication protocols supported by the SIPOS 5 platform. This multi-layer connectivity ensures that the actuator control module can be fully integrated into both legacy PROFIBUS-based installations and modern PROFINET-enabled architectures without requiring significant rewiring or controller reconfiguration. The result is a module that supports both greenfield deployments and brownfield upgrades with equal effectiveness.

System designers working with the SIPOS 5 platform will recognize the 2SY5010-0LB05 as a direct companion to components such as the SIPOS 5 Flash (2SY5000 series) actuator drives, the SIPOS COM (2SY5400 series) communication adapters, and the SIPOS Parameterization Tool software suite. When combined with a Siemens ET 200SP distributed I/O station or an ET 200M remote I/O rack, the module enables decentralized control architectures where actuator intelligence is distributed across the plant floor rather than concentrated in a central cabinet. This decentralization reduces wiring complexity, shortens signal paths, and improves overall system response time — all critical factors in high-throughput process industries.

In terms of power architecture, the 2SY5010-0LB05 is designed to operate within the standard power supply framework of the SIPOS 5 system, compatible with 24 VDC auxiliary power supplies such as the Siemens SITOP PSU100S series. Proper power layer design — including redundant power feeds and appropriate surge protection — ensures that the actuator control module maintains continuous operation even during grid disturbances, a requirement that is non-negotiable in critical process applications such as chemical dosing, steam valve control, or emergency shutdown systems.

For human-machine interface integration, the 2SY5010-0LB05 supports status and diagnostic data that can be visualized on Siemens SIMATIC HMI panels such as the KTP700 Basic or TP1200 Comfort series, or within WinCC SCADA environments. Operators can monitor actuator position, torque limits, fault states, and maintenance intervals directly from the control room, enabling proactive maintenance scheduling and reducing unplanned downtime. This transparency between the field device layer and the HMI layer is a defining characteristic of a well-engineered SIPOS 5 architecture.

Redundancy is another dimension where the 2SY5010-0LB05 contributes to system resilience. In applications requiring high availability — such as power generation, water treatment, or oil and gas processing — the SIPOS 5 platform supports redundant communication paths and fail-safe positioning modes. The 2SY5010-0LB05 can be configured to hold its last valid position or move to a defined safe position upon loss of communication, ensuring that process safety is maintained even in the event of a network or controller fault. This behavior aligns with IEC 61511 functional safety requirements commonly applied in process industries.

From an engineering and commissioning standpoint, the 2SY5010-0LB05 simplifies startup through its compatibility with the SIPOS Parameterization Tool, which allows engineers to configure torque limits, travel limits, speed profiles, and communication addresses without specialized hardware. Firmware updates can be applied remotely, and diagnostic logs can be extracted for root cause analysis — capabilities that significantly reduce commissioning time and ongoing maintenance costs over the product lifecycle.

Long-term supply chain reliability is a practical concern for any plant engineering team. The 2SY5010-0LB05 is stocked and available for shipment arranged after confirmation, with full traceability documentation and a warranty terms confirmed during quotation covering manufacturing defects and functional performance. Whether you are replacing a failed module in an operating plant or building out a new control system, the availability of genuine, tested components with documented warranty coverage is essential for maintaining system integrity and meeting audit requirements.

In summary, the Siemens 2SY5010-0LB05 is not simply an actuator control module — it is a system-compatible component that enables consistent, scalable, and maintainable actuator control across the full SIPOS 5 architecture. Its compatibility with SIMATIC PLCs, PCS 7 DCS, ET 200 distributed I/O, PROFIBUS and PROFINET networks, SITOP power supplies, and SIMATIC HMI platforms makes it a versatile and indispensable element of any industrial control system designed for long-term operational excellence.

Product Specification Table

System Compatibility Notes

The 2SY5010-0LB05 achieves its full potential when deployed as part of a coordinated SIPOS 5 control system. A typical architecture integrating this module includes the following components working in concert:

At the controller level, a Siemens SIMATIC S7-400 CPU (e.g., CPU 414-3 PN/DP) or a SIMATIC PCS 7 AS 412 automation server issues positioning setpoints to the actuator via PROFIBUS DP. The SIPOS COM (2SY5400 series) communication adapter translates these commands into the SIPOS 5 native protocol, which the 2SY5010-0LB05 executes with precision. For distributed I/O architectures, an ET 200M IM 153-2 remote I/O station can be used to extend the PROFIBUS segment to field cabinets located far from the main control room, reducing cable runs and improving signal integrity.

Power distribution for the actuator control layer is typically managed through a Siemens SITOP PSU100S 24V/10A power supply module, which provides stable 24 VDC auxiliary power to the 2SY5010-0LB05 and associated I/O modules. In redundant power architectures, a SITOP UPS1600 uninterruptible power supply can be added to ensure continuous operation during mains power interruptions — a critical requirement in emergency shutdown and safety instrumented system applications.

At the HMI layer, a Siemens SIMATIC TP1200 Comfort Panel running WinCC Comfort software provides operators with real-time visualization of actuator position, torque curves, and fault diagnostics. For plant-wide SCADA integration, the actuator data from the 2SY5010-0LB05 is aggregated through a WinCC V7 SCADA server, enabling trend analysis, alarm management, and maintenance reporting across multiple actuator loops simultaneously.

Terminal connections between the 2SY5010-0LB05 and the control cabinet are made using Siemens SIRIUS 3RT relay modules for motor starter interlocking and Phoenix Contact PTFIX terminal blocks for signal distribution — ensuring clean, traceable wiring that simplifies both commissioning and future maintenance activities.

Industrial Application Notes

The Siemens 2SY5010-0LB05 finds application across a broad range of process industries where precise, reliable actuator control is essential to operational safety and efficiency.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 2SY5010-0LB05 controls steam inlet valves, cooling water dampers, and fuel flow regulators. Its ability to maintain precise positioning under high-cycle operation and its robust diagnostic capabilities make it well-suited for the demanding thermal and mechanical environment of power plant auxiliary systems.

In petrochemical and refinery applications, the module manages control valves in distillation columns, heat exchanger bypass loops, and product transfer pipelines. The PROFIBUS DP communication capability allows the 2SY5010-0LB05 to be integrated directly into existing DCS architectures without gateway devices, reducing latency and improving control loop performance in critical separation and reaction processes.

In water and wastewater treatment plants, the 2SY5010-0LB05 controls inlet gates, sluice valves, and chemical dosing actuators. Its IP67 protection rating and wide operating temperature range make it suitable for outdoor installation in pump stations and treatment basins, where exposure to moisture, dust, and temperature extremes is unavoidable.

In mining and mineral processing operations, the module is used to control ore slurry valves, conveyor diverters, and flotation cell actuators. The ability to configure fail-safe positioning modes ensures that actuators move to a defined safe position in the event of a control system fault, preventing material spillage and equipment damage in high-value processing circuits.

In packaging and discrete manufacturing lines, the 2SY5010-0LB05 provides precise positioning for filling nozzles, labeling applicators, and product diverter gates. Its fast response time and high positioning repeatability support the high-throughput, high-accuracy requirements of modern automated packaging systems.

Product Compatibility FAQ

Q1: Is the Siemens 2SY5010-0LB05 compatible with both PROFIBUS DP and PROFINET architectures?
The 2SY5010-0LB05 is natively designed for the SIPOS 5 platform, which supports PROFIBUS DP communication. PROFINET integration is achievable through the SIPOS COM (2SY5400 series) communication adapter, which acts as a protocol gateway between the PROFINET network and the SIPOS 5 actuator bus. This makes the module compatible with both legacy PROFIBUS installations and modern PROFINET-based SIMATIC S7-1500 or PCS 7 v9.x architectures without requiring actuator replacement.

Q2: What configuration tools are required to commission the 2SY5010-0LB05, and can parameters be adjusted remotely?
Commissioning the 2SY5010-0LB05 requires the SIPOS Parameterization Tool software, which is available as a free download from the Siemens Industry Online Support portal. The tool connects to the module via a USB service interface or through the PROFIBUS network, allowing engineers to set torque limits, travel end positions, speed profiles, and communication node addresses. Remote parameter adjustment is supported via the PROFIBUS DP interface when the module is online, enabling configuration changes without physical access to the actuator — a significant advantage in hazardous area installations.

Q3: What does the warranty terms confirmed during quotation cover, and what documentation is provided with the 2SY5010-0LB05?
The warranty terms confirmed during quotation covers manufacturing defects and functional performance failures under normal operating conditions as specified in the SIPOS 5 technical documentation. Each unit is supplied with a test report confirming functional verification prior to dispatch, along with a certificate of conformity and full traceability documentation. In the event of a warranty claim, replacement units are dispatched promptly to minimize plant downtime. Extended warranty and spare parts stocking agreements are available upon request for customers with critical process applications requiring guaranteed component availability.
