Siemens 2SY5016-1SB00 Actuator Control Board for SIPOS 5 Systems

Siemens 2SY5016-1SB00 Industrial Network Interface for SIPOS 5 Systems: Bridging Field Devices and Smart Factory Data Links

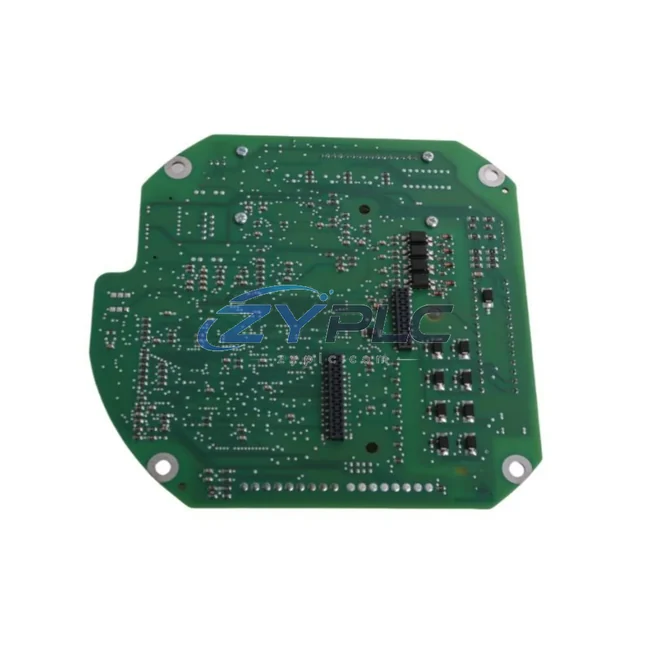

The Siemens 2SY5016-1SB00 is a precision-engineered actuator control board designed for the SIPOS 5 electric actuator platform — one of Siemens’ most trusted series for valve automation in process industries. Far beyond a simple replacement board, the 2SY5016-1SB00 functions as the intelligent communication core of the actuator, enabling seamless data exchange between field-level valve actuators and upper-level control systems including PLCs, DCS, SCADA, and HMI platforms. In smart factory and process automation environments where data integrity, real-time feedback, and remote diagnostics are non-negotiable, this control board delivers the connectivity backbone that modern industrial sites demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory architecture, the Siemens 2SY5016-1SB00 sits at the critical junction between physical valve actuation and digital process control. The data flow begins at the field level: the SIPOS 5 actuator receives a positioning command from a Siemens S7-300 or S7-400 PLC via PROFIBUS DP. The 2SY5016-1SB00 control board interprets this command, drives the actuator motor to the target position, and simultaneously transmits real-time feedback — including valve position, torque load, and operational status — back upstream through the same PROFIBUS network.

This bidirectional data stream feeds directly into a Siemens SIMATIC S7-1500 controller or a distributed control system such as the Siemens PCS 7 DCS platform, where process engineers monitor valve states across hundreds of control loops. The SIMATIC WinCC SCADA system aggregates this data, presenting operators with live dashboards of valve positions, alarm states, and actuator health metrics. When a torque overload or position deviation is detected, the 2SY5016-1SB00 generates a diagnostic telegram that propagates through the PROFIBUS segment to the SIMATIC ET 200SP remote I/O station, triggering an alarm on the operator’s HMI panel — often a Siemens SIMATIC TP1200 Comfort Panel — within milliseconds.

For sites running HART-enabled instrumentation alongside PROFIBUS infrastructure, the 2SY5016-1SB00 supports HART communication overlaid on the 4–20 mA signal loop, allowing asset management tools such as Siemens SIMATIC PDM (Process Device Manager) to perform remote parameterization, calibration verification, and predictive maintenance scheduling without interrupting the live process. This capability is especially valuable in chemical plants, water treatment facilities, and oil and gas pipelines where physical access to field devices is restricted or hazardous.

At the network transport layer, the PROFIBUS DP segment carrying the 2SY5016-1SB00’s data is typically connected to a Siemens SCALANCE X208 industrial Ethernet switch, which bridges the fieldbus segment to the plant’s Industrial Ethernet backbone. From there, data flows to edge computing nodes running Siemens MindSphere or similar IIoT platforms, enabling cloud-based analytics, energy consumption monitoring, and long-term trend analysis of actuator performance across the entire facility. The integration of the 2SY5016-1SB00 into this layered architecture — from field device through remote I/O, PLC, SCADA, and up to the cloud — exemplifies the connected automation data flow that defines Industry 4.0 deployments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy process plants is protocol fragmentation: actuators from different generations or manufacturers speak incompatible communication languages, creating data silos that prevent unified monitoring and control. The Siemens 2SY5016-1SB00 directly addresses this problem within the SIPOS 5 ecosystem by providing a standardized PROFIBUS DP interface that integrates natively with Siemens’ broader automation portfolio, eliminating the need for third-party protocol converters or custom gateway configurations.

Sites that previously relied on hardwired binary signals — open/close/fault — for actuator feedback can upgrade to the 2SY5016-1SB00 and immediately gain access to rich diagnostic data: exact valve position in degrees or percentage, accumulated operating cycles, motor temperature trends, and torque signature analysis. This data transparency transforms reactive maintenance into predictive maintenance, reducing unplanned downtime and extending actuator service life.

Remote monitoring is another area where the 2SY5016-1SB00 delivers measurable value. In geographically distributed facilities such as pipeline pump stations or offshore platforms, the ability to remotely diagnose an actuator fault — identifying whether the issue is mechanical (torque overload), electrical (motor fault), or positional (encoder drift) — without dispatching a field technician saves significant operational cost. The PROFIBUS diagnostic data generated by the 2SY5016-1SB00 can be accessed through any SCADA terminal connected to the plant network, enabling remote engineers to assess actuator health and authorize maintenance actions from a central control room.

For production line transparency, the 2SY5016-1SB00 enables real-time valve state reporting that feeds into MES (Manufacturing Execution Systems) and ERP platforms, providing production managers with accurate data on process flow states, batch completion signals, and equipment availability. System expansion is equally straightforward: additional SIPOS 5 actuators equipped with 2SY5016-1SB00 boards can be added to an existing PROFIBUS segment without reconfiguring the network architecture, supporting phased capacity expansions with minimal engineering effort.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 2SY5016-1SB00 support, and is it compatible with existing PROFIBUS networks?
The 2SY5016-1SB00 supports PROFIBUS DP as its primary fieldbus protocol, along with HART communication for asset management applications. It is fully compatible with existing PROFIBUS DP networks operating at standard baud rates up to 12 Mbit/s, and integrates without modification into Siemens S7 PLC environments, PCS 7 DCS systems, and third-party PROFIBUS masters that conform to the IEC 61158 standard.

Q2: How does the 2SY5016-1SB00 ensure network stability and minimize communication latency in time-critical process control applications?
The board’s PROFIBUS DP interface operates in a deterministic polling cycle, ensuring that actuator position and status data is updated within the PLC scan cycle — typically 1–10 ms depending on network configuration and segment load. The 2SY5016-1SB00 maintains communication stability through built-in watchdog functions that detect bus interruptions and place the actuator in a safe fail-state, preventing uncontrolled valve movement during network faults.

Q3: Can the 2SY5016-1SB00 be used for remote diagnostics and predictive maintenance without interrupting live process operations?
Yes. The HART communication capability of the 2SY5016-1SB00 allows asset management tools such as Siemens SIMATIC PDM to perform background diagnostics — reading torque curves, position accuracy data, and motor health parameters — while the actuator remains in active service. PROFIBUS diagnostic telegrams also provide continuous health monitoring data accessible from any SCADA or DCS workstation on the network, enabling predictive maintenance scheduling without process interruption.

Q4: What quality assurance and warranty coverage is provided with the 2SY5016-1SB00?
Every 2SY5016-1SB00 unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication interface verification, I/O signal integrity checks, and firmware version confirmation. All units are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Availability is confirmed via RFQ for shipment arranged after confirmation with full documentation support.
