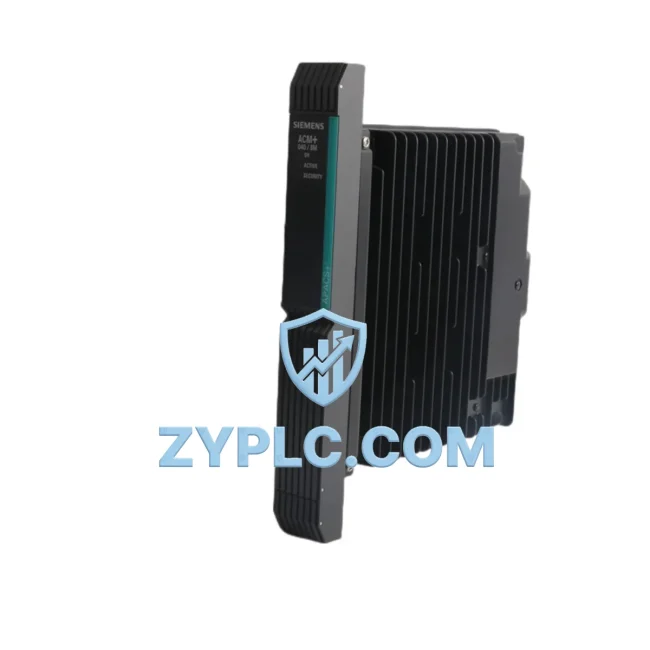

Siemens 39ACM28AEN Communication Gateway for SINUMERIK Systems

Siemens 39ACM28AEN Industrial Network Interface: Powering Smart Factory Data Links for SINUMERIK Systems

The Siemens 39ACM28AEN (SKU: 39ACM28AEN 16139-218/3) is a high-performance Profibus Communication Gateway engineered for seamless integration within SINUMERIK CNC automation environments. As industrial facilities accelerate their transition toward smart manufacturing, the demand for reliable, real-time data exchange between field devices, controllers, and supervisory systems has never been greater. The 39ACM28AEN addresses this need directly — bridging the gap between legacy field instrumentation and modern industrial Ethernet architectures with precision and stability.

Designed to operate within Siemens’ proven SINUMERIK ecosystem, this communication gateway enables deterministic Profibus DP data transmission across multi-node networks, supporting high-speed cyclic data exchange between CNC controllers, remote I/O stations, servo drives, and HMI panels. Whether deployed in a standalone machining cell or integrated into a plant-wide SCADA network, the 39ACM28AEN delivers the connectivity backbone that modern industrial data flows demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical SINUMERIK-based smart factory deployment, the Siemens 39ACM28AEN sits at the heart of the field-level communication layer. Signal acquisition begins at the sensor and actuator level — proximity switches, pressure transducers, and encoder feedback units transmit raw process data upward through the Profibus DP network. The 39ACM28AEN aggregates this data and forwards it in structured, time-stamped frames to the SINUMERIK CNC controller, ensuring that machining parameters, axis positions, and spindle states are continuously synchronized.

Within the same network segment, Siemens SIMATIC ET 200S and ET 200M remote I/O modules serve as distributed signal collection points, feeding digital and analog I/O data into the Profibus backbone managed by the 39ACM28AEN. Upstream, Siemens S7-300 and S7-400 PLCs act as Profibus DP masters, orchestrating the cyclic polling of all slave devices — including the 39ACM28AEN — to maintain deterministic scan cycles critical for CNC precision.

For drive-level integration, Siemens SINAMICS S120 servo drive systems connect to the same Profibus segment, enabling the 39ACM28AEN to relay torque commands, speed references, and fault status between the CNC controller and the drive units in real time. This tight coupling eliminates latency-induced positioning errors and supports coordinated multi-axis motion profiles.

At the HMI layer, Siemens SINUMERIK Operate panels and TP1200 Comfort HMI terminals receive live process visualization data routed through the gateway, allowing operators to monitor spindle loads, feed rates, and alarm states without leaving the machine interface. Simultaneously, the 39ACM28AEN supports acyclic data services, enabling parameterization and diagnostic reads from connected SIMATIC S7-1500 controllers via the Profibus DP/V1 protocol extension.

At the supervisory level, Siemens WinCC SCADA and WinCC OA platforms aggregate data from multiple 39ACM28AEN gateways across the production floor, building a unified real-time view of machine utilization, cycle times, and fault histories. Edge gateway devices — such as the Siemens SINEMA Remote Connect infrastructure — further extend this data flow to cloud-based analytics platforms, enabling predictive maintenance and OEE dashboards without disrupting the Profibus network’s deterministic behavior.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy manufacturing environments is data isolation — islands of automation where CNC machines, PLCs, drives, and sensors operate independently with no unified communication layer. The Siemens 39ACM28AEN directly resolves this by acting as a protocol-aware gateway that normalizes Profibus DP traffic and makes it accessible to higher-level systems without requiring costly infrastructure overhauls.

Protocol Unification: Many production sites run a mix of Profibus DP, MPI, and Industrial Ethernet segments. The 39ACM28AEN bridges these boundaries, allowing SINUMERIK CNC data to flow into SCADA systems that natively speak OPC-UA or Modbus TCP — eliminating the need for custom middleware or proprietary protocol converters.

Remote Monitoring and Diagnostics: With the 39ACM28AEN integrated into the network, maintenance engineers can perform remote diagnostic reads on connected devices — checking drive fault registers, I/O module status, and CNC alarm buffers — without physical access to the machine cabinet. This capability dramatically reduces mean time to repair (MTTR) and supports predictive maintenance workflows.

Production Line Transparency: By centralizing Profibus data through the 39ACM28AEN, plant managers gain real-time visibility into every node on the network — from individual sensor states to aggregate machine OEE metrics — enabling data-driven decisions on scheduling, maintenance, and capacity planning.

System Scalability: The modular architecture of the SINUMERIK platform means that additional remote I/O stations, drive nodes, or HMI terminals can be added to the Profibus segment managed by the 39ACM28AEN without reconfiguring the entire network. This plug-and-expand capability supports phased factory upgrades and minimizes production downtime during system expansions.

Pre-Shipment Testing: Every Siemens 39ACM28AEN unit supplied by ZYPLC undergoes functional verification prior to dispatch, including communication link testing and protocol handshake validation, ensuring that the module arrives ready for immediate integration into your SINUMERIK environment.

Industrial Connectivity FAQ

Q1: What is the communication latency of the Siemens 39ACM28AEN on a Profibus DP network?
The 39ACM28AEN supports Profibus DP cyclic data exchange at baud rates up to 12 Mbit/s, delivering deterministic cycle times typically in the sub-millisecond range for small node counts. Actual latency depends on the number of slaves, data volume per cycle, and master configuration — all of which can be optimized through the SINUMERIK commissioning tools.

Q2: Is the 39ACM28AEN compatible with both S7-300/400 and S7-1500 PLC platforms?
Yes. The 39ACM28AEN operates as a Profibus DP slave and is compatible with any Profibus DP master, including Siemens S7-300, S7-400, and S7-1500 PLCs configured with CP 342-5 or integrated Profibus interfaces. It also supports DP/V1 acyclic services for parameterization from S7-1500 controllers.

Q3: How does the 39ACM28AEN support network stability in high-vibration CNC environments?
The module is designed to Siemens’ industrial-grade hardware standards, with robust connector interfaces and firmware-level error recovery mechanisms. In the event of a transient communication fault, the gateway automatically re-establishes the Profibus DP connection without requiring a controller restart, maintaining production continuity.

Q4: What warranty and after-sales support does ZYPLC provide for the Siemens 39ACM28AEN?
All Siemens 39ACM28AEN units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch via DHL or FedEx international express. Our technical team provides pre-sales compatibility consultation and post-sales integration support. Contact us at plc.sales@zyplc.com or +86 19859288691 for RFQ and availability.
