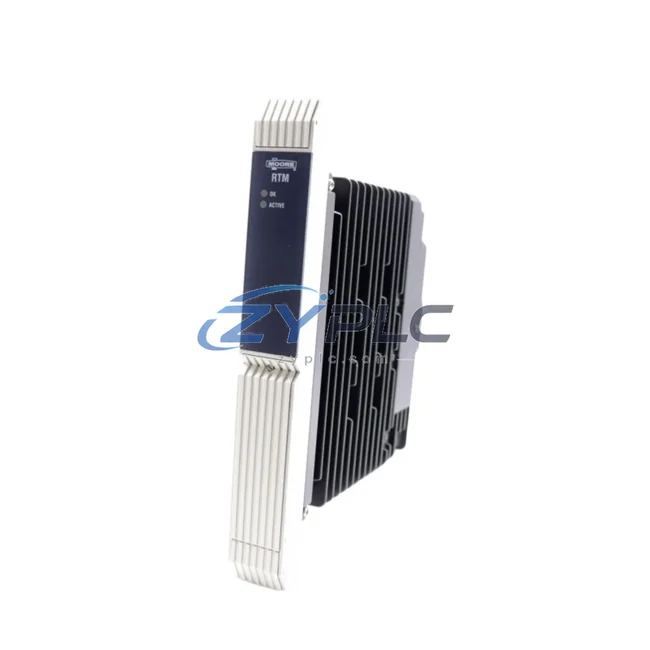

Siemens 39RTMCAN 16207-61/13 RTM for TELEPERM M

Siemens 39RTMCAN 16207-61/13 RTM for TELEPERM M: Compatibility and Replacement Notes

The Siemens 39RTMCAN 16207-61/13 Resistance Temperature Module (RTM) is a precision signal acquisition component engineered for seamless integration within the TELEPERM M distributed control system (DCS) architecture. Rather than functioning as a standalone measurement device, this module occupies a critical position within the multi-layer automation hierarchy — bridging the field instrumentation layer and the process control layer to deliver consistent, high-fidelity temperature data across the entire control loop. In complex industrial environments where process stability and system uptime are non-negotiable, the 39RTMCAN 16207-61/13 provides the signal conditioning and system integration capabilities that modern DCS architectures demand.

Within the TELEPERM M platform, the RTM module operates as part of a coordinated signal chain. Temperature sensors — typically Pt100 or Pt1000 resistance thermometers — feed raw resistance signals into the 39RTMCAN, which converts and conditions these signals before transmitting structured process values to the central processing units. This upstream-to-downstream signal flow is fundamental to maintaining loop integrity across temperature-critical processes in power generation, chemical processing, and refinery operations. The module’s design ensures that signal acquisition at the field level is tightly synchronized with the control decisions made at the CPU layer, reducing latency and improving closed-loop response times.

System architects integrating the 39RTMCAN 16207-61/13 into a TELEPERM M installation benefit from its compatibility with the platform’s modular rack and backplane infrastructure. The module slots into standard TELEPERM M subrack assemblies, sharing the internal bus with adjacent I/O modules, power supply units, and communication processors. This physical and electrical integration eliminates the need for external signal converters or protocol bridges, simplifying cabinet layouts and reducing potential failure points. For facilities managing large-scale DCS installations with hundreds of I/O channels, this level of native compatibility directly translates to lower engineering hours during commissioning and reduced maintenance complexity over the system lifecycle.

Product Specification Table

System Compatibility Notes

The 39RTMCAN 16207-61/13 does not operate in isolation — its value is fully realized when considered within the broader TELEPERM M system architecture. At the CPU layer, Siemens TELEPERM M central processing units (such as the AS 235 or AS 488/TM automation systems) receive the conditioned temperature values from the RTM module and execute the configured control strategies. These CPUs rely on accurate, low-noise input data to maintain PID loop stability, and the 39RTMCAN’s signal conditioning directly supports this requirement.

At the power layer, TELEPERM M power supply modules provide the regulated DC voltage distributed across the subrack backplane to all installed modules, including the 39RTMCAN. Proper power architecture — including redundant power supply configurations where required — ensures that temperature measurement continuity is maintained even during partial power events. Engineers specifying systems for high-availability applications should consider pairing the RTM module with redundant power supply units to eliminate single points of failure at the electrical supply level.

At the I/O layer, the 39RTMCAN works alongside analog input modules (such as Siemens TELEPERM M AIM cards), digital input/output modules, and other signal conditioning cards installed in the same subrack. This co-location on a shared backplane enables the DCS to aggregate multi-variable process data — temperature, pressure, flow, and discrete status signals — into a unified process image that the CPU can act upon in a single scan cycle. The result is tighter process control and faster fault detection across multi-variable loops.

At the communication layer, TELEPERM M communication processors and network interface modules relay processed data from the control layer to supervisory systems, historian servers, and SCADA platforms. The temperature values acquired by the 39RTMCAN ultimately appear on operator workstations and HMI panels — including Siemens SIMATIC WinCC or legacy TELEPERM M operator stations — where process engineers monitor trends, configure alarms, and initiate manual overrides. This end-to-end data path, from RTD sensor through the 39RTMCAN to the HMI display, represents the complete signal chain that the module anchors at the field acquisition stage.

For redundant architecture designs, the 39RTMCAN can be deployed in parallel channel configurations where dual RTM modules monitor the same process point, with the CPU arbitrating between channels to detect sensor drift or module faults. This redundancy strategy is particularly relevant in power plant boiler control, refinery reactor temperature monitoring, and pharmaceutical batch process applications where temperature measurement failure could trigger costly process upsets or safety system activations. Terminal modules and marshalling panels within the control cabinet provide the wiring infrastructure that connects field RTDs to the RTM module inputs, completing the physical signal path.

Industrial Application Notes

The Siemens 39RTMCAN 16207-61/13 finds application across a wide range of process industries where TELEPERM M DCS platforms remain in active service. In thermal power generation, the module supports boiler drum temperature monitoring, turbine exhaust temperature measurement, and feedwater heater control loops — applications where measurement accuracy and system reliability directly affect generation efficiency and equipment protection. Power plant operators maintaining legacy TELEPERM M installations rely on the availability of genuine RTM modules to sustain these critical measurement loops without requiring full DCS migration projects.

In the petrochemical and refinery sector, the 39RTMCAN supports reactor temperature profiling, distillation column temperature gradient monitoring, and heat exchanger control applications. These processes demand continuous, high-accuracy temperature measurement across multiple points, and the TELEPERM M architecture’s ability to aggregate dozens of RTM channels within a single subrack makes it well-suited to the dense I/O requirements of refinery control systems. The module’s compatibility with 3-wire and 4-wire RTD configurations also supports the lead resistance compensation required for accurate measurement over long cable runs between field instruments and the control room.

Water treatment and municipal utility facilities operating TELEPERM M systems use the 39RTMCAN for process temperature monitoring in aeration basins, digester temperature control, and chemical dosing system oversight. In these applications, long-term measurement stability and low maintenance requirements are prioritized, and the module’s integration within the TELEPERM M platform’s self-diagnostic architecture supports predictive maintenance strategies by flagging sensor degradation or wiring faults before they cause measurement failures.

Mining and metallurgical processing facilities — including smelters, ore processing plants, and mineral separation facilities — deploy TELEPERM M systems for high-temperature process monitoring in furnace control, calcination, and drying applications. The 39RTMCAN’s ability to interface with high-range RTD sensors makes it applicable to these elevated-temperature measurement scenarios, supporting the precise temperature control required for consistent product quality in metallurgical processes.

Product Compatibility FAQ

Q1: Is the Siemens 39RTMCAN 16207-61/13 compatible with all TELEPERM M subrack configurations, and can it be mixed with other I/O module types in the same rack?
A: The 39RTMCAN 16207-61/13 is designed for installation within standard TELEPERM M subrack assemblies and communicates via the platform’s internal backplane bus. It can be installed alongside other TELEPERM M I/O modules — including analog input modules, digital I/O cards, and communication processors — within the same subrack, subject to the slot assignment rules defined in the TELEPERM M system configuration documentation. Engineers should verify slot compatibility and backplane bus loading against the specific subrack model in use. ZYPLC can provide pre-sales technical consultation to confirm compatibility with your existing rack configuration.

Q2: What commissioning steps are required when replacing a faulty 39RTMCAN module in an operational TELEPERM M system, and is hot-swap supported?
A: Module replacement procedures for the 39RTMCAN in a TELEPERM M system typically require the affected I/O channel group to be taken offline prior to physical module extraction, as TELEPERM M subrack designs generally do not support live hot-swap without prior system preparation. After physical installation of the replacement module, the DCS configuration must be verified to ensure channel assignments, engineering unit scaling, and alarm limits are correctly restored. ZYPLC recommends coordinating module replacement during scheduled maintenance windows and retaining a spare 39RTMCAN in the facility’s critical spares inventory to minimize unplanned downtime. All modules supplied by ZYPLC include a warranty terms confirmed during quotation covering manufacturing defects and functional failures.

Q3: How does ZYPLC’s warranty terms confirmed during quotation and long-term supply commitment support lifecycle management for TELEPERM M installations?
A: ZYPLC specializes in the supply of legacy and current-generation industrial automation components, including Siemens TELEPERM M modules such as the 39RTMCAN 16207-61/13. All supplied modules undergo functional verification prior to dispatch and are covered by a warranty terms confirmed during quotation against defects in materials and workmanship. For facilities managing aging TELEPERM M installations where OEM supply channels have been discontinued, ZYPLC provides a reliable alternative source for critical spare parts, supporting extended system lifecycles without requiring premature DCS migration. Long-term supply agreements and consignment stock arrangements are available for high-volume or multi-site customers.
