Siemens 3RK3141-2CD10 Industrial Network Interface for SIRIUS Systems

Siemens 3RK3141-2CD10 Industrial Network Interface for SIRIUS Systems: Bridging the Industrial Data Link

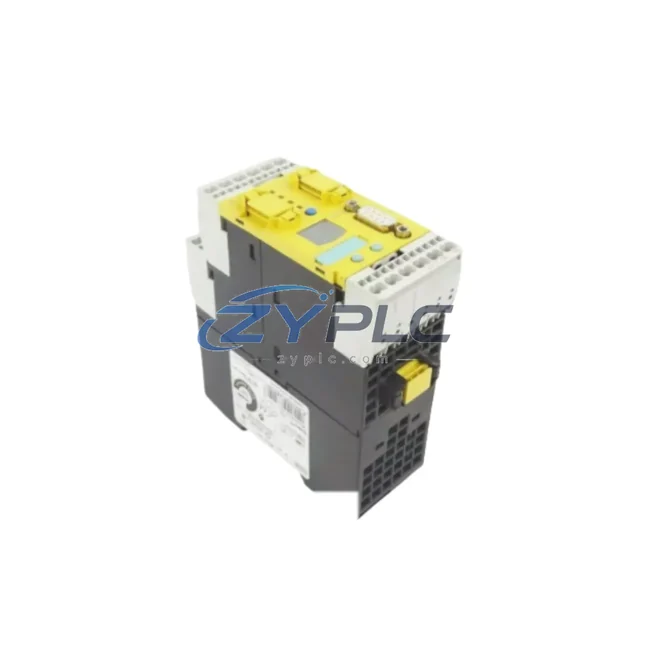

The Siemens 3RK3141-2CD10 is a high-performance PROFIBUS DP / AS-Interface F-Link Safety Gateway engineered for demanding industrial automation environments. As a core component of the SIRIUS safety and control ecosystem, this gateway enables seamless protocol conversion between the AS-Interface (AS-i) safety bus and PROFIBUS DP networks — eliminating data silos, accelerating real-time signal transmission, and delivering transparent plant-floor visibility across every layer of the automation hierarchy.

Designed for integration in smart factory architectures, the 3RK3141-2CD10 serves as the critical communication bridge between field-level safety devices — including emergency stop buttons, safety light curtains, and two-hand control modules — and the upper-level PROFIBUS DP master, typically a Siemens S7-300 or S7-400 PLC. By consolidating AS-i slave data and safety status into structured PROFIBUS DP telegrams, this gateway ensures that SCADA systems, HMI panels, and MES platforms receive accurate, low-latency process data without manual intervention or proprietary middleware.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 3RK3141-2CD10 sits at the intersection of the field bus and the control network, orchestrating data flow across multiple automation layers. At the field level, AS-i safety slaves — such as Siemens 3RK1205 safety monitors, 3SF5 emergency stop devices, and 3SE5 position switches — transmit safety status signals over the AS-i flat cable. The 3RK3141-2CD10 aggregates these signals, validates safety integrity in real time, and forwards structured process data upstream via PROFIBUS DP.

The PROFIBUS DP master — commonly a Siemens S7-315-2 DP or S7-416-2 DP CPU — receives the consolidated safety and I/O data from the gateway and executes the corresponding control logic. Simultaneously, a Siemens ET 200S or ET 200M remote I/O station may share the same PROFIBUS DP segment, enabling distributed I/O expansion without additional wiring infrastructure. For drive control applications, Siemens SINAMICS G120 variable frequency drives connected via PROFIBUS DP can receive speed references and return actual feedback values within the same network cycle, ensuring coordinated motion across conveyor lines, pumping stations, and packaging machinery.

At the supervisory level, a Siemens SIMATIC WinCC SCADA system or SIMATIC HMI TP1200 Comfort panel reads real-time process values, safety states, and alarm conditions from the PLC — data that originates at the AS-i field devices and travels through the 3RK3141-2CD10 gateway. This unbroken data chain — from sensor to SCADA — enables operators to monitor safety circuit status, acknowledge alarms, and initiate remote diagnostics without physically accessing the field cabinet. For edge computing scenarios, a Siemens SIMATIC IPC427E industrial PC or a third-party edge gateway can subscribe to OPC UA data published by the S7 PLC, extending the data flow from the PROFIBUS DP network into cloud-based MES or ERP platforms.

Power for the AS-i network is typically supplied by a dedicated Siemens 3RX9501 AS-i power supply, which provides the regulated 30 V DC required by AS-i slaves while maintaining network isolation. This integrated power and communication architecture reduces panel space, simplifies commissioning, and ensures stable network operation even under high electromagnetic interference conditions common in heavy industrial environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple, incompatible communication protocols across different generations of equipment. Legacy safety relays, pneumatic valve terminals, and older sensor networks often operate on proprietary or low-level protocols that cannot natively communicate with modern PROFIBUS DP or Ethernet-based control systems. The result is data isolation — critical safety and process information trapped at the field level, invisible to SCADA operators and inaccessible to MES analytics engines.

The Siemens 3RK3141-2CD10 directly addresses this challenge by acting as a transparent protocol translator. AS-i safety data — including dual-channel emergency stop status, safety door interlock states, and light curtain muting signals — is converted into standard PROFIBUS DP process image data that any DP master can read without custom programming. This eliminates the need for dedicated safety PLCs or complex hardwired safety relay matrices, reducing both hardware cost and cabinet complexity.

For production line transparency, the gateway’s diagnostic capabilities allow the PLC and SCADA system to identify individual AS-i slave faults — such as a disconnected sensor or a failed safety module — down to the device address level. Maintenance teams receive precise fault location data via HMI alarm pages, enabling targeted repairs rather than time-consuming manual inspections. Remote diagnostic access via the PROFIBUS DP network means that engineering teams can interrogate the gateway’s status registers from the control room or even via remote VPN access, minimizing unplanned downtime.

System expansion is equally straightforward: additional AS-i slaves can be added to the network up to the maximum slave count without modifying the PROFIBUS DP configuration, as the gateway automatically detects new devices and updates its process image. This plug-and-play scalability supports phased factory expansion projects, allowing new safety zones and I/O points to be commissioned incrementally without disrupting existing production.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 3RK3141-2CD10 between AS-i field devices and the PROFIBUS DP master?
The AS-i cycle time for a fully loaded network (62 slaves) is approximately 10 ms. PROFIBUS DP cycle time depends on the master configuration and baud rate but is typically 1–5 ms at 1.5 Mbps. The total end-to-end latency from AS-i slave signal change to PROFIBUS DP process image update is generally under 20 ms, which is well within the response time requirements for most safety and process control applications.

Q2: Is the 3RK3141-2CD10 compatible with third-party PROFIBUS DP masters and non-Siemens PLCs?
Yes. The 3RK3141-2CD10 complies with the PROFIBUS DP standard (IEC 61158 / EN 50170) and provides a standard GSD file for integration into any PROFIBUS DP master, including those from Beckhoff, Rockwell Automation, Schneider Electric, and other vendors. The gateway operates as a standard DP slave from the master’s perspective, ensuring broad system compatibility.

Q3: How does the gateway maintain network stability in high-EMI industrial environments?
The 3RK3141-2CD10 is designed to meet IEC 61000-4 EMC immunity standards, including surge, burst, and conducted RF immunity tests. The AS-i flat cable topology provides inherent noise immunity due to its differential signaling and integrated power/data transmission. PROFIBUS DP connections should use shielded twisted-pair cable (Type A) with proper grounding at both ends to maintain signal integrity at baud rates up to 12 Mbps.

Q4: What does the warranty terms confirmed during quotation cover, and is the unit tested before shipment?
Every Siemens 3RK3141-2CD10 supplied by ZYPLC undergoes functional testing prior to shipment, verifying PROFIBUS DP communication, AS-i network detection, and safety channel integrity. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides technical support and replacement coordination to minimize production impact. Stock availability and lead times can be confirmed via RFQ at zyplc.com.
