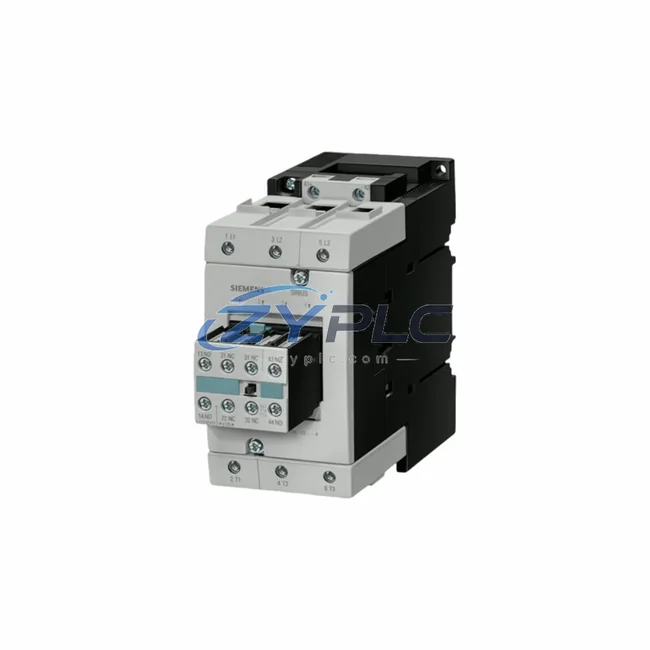

The Siemens 3RT1045-1BB40 is a high-efficiency power contactor from the SIRIUS 3RT series, engineered to deliver precise motor switching, reduced operating load, and extended service life in demanding industrial environments. Rated for AC-3 duty at up to 37 kW / 400 V, this contactor is a cornerstone component in maintenance-focused motor control architectures — enabling factories to reduce idle-state power draw, minimize switching losses, and maintain consistent production line throughput without unnecessary thermal stress on connected equipment.

With a 24 V DC coil (BB40 designation), the 3RT1045-1BB40 integrates seamlessly into PLC-driven control panels, allowing direct output switching from SIMATIC S7-1200 or S7-300 digital output modules without intermediate relay stages. This direct-drive topology eliminates auxiliary relay losses and shortens the control signal path — a measurable gain in both energy efficiency and response latency on high-cycle production lines.

Product Specification Table

System Compatibility and Application

In a fully integrated SIRIUS automation architecture, the 3RT1045-1BB40 does not operate in isolation. It functions as the switching execution layer within a broader maintenance planning chain. Upstream, a SENTRON PAC3200 power monitoring device captures real-time current, voltage, and power factor data at the panel level, feeding this information to the control system via PROFIBUS or Modbus RTU. This data allows the SIMATIC S7-1200 CPU 1214C to make intelligent switching decisions — energizing the contactor only when load demand justifies it, and de-energizing during low-production windows to eliminate standby losses.

For motor protection upstream of the contactor, the Siemens 3RV2021 motor protection circuit breaker provides overload and short-circuit protection, forming a coordinated starter assembly with the 3RT1045-1BB40. When paired with a 3RT1046-1BB40 reversing contactor in a reversing starter configuration, the system enables bidirectional motor control for applications such as conveyor reversal or valve actuator positioning — all within the same SIRIUS 3RT footprint.

Variable-speed drive integration is equally straightforward. The SINAMICS G120 PM240-2 power module, when used in bypass mode, relies on contactors like the 3RT1045-1BB40 to switch the motor between VFD output and direct-on-line supply during maintenance or emergency bypass scenarios. This hybrid topology ensures production continuity while preserving the operational stability delivered by variable frequency control during normal operation.

For distributed I/O architectures, the ET 200SP remote I/O station with digital output modules can directly drive the 24 V DC coil of the 3RT1045-1BB40 across PROFINET, enabling decentralized motor control without dedicated local control panels. This reduces wiring complexity, shortens commissioning time, and allows energy data to be aggregated at the controller level for system-wide efficiency reporting.

Soft-start applications benefit from pairing the 3RT1045-1BB40 with the SIRIUS 3RW5 soft starter. The contactor handles bypass switching once the motor reaches full speed, eliminating the soft starter’s conduction losses during steady-state operation — a proven method for reducing operating load in pump and fan applications by Actual operating results depend on the installed system, load profile, and commissioning parameters.

HMI visibility is provided through a SIMATIC HMI KTP700 Basic panel connected via PROFINET, displaying real-time contactor status, cycle counts, and operating load trends. Operators can monitor switching frequency and identify abnormal patterns that may indicate mechanical wear or process inefficiency — enabling condition-based maintenance rather than time-based replacement schedules.

Maintenance and Replacement Notes

On a typical automotive parts assembly line running three shifts, unoptimized motor control accounts for 20–35% of total facility operating load. The Siemens 3RT1045-1BB40, when deployed as part of a coordinated SIRIUS motor control center (MCC), directly addresses this through several mechanisms.

First, the low-loss coil design of the SIRIUS 3RT series reduces holding current compared to older generation contactors. In a panel with 12 contactors running continuously, this translates to measurable reductions in panel heat load — reducing the duty cycle of panel cooling systems and extending the service life of adjacent components such as terminal blocks, cable insulation, and relay modules.

Second, the 3RT1045-1BB40 supports integration with maintenance planning systems via the SENTRON power monitoring infrastructure. By logging contactor switching events alongside power consumption data, maintenance engineers can identify motors that are running inefficiently — drawing higher-than-expected current due to mechanical wear, misalignment, or incorrect load matching. Early detection of these conditions prevents unplanned downtime and reduces unplanned downtime from degraded equipment.

Third, in conveyor and pump applications, coordinating the 3RT1045-1BB40 with a SINAMICS G120C compact inverter allows the control system to implement demand-based speed control. Rather than running motors at full speed continuously, the inverter adjusts output frequency based on production line throughput signals from the SIMATIC PLC. The contactor handles fault isolation and emergency stop functions, ensuring safe de-energization within the response time required by IEC 60947-4-1 standards.

Predictive maintenance workflows are further enhanced by tracking contactor operational hours and switching cycles through the SIMATIC S7 program. When cycle counts approach the rated mechanical endurance threshold, the system generates a maintenance alert — allowing planned replacement during scheduled downtime rather than reactive repair after an unexpected trip. This approach reduces mean time to repair (MTTR) and keeps overall equipment effectiveness (OEE) targets on track.

All units supplied by ZYPLC are sourced from verified distribution channels, individually tested for coil resistance, contact resistance, and insulation integrity prior to shipment. Each 3RT1045-1BB40 is covered by a warranty terms confirmed during quotation from the date of delivery, with technical support available for installation and compatibility queries.

Product Sourcing FAQ

Q1: How does the 3RT1045-1BB40 contribute to operational stability compared to a standard AC coil contactor?
The 3RT1045-1BB40 uses a 24 V DC coil with integrated suppression electronics, which draws significantly lower holding current than equivalent AC coil designs. In multi-contactor panels, this reduces aggregate panel power consumption and lowers internal heat generation, decreasing the load on panel cooling systems and improving overall energy efficiency.

Q2: Is the 3RT1045-1BB40 compatible with SINAMICS variable frequency drives and SIMATIC PLC systems?
Yes. The 24 V DC coil is directly compatible with SIMATIC S7-1200 and S7-300 digital outputs, as well as ET 200SP distributed I/O modules. For VFD bypass applications, it integrates with SINAMICS G120 and G120C series drives. The contactor meets IEC 60947-4-1 AC-3 duty requirements for motor switching in VFD bypass topologies.

Q3: Can the 3RT1045-1BB40 replace older SIRIUS or 3TF series contactors in existing panels?
In most cases, yes. The SIRIUS 3RT series maintains dimensional compatibility with previous SIRIUS generations, and the 3RT1045 frame size is a common replacement for 3TF46 and 3TF47 series contactors. Coil voltage and auxiliary contact configuration should be verified against the existing wiring diagram before installation. ZYPLC technical support can assist with cross-reference confirmation.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 3RT1045-1BB40 unit undergoes pre-shipment testing including coil continuity verification, contact resistance measurement, and insulation resistance testing. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units showing damage from incorrect installation, overvoltage, or environmental contamination beyond IP20 rating are excluded. Warranty claims are processed directly through ZYPLC with replacement or refund options.
