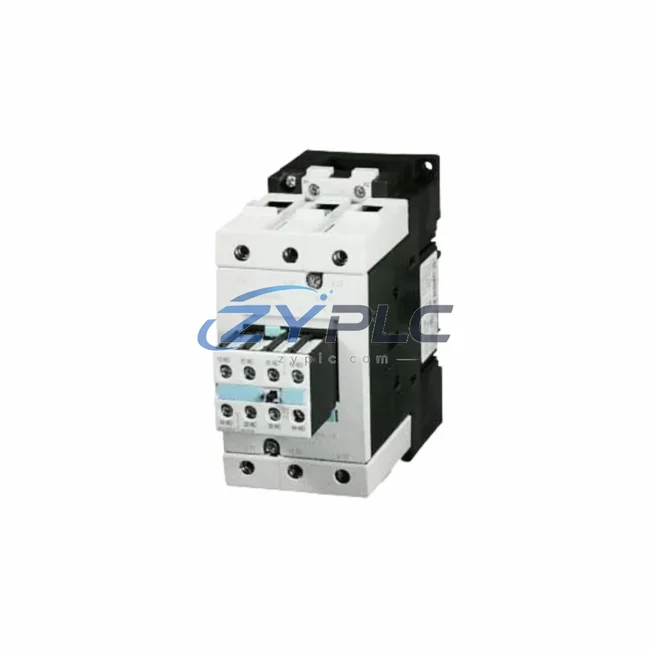

Siemens 3RT1046-1AN20 AC Contactor for 3RT1

Siemens 3RT1046-1AN20 AC Contactor for 3RT1: Compatibility and Replacement Notes

The Siemens 3RT1046-1AN20 is a 3RT1 Series SIRIUS AC contactor engineered for seamless integration within layered industrial control system architectures. Rated for motor switching applications in the 75 kW range at 400 V AC, this contactor is not merely a standalone switching device — it is a critical execution-layer component that bridges the command signals from the control layer down to the physical load. In modern automation environments, where system consistency, scalability, and long-term maintainability are paramount, the 3RT1046-1AN20 delivers the electrical and mechanical reliability required to sustain continuous production cycles across demanding industrial sectors.

Within a complete control system hierarchy, the 3RT1046-1AN20 operates at the execution layer, receiving switching commands from upstream devices such as the Siemens SIMATIC S7-1500 or S7-300 PLC series via digital output modules. The PLC’s CPU — for example, a CPU 1516-3 PN/DP or CPU 315-2 DP — processes the control logic and issues discrete output signals through ET 200SP or ET 200M distributed I/O stations. These signals are routed through terminal modules and marshalling panels before energizing the 3RT1046-1AN20’s coil circuit, which in turn closes the main power contacts to start or stop the connected motor load. This signal flow — from CPU to I/O module to contactor to motor — represents the fundamental execution chain in any well-designed automation system.

The 3RT1046-1AN20 is designed with a 220 V AC coil voltage (suffix -1AN20), making it compatible with standard control voltage rails commonly used in European and Asian industrial control panels. Its screw-type terminal design ensures reliable cable connections in high-vibration environments, while its compact 3RT1 frame size allows for efficient panel space utilization when mounted on standard DIN rails alongside circuit breakers such as the Siemens 3RV2 motor protection circuit breaker, which provides upstream overload and short-circuit protection for the contactor circuit.

Product Specification Table

System Compatibility Notes

A robust industrial control system built around the 3RT1046-1AN20 typically integrates multiple coordinated components across all system layers. At the control layer, a Siemens SIMATIC S7-1500 CPU — such as the CPU 1515-2 PN — executes the PLC program and manages the overall process logic. The CPU communicates over PROFINET with distributed I/O stations such as the ET 200SP, where digital output modules (e.g., DQ 8x24VDC/0.5A) generate the discrete switching signals that ultimately energize the 3RT1046-1AN20 coil.

At the power layer, a Siemens SITOP PSU8600 24 V DC power supply provides stable control voltage to the I/O modules and relay circuits, ensuring that coil energization is consistent even during transient load conditions. Upstream of the contactor, a Siemens 3RV2031 motor protection circuit breaker provides coordinated overload and short-circuit protection, forming a complete motor starter combination that meets IEC 60947-4-1 coordination requirements.

For applications requiring motor protection beyond the contactor’s built-in auxiliary contacts, a Siemens 3RU2 thermal overload relay can be directly mounted onto the 3RT1046-1AN20 using the snap-on interface, eliminating additional wiring and reducing panel assembly time. In reversing starter configurations, two 3RT1046-1AN20 units are deployed with mechanical and electrical interlocking, often supplemented by a Siemens 3RA1 reversing contactor assembly kit for factory-assembled solutions.

At the human-machine interface layer, a Siemens SIMATIC HMI KTP700 Basic panel provides operators with real-time visibility into contactor status, motor running hours, and fault conditions — all communicated back through the PROFINET network to the S7-1500 CPU. This closed-loop architecture ensures that every switching event at the execution layer is logged, monitored, and traceable, supporting both operational efficiency and regulatory compliance in process industries.

For systems requiring redundancy, the 3RT1046-1AN20 can be deployed in parallel contactor configurations with Siemens 3RT1 series redundancy kits, ensuring that a single contactor failure does not interrupt critical process loads. This is particularly relevant in continuous process industries such as petrochemicals, water treatment, and power generation, where unplanned downtime carries significant operational and safety consequences.

Industrial Application Notes

Manufacturing and Assembly Lines: In automotive and general manufacturing environments, the 3RT1046-1AN20 controls conveyor motors, pump drives, and compressor starters. Its high switching endurance (up to 10 million mechanical operations) ensures reliable performance across multi-shift production schedules without requiring frequent maintenance interventions.

Power Generation and Utilities: In power plant auxiliary systems, the 3RT1046-1AN20 is used to switch cooling water pumps, fan motors, and auxiliary drives. Its IEC-compliant design and compatibility with Siemens SIPROTEC protection relays make it suitable for integration into substation control systems where coordination between protection and switching devices is critical.

Petrochemical and Oil & Gas: In hazardous area control panels (Zone 2 / Division 2 applications with appropriate enclosures), the 3RT1046-1AN20 controls process pumps and agitator motors. Its robust construction and wide operating temperature range (-25°C to +60°C) support reliable operation in outdoor and semi-outdoor installations common in refinery environments.

Water and Wastewater Treatment: Municipal water treatment facilities rely on the 3RT1046-1AN20 for pump station motor control, where the contactor operates in conjunction with Siemens SIMATIC S7-1200 PLCs and ET 200S distributed I/O to manage pump sequencing, level control, and alarm management across geographically distributed pump stations.

Mining and Metallurgy: In mining conveyor systems and ore processing plants, the 3RT1046-1AN20 handles the high-cycle switching demands of crusher motors, belt conveyor drives, and ventilation fans. Its compatibility with Siemens SINAMICS G120 variable frequency drives — where the contactor is used as a bypass or isolation device — adds flexibility to drive system architectures.

Packaging and Food Processing: In high-speed packaging lines, the 3RT1046-1AN20 provides reliable motor switching for filling machines, labeling stations, and palletizing robots. Its compact footprint and DIN rail mounting simplify panel design in space-constrained machine control cabinets.

Product Compatibility FAQ

Q1: Is the 3RT1046-1AN20 compatible with Siemens SIMATIC S7-1500 digital output modules for direct coil control?
Yes. The 3RT1046-1AN20’s 220 V AC coil can be driven via an interposing relay connected to the 24 V DC digital output of an ET 200SP DQ module, or directly from a 230 V AC output module where available. The coil’s low inrush current and standard IEC characteristics ensure compatibility with Siemens SIRIUS relay modules (3RQ3) used as interface elements between the PLC output and the contactor coil circuit. This architecture is fully supported in Siemens TIA Portal engineering environments.

Q2: Can the 3RT1046-1AN20 be used in a reversing starter configuration, and what interlocking components are required?
Yes. Two 3RT1046-1AN20 contactors can be configured as a reversing starter using the Siemens 3RA1 mechanical interlock accessory (3RA1921-1BA00), which physically prevents both contactors from closing simultaneously. Electrical interlocking is implemented via the auxiliary contacts (1 NO + 1 NC per contactor) wired in cross-interlock configuration. For factory-assembled reversing combinations, Siemens offers the 3RA2346 reversing contactor assembly, which integrates two 3RT1 contactors with pre-wired interlocking for reduced assembly time and engineering risk.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover, and how does it support long-term maintenance planning?
ZYPLC’s warranty terms confirmed during quotation covers the 3RT1046-1AN20 against manufacturing defects and premature failure under normal operating conditions as specified in the IEC/EN 60947-4-1 standard. The warranty period begins from the date of shipment and includes replacement or repair of defective units. For maintenance engineers managing large installed bases, ZYPLC also maintains buffer stock of 3RT1 series contactors to support rapid replacement in the event of field failures, minimizing unplanned downtime. system integration support is available to assist with system compatibility verification, installation guidance, and spare parts planning for multi-site automation projects.
