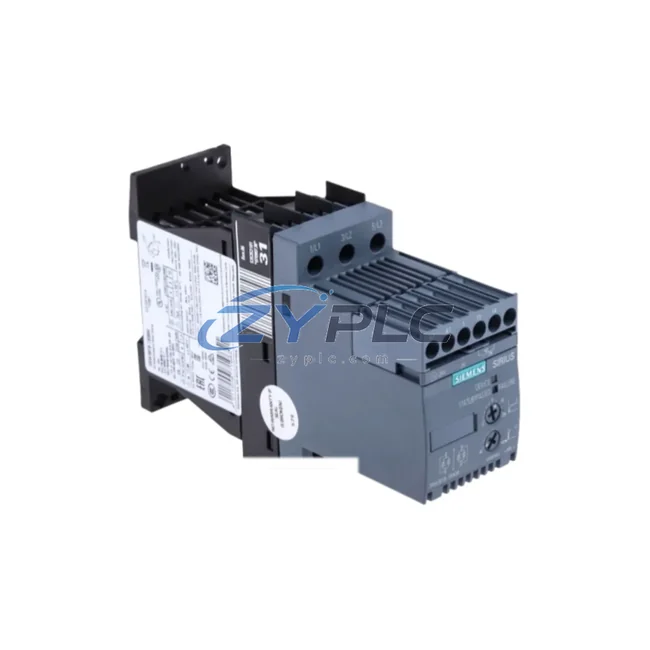

Siemens 3RW3018-1BB04 Soft Starter for 3RW30

Siemens 3RW3018-1BB04 Soft Starter for 3RW30: Control System Coordination and Upstream-Downstream Synergy

The Siemens 3RW3018-1BB04 is a compact, system-compatible soft starter engineered to operate as an integral node within the 3RW30 series control architecture. Rather than functioning as a standalone motor protection device, the 3RW3018-1BB04 is designed from the ground up to participate in a layered automation hierarchy — coordinating seamlessly across the control layer, I/O layer, power layer, network layer, human-machine interface layer, and the execution layer where motor-driven actuators perform physical work. In modern industrial environments, the value of any single component is measured not only by its individual specification, but by how effectively it integrates into the surrounding system. The 3RW3018-1BB04 delivers on both dimensions.

At the control layer, the 3RW3018-1BB04 receives start and stop commands from programmable logic controllers such as the Siemens S7-1200 CPU 1214C (6ES7214-1AG40-0XB0), which manages sequencing logic, interlocking conditions, and process timing. The soft starter’s digital input interface accepts 24 VDC control signals directly from the PLC’s digital output module, enabling deterministic command execution without additional signal conditioning. This direct coupling between the controller and the soft starter reduces wiring complexity and eliminates potential signal degradation points that could compromise system reliability in demanding environments such as petrochemical plants, water treatment facilities, and mining operations.

Within the power layer, the 3RW3018-1BB04 works in close coordination with upstream circuit protection components. Motor circuit breakers such as the Siemens 3RV2011-1AA10 provide short-circuit and overload protection upstream of the soft starter, while the 3RW3018-1BB04 itself manages the controlled voltage ramp during motor starting, limiting inrush current and mechanical shock to the driven load. This coordinated approach to power management extends the service life of both the motor and the mechanical transmission components — a critical consideration in continuous-process industries where unplanned downtime carries significant operational cost.

The 3RW3018-1BB04 is rated for three-phase motors up to 4 kW at 400 V, making it well-suited for pump, fan, compressor, and conveyor applications where smooth starting is essential. Its integrated bypass relay engages automatically after the motor reaches full speed, eliminating heat dissipation within the soft starter during steady-state operation and improving overall system energy efficiency. This bypass function also reduces thermal stress on the power semiconductors, contributing to the long-term reliability that industrial operators depend on across multi-year maintenance cycles.

From a network and communications perspective, the 3RW3018-1BB04 can be integrated into PROFIBUS or PROFINET-based architectures when paired with appropriate communication gateways such as the Siemens 3RW3 Communication Module or the Siemens 6GK7243-1BX30-0XE0 PROFINET gateway. This enables remote monitoring of motor status, fault diagnostics, and operational parameters directly from the SCADA or DCS level, supporting the kind of system integration that modern industrial facilities require for predictive maintenance and operational transparency.

At the I/O layer, the 3RW3018-1BB04 interfaces with distributed I/O systems and terminal modules. When deployed alongside Siemens ET 200SP distributed I/O stations or similar modular I/O platforms, the soft starter’s status outputs — including run feedback, fault relay, and bypass active signals — can be wired directly to digital input modules, providing the PLC with real-time visibility into motor operating state. This closed-loop feedback architecture is essential for implementing safe sequencing logic in multi-motor systems, such as those found in packaging lines, water pumping stations, and HVAC systems.

For human-machine interface integration, the 3RW3018-1BB04’s operational status can be visualized on Siemens KTP700 Basic or KTP900 Basic HMI panels connected to the controlling PLC via PROFINET. Operators can monitor motor start counts, fault history, and current operating mode from a centralized touchscreen interface, reducing the need for physical inspection of the control cabinet and improving response time to process anomalies.

In redundant architecture designs, the 3RW3018-1BB04 can be deployed in duty-standby motor configurations, where two soft starters are wired in parallel with automatic changeover logic managed by the PLC. This redundancy strategy is commonly applied in critical pumping applications — such as boiler feed water systems, cooling tower circulation, and effluent treatment — where continuous motor availability is a process safety requirement. The 3RW3018-1BB04’s compact DIN rail mounting footprint facilitates installation of dual-unit configurations within standard control cabinets without requiring additional enclosure space.

Power supply stability for the control circuit is maintained by Siemens SITOP PSU100S 24 VDC power supplies (e.g., 6EP1334-2BA20), which provide regulated, filtered DC power to the soft starter’s control inputs and the associated PLC I/O modules. Stable control power is a prerequisite for reliable soft starter operation, particularly in environments with significant electrical noise from variable frequency drives, large contactors, or welding equipment operating on the same distribution bus.

For applications requiring motor protection beyond the soft starter’s built-in overload function, the 3RW3018-1BB04 can be coordinated with Siemens 3RU2 thermal overload relays or 3RB3 solid-state overload relays installed in the motor branch circuit. This layered protection philosophy — combining electronic soft starting with dedicated thermal protection — ensures compliance with IEC 60947-4-2 and provides defense-in-depth against motor damage from sustained overload, phase loss, or locked rotor conditions.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and undergo functional verification prior to shipment, ensuring that every 3RW3018-1BB04 delivered to your facility is ready for immediate integration into your control system architecture.

Product Specification Table

System Compatibility Notes

The 3RW3018-1BB04 achieves its full operational value when deployed as part of a coordinated control system rather than as an isolated component. In a typical motor control center (MCC) architecture, the soft starter occupies the execution layer, receiving commands from the Siemens S7-1200 CPU 1214C (6ES7214-1AG40-0XB0) at the control layer. The PLC’s digital outputs connect directly to the soft starter’s 24 VDC control inputs, while the soft starter’s status relay outputs feed back to the PLC’s digital input module — creating a closed-loop control and monitoring architecture.

Upstream circuit protection is provided by the Siemens 3RV2011-1AA10 motor circuit breaker, which coordinates with the soft starter to provide both short-circuit protection and manual isolation capability. For applications requiring contactor-based isolation, the Siemens 3RA2110-0KA15-1AP0 direct-on-line starter contactor can be integrated upstream of the soft starter in a series configuration, providing a mechanically interlocked isolation point for maintenance operations.

Control cabinet power distribution relies on the Siemens SITOP PSU100S 6EP1334-2BA20 24 VDC power supply, which feeds the PLC, I/O modules, and the soft starter’s control circuit from a single regulated DC bus. This centralized power architecture simplifies cabinet wiring and ensures that all control components share a common voltage reference, reducing the risk of ground loop interference.

Network connectivity is extended to the field level through the Siemens 6GK7243-1BX30-0XE0 PROFINET communication processor, enabling the PLC to exchange data with higher-level SCADA systems and MES platforms. Motor operating data collected from the soft starter — including start count, last fault code, and bypass status — can be logged at the SCADA level for predictive maintenance analysis.

Operator interaction is facilitated by a Siemens KTP700 Basic HMI panel, which displays motor status, fault alarms, and start/stop controls on a 7-inch touchscreen interface. The HMI communicates with the S7-1200 PLC via PROFINET, providing operators with real-time visibility into the soft starter’s operating state without requiring access to the control cabinet interior.

Industrial Application Notes

The Siemens 3RW3018-1BB04 finds application across a broad range of industrial sectors where controlled motor starting is a process requirement. In water and wastewater treatment facilities, the soft starter is deployed on centrifugal pump motors to eliminate water hammer effects during pump start-up, protecting pipeline infrastructure and extending valve service life. In HVAC systems within commercial and industrial buildings, the 3RW3018-1BB04 controls fan and air handling unit motors, reducing mechanical stress on belt drives and impellers during start cycles.

In the food and beverage industry, the soft starter is applied to conveyor drive motors and mixer drives, where smooth acceleration prevents product spillage and reduces mechanical shock to gearboxes and couplings. In mining and mineral processing operations, the 3RW3018-1BB04 manages crusher feed conveyor motors and slurry pump drives, where the high inertia of the driven load makes controlled starting essential for protecting both the motor and the mechanical drivetrain.

In petrochemical and refinery applications, the soft starter is integrated into pump and compressor motor control panels, where compliance with area classification requirements and IEC standards is mandatory. The 3RW3018-1BB04’s compact form factor and DIN rail mounting make it suitable for installation in Zone 2 classified areas when housed in appropriate Ex-rated enclosures. In packaging and material handling lines, the soft starter coordinates with variable frequency drives on adjacent conveyor sections to ensure smooth product transfer between line segments operating at different speeds.

Product Compatibility FAQ

Q1: Is the Siemens 3RW3018-1BB04 compatible with Siemens S7-1200 and S7-300 PLC platforms for direct digital control?
Yes. The 3RW3018-1BB04 accepts 24 VDC control signals on its digital inputs, which are directly compatible with the transistor output modules of the Siemens S7-1200 series (e.g., CPU 1214C, 6ES7214-1AG40-0XB0) and the relay output modules of the S7-300 series. No additional signal conditioning or interface relays are required for standard start/stop control applications. For PROFIBUS or PROFINET integration, an external communication module or gateway is required.

Q2: Can the 3RW3018-1BB04 be used in a duty-standby redundant motor configuration, and what PLC logic is required?
Yes. The 3RW3018-1BB04 is well-suited for duty-standby configurations. Two soft starters are wired in parallel motor branch circuits, with changeover logic implemented in the PLC program. The PLC monitors the run feedback relay of the duty soft starter and initiates automatic changeover to the standby unit upon detection of a fault or non-run condition. Motor circuit breakers such as the Siemens 3RV2011-1AA10 should be installed in each branch to provide independent isolation. This architecture is commonly applied in critical pumping systems in water treatment and process industries.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability?
The warranty terms confirmed during quotation provided by ZYPLC covers functional defects in the Siemens 3RW3018-1BB04 under normal operating conditions. All units are functionally verified prior to shipment. ZYPLC supports RFQ sourcing for the 3RW3018-1BB04 and related 3RW30 series components to support long-term maintenance planning and emergency replacement requirements. For spare parts inquiries, system compatibility questions, or technical support, contact ZYPLC directly at +86 19859288691 or plc.sales@zyplc.com.
