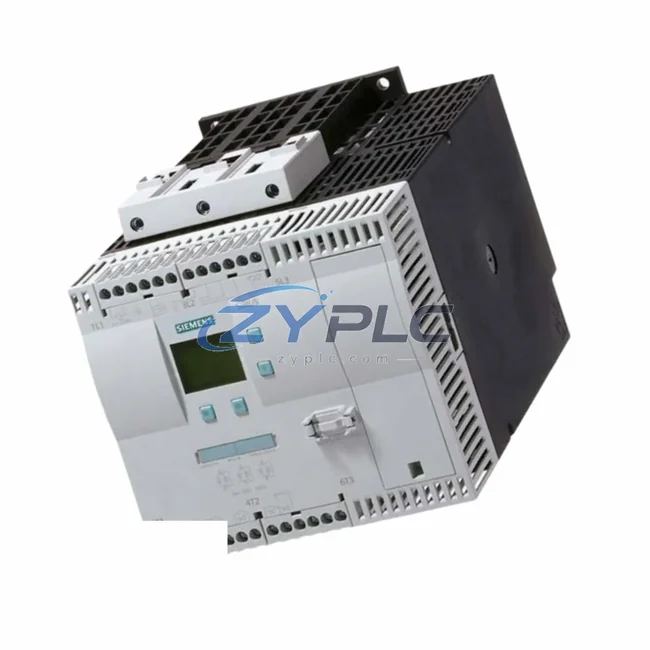

The Siemens 3RW4427-1BC44 is a high-performance soft starter from the SIRIUS 3RW44 series, engineered to deliver precise motor ramp-up control, reduce inrush current, and significantly cut unplanned downtime during start-stop cycles in demanding industrial environments. Rated for 3-phase AC motors up to 132 kW at 400 V, this unit is purpose-built for applications where motor efficiency, thermal protection, and production line continuity are non-negotiable priorities.

In modern manufacturing facilities, uncontrolled motor starts are one of the leading causes of excess operating load, mechanical wear, and unplanned downtime. The 3RW4427-1BC44 addresses this directly by applying a controlled voltage ramp during motor acceleration, eliminating the torque shock that degrades gearboxes, couplings, and conveyor belts. The result is a measurable reduction in peak demand charges, extended motor service life, and a smoother production rhythm that supports tighter line cycle times.

Product Specification Table

System Compatibility and Application

The 3RW4427-1BC44 does not operate in isolation — its full operational-efficiency potential is realized when integrated into a coordinated automation architecture. In a typical energy-optimized production cell, the soft starter works alongside a SIMATIC S7-1500 PLC, which orchestrates start sequences, monitors load profiles, and triggers controlled shutdowns during idle periods. Communication between the 3RW4427-1BC44 and the controller is handled via PROFIBUS DP or PROFINET IO, enabling real-time status feedback including motor temperature, current draw, and fault diagnostics without additional wiring overhead.

On the drive side, facilities running mixed motor loads often pair the 3RW4427-1BC44 with SINAMICS G120 variable frequency drives on continuously running loads such as HVAC fans and cooling pumps, while the soft starter handles fixed-speed motors that require controlled starts but do not need speed regulation. This hybrid approach — soft starter for fixed-speed, VFD for variable-speed — is a proven strategy for minimizing total system operating load across a production floor.

Power quality monitoring is equally important. Integrating a SENTRON PAC3200 power monitoring device upstream of the motor control center allows facility engineers to capture real-time kWh consumption, power factor, and harmonic distortion data. When the 3RW4427-1BC44 is active, the reduction in inrush current is immediately visible in the PAC3200 demand curves, providing quantifiable evidence of operational stability for sustainability reporting.

For I/O expansion and local signal conditioning, the SIRIUS 3RM1 motor starter modules complement the 3RW44 series in distributed panel architectures, while ET 200SP I/O modules connected to the S7-1500 handle auxiliary signals such as motor run feedback, thermal relay trips, and emergency stop chains. On the human-machine interface layer, a SIMATIC HMI TP700 Comfort panel provides operators with a clear view of motor status, operating load trends, and alarm history — reducing the time technicians spend diagnosing issues and improving overall equipment effectiveness (OEE).

Overload protection is managed by the integrated electronic motor protection built into the 3RW4427-1BC44 itself, but for upstream branch circuit protection, the SIRIUS 3RV2 motor circuit breaker series provides coordinated short-circuit and overload protection that is fully type-tested with the 3RW44 soft starter family. This coordination eliminates the guesswork from panel design and ensures that fault currents are interrupted before they can damage the soft starter or downstream equipment.

Maintenance and Replacement Notes

Consider a bottling plant running six 75 kW conveyor drive motors on a single production line. Without soft starters, each motor start draws 6–7 times its rated current for 2–4 seconds, creating significant demand spikes that inflate electricity tariffs and stress the facility’s transformer infrastructure. Replacing direct-on-line starters with the Siemens 3RW4427-1BC44 across these six motors reduces peak inrush current by up to 50%, flattening the demand curve and directly lowering monthly energy costs.

Beyond energy billing, the controlled acceleration profile eliminates the mechanical shock that causes premature belt wear on conveyor systems. Maintenance teams report that soft-started conveyors require belt replacement 30–40% less frequently than DOL-started equivalents, translating into lower spare parts inventory costs and fewer unplanned line stoppages. When combined with predictive maintenance data streamed from the SIMATIC S7-1500 via PROFINET, maintenance intervals can be scheduled during planned downtime windows rather than reacting to unexpected failures.

The 3RW4427-1BC44 also supports pump and fan applications where the operational stability are even more pronounced. In centrifugal pump systems, a soft-started motor that ramps up over 10–15 seconds eliminates water hammer — the pressure surge that damages pipes, valves, and seals when a pump starts abruptly. This protection extends the service life of the entire fluid handling system and reduces the frequency of valve replacements, which are often the hidden cost driver in process plant maintenance budgets.

Every unit supplied by ZYPLC undergoes functional testing prior to shipment, including verification of ramp-up timing, current limiting function, and communication interface integrity. This pre-shipment testing protocol ensures that the 3RW4427-1BC44 arrives ready for immediate panel integration, reducing commissioning time and the risk of installation-related faults. All units are covered by a warranty terms confirmed during quotation from the date of shipment, with technical support available throughout the warranty period.

Product Sourcing FAQ

Q1: How much energy can the 3RW4427-1BC44 save compared to a direct-on-line starter?
The primary energy saving comes from eliminating inrush current peaks, which can reduce peak demand charges by Actual operating results depend on the installed system, load profile, and commissioning parameters. In applications with frequent start-stop cycles — such as compressors or conveyors — the cumulative reduction in thermal losses and reactive power also contributes to lower overall operating load. The SENTRON PAC3200 power monitor is recommended for quantifying actual savings in your specific installation.

Q2: Is the 3RW4427-1BC44 compatible with SIMATIC S7-1200 and S7-1500 controllers?
Yes. The 3RW4427-1BC44 supports PROFIBUS DP and PROFINET IO communication, making it fully compatible with both the SIMATIC S7-1200 and S7-1500 controller families. Siemens provides pre-configured GSD/GSDML device description files and function blocks for TIA Portal, simplifying integration and reducing engineering time. Hardwired control via 110–230 V AC control voltage is also supported for installations without fieldbus infrastructure.

Q3: Can the 3RW4427-1BC44 replace an existing soft starter of a different brand?
In most cases, yes. The 3RW4427-1BC44 follows standard three-phase soft starter wiring conventions (L1/L2/L3 in, T1/T2/T3 out) and its control terminals accept standard 110–230 V AC signals. Before replacement, verify that the existing installation’s motor power rating does not exceed 132 kW at 400 V and that the control voltage matches. ZYPLC’s technical team can assist with cross-reference verification and provide wiring guidance prior to shipment.

Q4: What does the warranty terms confirmed during quotation cover and what is the testing process?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Prior to dispatch, each 3RW4427-1BC44 unit is tested for correct ramp function, current limiting operation, thermal model accuracy, and communication interface response. A test report is available upon request. Warranty claims are processed through ZYPLC’s after-sales support channel, with replacement units dispatched within 5 business days of fault confirmation.
