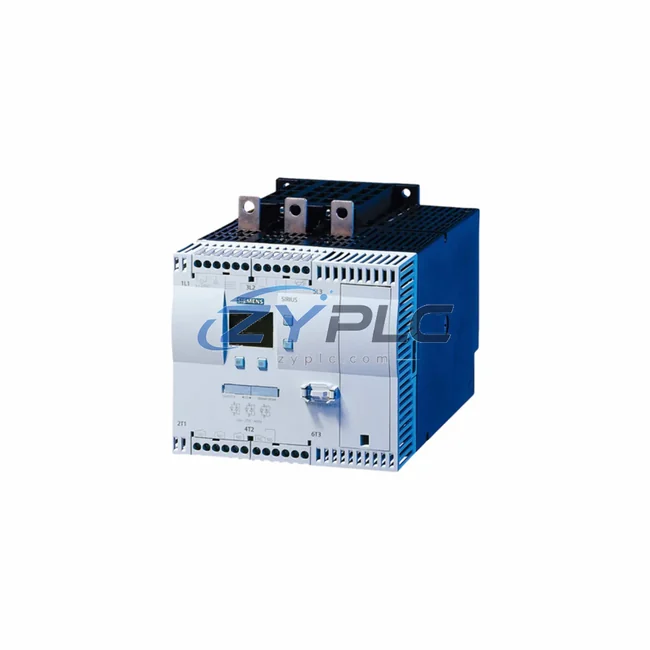

Siemens 3RW4434-6BC44 Soft Starter for SIRIUS 3RW44

Siemens 3RW4434-6BC44 Soft Starter for SIRIUS 3RW44: Compatibility and Replacement Notes

The Siemens 3RW4434-6BC44 is a high-performance soft starter engineered for seamless integration within the SIRIUS 3RW44 series control architecture. Rather than functioning as a standalone motor protection device, the 3RW4434-6BC44 is designed to operate as a coordinated node within a layered industrial automation system — connecting the control layer, I/O layer, power distribution layer, and field execution layer into a unified, reliable, and scalable platform. Whether deployed in continuous process environments or discrete manufacturing lines, this module delivers the system-level consistency that modern industrial engineers demand.

In a complete automation architecture, the 3RW4434-6BC44 interfaces directly with Siemens SIMATIC S7-300 or S7-1500 series PLCs via PROFIBUS DP or PROFINET IO communication protocols, enabling real-time motor status feedback, parameterization, and fault diagnostics from the central control layer. This tight integration eliminates the need for standalone relay-based motor management and reduces wiring complexity across the control cabinet. The soft starter’s built-in bypass contactor function further reduces thermal load on the device during steady-state operation, extending service life and improving overall system energy efficiency.

At the power distribution layer, the 3RW4434-6BC44 is typically paired with Siemens SIRIUS 3RT2 contactors and 3RV2 motor protection circuit breakers, forming a coordinated motor feeder assembly that provides overload protection, short-circuit isolation, and controlled ramp-up sequencing. This combination ensures that motor starting currents are limited to safe levels, protecting both the motor windings and the upstream power infrastructure — a critical requirement in facilities with sensitive power quality constraints such as petrochemical plants, water treatment stations, and mining operations.

From the I/O and signal flow perspective, the 3RW4434-6BC44 supports digital input/output interfaces that connect to Siemens ET 200SP or ET 200M distributed I/O stations, allowing decentralized control architectures to manage motor start/stop commands, speed ramp profiles, and fault reset signals without routing all signals back to a central panel. This distributed approach significantly reduces cable runs, simplifies commissioning, and improves system response times in large-scale installations such as conveyor systems, pump stations, and HVAC control networks.

At the human-machine interface layer, operators interact with the 3RW4434-6BC44 through Siemens SIMATIC HMI panels — such as the KTP700 or TP1200 Comfort series — which display real-time motor current, voltage, temperature, and operational status. Alarm management and trend logging are handled through TIA Portal-integrated visualization projects, giving maintenance engineers immediate visibility into motor health and enabling predictive maintenance scheduling before failures occur.

For redundancy-critical applications, the 3RW4434-6BC44 can be incorporated into dual-channel motor control architectures where a standby soft starter or bypass contactor is held in reserve. In conjunction with Siemens SIRIUS 3RW44 system accessories — including 3RW4900 parameter modules and 3RW4940 communication modules — the system supports rapid parameter transfer during module replacement, minimizing downtime during maintenance events. This hot-swap-compatible parameter management is particularly valuable in 24/7 production environments where unplanned shutdowns carry significant financial consequences.

The 3RW4434-6BC44 also supports integration with Siemens SENTRON PAC power monitoring devices and 7KM PAC measuring instruments, enabling energy consumption data to be captured at the motor feeder level and aggregated into plant-wide maintenance planning systems. This capability supports ISO 50001 maintenance planning compliance and provides the operational data needed to optimize motor loading, identify inefficient equipment, and justify capital investment in motor upgrades or variable frequency drive conversions.

In terms of physical installation, the 3RW4434-6BC44 is designed for DIN rail or panel mounting within standard IEC-compliant control cabinets, and its compact footprint allows it to be installed alongside Siemens SIRIUS 3RA6 compact starters and 3NP1 fuse switch disconnectors without requiring additional cabinet space. The module’s IP20 protection rating is suitable for installation in enclosed control panels, and its operating temperature range of -25°C to +60°C ensures reliable performance across a wide range of industrial environments.

All units supplied by ZYPLC are sourced from verified distribution channels, individually tested prior to dispatch, and covered by a comprehensive warranty terms confirmed during quotation. Our technical team provides full system integration support — including TIA Portal parameter configuration guidance, PROFIBUS/PROFINET network setup assistance, and system compatibility verification — ensuring that the 3RW4434-6BC44 is correctly commissioned within your specific control architecture from day one.

Product Specification Table

System Compatibility Notes

The 3RW4434-6BC44 achieves its full performance potential when deployed as part of a coordinated Siemens SIRIUS control system. A typical motor control center (MCC) built around this soft starter will incorporate the following components working in concert:

At the CPU and control layer, a Siemens SIMATIC S7-1500 CPU 1515-2 PN or S7-300 CPU 315-2 DP provides the central processing and program execution environment, issuing start/stop commands and monitoring motor status via PROFINET or PROFIBUS. The Siemens SIRIUS 3RW4940 communication module plugs directly into the 3RW4434-6BC44 to enable fieldbus connectivity, while the 3RW4900 parameter module stores device configuration for rapid replacement without re-parameterization.

At the power protection layer, Siemens SIRIUS 3RV2 motor protection circuit breakers provide upstream short-circuit and overload protection, and SIRIUS 3RT2 power contactors handle switching duties in bypass or emergency manual operation modes. For installations requiring additional surge protection, Siemens SIRIUS 3RT2926 surge suppressors are connected across contactor coils to protect the control circuit from inductive switching transients.

At the distributed I/O layer, Siemens ET 200SP IM 155-6 PN interface modules with digital I/O modules collect field signals — including motor thermistor inputs, limit switch feedback, and valve position signals — and relay them to the S7-1500 CPU over PROFINET. At the HMI layer, a Siemens SIMATIC KTP700 Basic Panel provides local operator control and alarm visualization, while SENTRON PAC3200 power monitoring devices capture energy consumption data at the feeder level for integration into plant maintenance planning systems.

Industrial Application Notes

The Siemens 3RW4434-6BC44 is deployed across a broad range of industrial sectors where controlled motor starting, system integration, and long-term reliability are non-negotiable requirements.

In water and wastewater treatment facilities, the 3RW4434-6BC44 manages pump motor starting sequences to prevent water hammer effects in pipeline systems, while PROFIBUS integration with SCADA systems enables remote monitoring of pump status and energy consumption across multiple pumping stations. In petrochemical and oil & gas installations, the soft starter’s ability to limit inrush current during compressor and fan motor starts protects sensitive power distribution infrastructure and reduces mechanical stress on couplings and gearboxes.

In mining and mineral processing operations, the 3RW4434-6BC44 controls conveyor belt drive motors, crusher drives, and slurry pump motors, where the ability to adjust ramp-up time and current limiting parameters is essential for managing the high inertia loads characteristic of these applications. In metallurgical and steel plant environments, the module’s wide operating temperature range and robust construction ensure reliable operation in high-ambient-temperature control rooms adjacent to furnaces and rolling mills.

In packaging and discrete manufacturing lines, the 3RW4434-6BC44 enables smooth, jerk-free starting of conveyor motors, reducing product spillage and mechanical wear on drive components. Its integration with Siemens TIA Portal allows production engineers to adjust motor ramp profiles from the central SCADA workstation without requiring physical access to the control cabinet — a significant advantage in cleanroom or hazardous area installations.

Product Compatibility FAQ

Q1: Is the 3RW4434-6BC44 compatible with both PROFIBUS DP and PROFINET IO networks?
The 3RW4434-6BC44 itself does not include a built-in fieldbus interface; communication capability is added via the Siemens SIRIUS 3RW4940 communication module, which is available in PROFIBUS DP and PROFINET IO variants. This modular approach allows the same soft starter hardware to be deployed in either network architecture, providing flexibility for system integrators working across mixed-protocol plant environments. Configuration is performed through TIA Portal using the standard SIRIUS device library GSD/GSDML files.

Q2: Can the 3RW4434-6BC44 be replaced in the field without re-parameterization?
Yes. The Siemens SIRIUS 3RW4900 parameter module stores all device configuration data independently of the soft starter hardware. In the event of a module failure, the parameter module is transferred to the replacement unit, and the device resumes operation with the original configuration without requiring laptop access or TIA Portal reconnection. This feature is critical for minimizing mean time to repair (MTTR) in 24/7 production environments and is a key advantage of the SIRIUS 3RW44 system architecture over competing soft starter platforms.

Q3: What does the warranty terms confirmed during quotation cover, and what integration support does ZYPLC provide?
All 3RW4434-6BC44 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. In addition to hardware warranty coverage, ZYPLC provides system integration support — including assistance with TIA Portal device configuration, PROFIBUS/PROFINET network addressing, ET 200 I/O system compatibility verification, and control cabinet layout review. Our engineering team is available to support system integrators and end-users throughout the commissioning process, ensuring that the 3RW4434-6BC44 is correctly integrated into the target control architecture from initial installation through to production handover.
