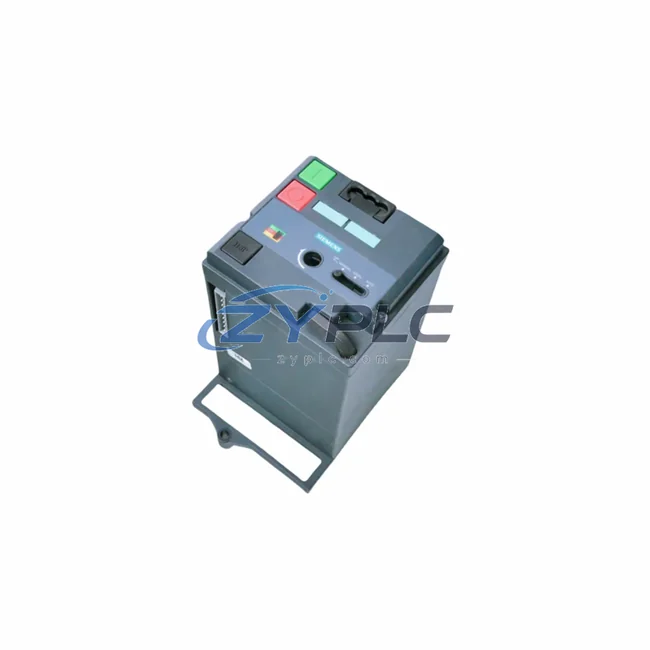

Siemens 3VL9300-3ME10 Circuit Breaker for 3VL Systems

Siemens 3VL9300-3ME10 Industrial Network Interface for 3VL Systems: Powering the Smart Factory Data Link

The Siemens 3VL9300-3ME10 is a precision-engineered accessory module for the Siemens 3VL Series molded case circuit breakers, purpose-built to extend the reach of industrial power distribution into the connected automation ecosystem. In modern smart factory environments, every device on the plant floor — from field-level sensors and remote I/O modules to PLC controllers, HMI panels, SCADA systems, and energy management platforms — must communicate reliably and in real time. The 3VL9300-3ME10 serves as the critical communication bridge that enables the 3VL Series circuit breaker to participate fully in this industrial data network.

Designed for seamless integration with Siemens SENTRON power monitoring infrastructure, the 3VL9300-3ME10 provides the electrical and mechanical interface necessary to connect 3VL molded case circuit breakers to bus communication systems. This enables upstream systems — including Siemens SIMATIC S7-300 and S7-1500 PLC platforms — to receive real-time status data, trip event notifications, and operational diagnostics directly from the breaker, eliminating the data isolation that has historically plagued distributed power systems.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the Siemens 3VL9300-3ME10 sits at the intersection of power distribution and industrial communication. The data flow begins at the field level: current transformers and voltage sensors feed real-time electrical parameters into the 3VL Series circuit breaker. With the 3VL9300-3ME10 interface module installed, this data is made available to the plant’s communication backbone.

At the controller level, a Siemens SIMATIC S7-1500 PLC — or its predecessor the S7-300 — polls the breaker status via PROFIBUS DP or through a Siemens 3VL9300-3MC00 COM module, which handles the protocol translation between the breaker’s internal interface and the fieldbus network. This architecture mirrors the approach used with Siemens SENTRON PAC3200 and PAC4200 power monitoring devices, which similarly aggregate energy data from multiple distribution points and forward it upstream.

The data stream continues to the SCADA layer, where Siemens WinCC or WinCC OA visualizes breaker status, load curves, and alarm events on operator HMI screens. Operators at the Siemens SIMATIC HMI TP1200 Comfort panel can view real-time circuit status, acknowledge trip alarms, and initiate remote reset sequences — all without dispatching maintenance personnel to the switchgear room.

For facilities running distributed remote I/O architectures, the 3VL9300-3ME10 integrates naturally alongside Siemens ET 200SP remote I/O stations, which handle digital and analog signal acquisition from field devices such as proximity sensors, flow meters, and temperature transmitters. The combined data from both the power distribution layer and the process I/O layer converges at the PLC, enabling holistic plant visibility.

In drive-intensive applications — such as conveyor systems, pump stations, or compressor banks — the 3VL9300-3ME10 works in parallel with Siemens SINAMICS G120 variable frequency drives, which report motor load, speed, and fault status via PROFINET. Together, these devices feed a unified data model that supports predictive maintenance algorithms and maintenance planning routines running on edge computing platforms or cloud-connected MES systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of data across incompatible systems. Legacy circuit breakers operate as passive mechanical devices — they trip, they reset, but they generate no digital record of events. The Siemens 3VL9300-3ME10 directly addresses this by transforming the 3VL Series MCCB from a passive protection device into an active network node.

Protocol Unification: Many industrial sites run mixed communication environments — PROFIBUS segments from legacy installations coexisting with newer PROFINET infrastructure. The 3VL9300-3ME10, combined with appropriate Siemens COM modules, supports both environments, allowing the breaker to communicate across protocol boundaries without requiring a full network upgrade.

Eliminating Data Silos: Without network connectivity, breaker trip events are recorded only in local logs — if at all. With the 3VL9300-3ME10 in place, every trip event, overload condition, and status change is immediately propagated to the SCADA system, creating a complete, time-stamped audit trail that supports root cause analysis and regulatory compliance reporting.

Remote Monitoring and Diagnostics: Maintenance teams can monitor the health of the entire power distribution network from a central control room or even remotely via secure VPN connections to the SCADA server. This capability is especially valuable in large facilities — chemical plants, automotive assembly lines, data centers — where the switchgear rooms may be physically distant from the control center.

Production Line Transparency: By integrating power distribution data with process data from PLCs and remote I/O, plant managers gain a complete picture of operating load per production line, per shift, and per product run. This transparency is foundational to ISO 50001 energy management compliance and Industry 4.0 digital twin implementations.

Scalable System Expansion: The modular design of the 3VL Series means that additional breakers equipped with 3VL9300-3ME10 modules can be added to the network without architectural changes. The PROFIBUS or PROFINET segment simply gains additional nodes, and the SCADA system automatically discovers and integrates the new devices.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 3VL9300-3ME10 support?
The 3VL9300-3ME10 is a hardware interface accessory that enables the 3VL Series circuit breaker to connect with Siemens COM communication modules. Depending on the COM module selected (e.g., 3VL9300-3MC00 for PROFIBUS DP), the system supports PROFIBUS DP, and with appropriate gateways, PROFINET IO and Modbus RTU. This makes it compatible with Siemens SIMATIC S7 PLC platforms, WinCC SCADA, and third-party industrial networks.

Q2: How does the 3VL9300-3ME10 ensure network stability in demanding industrial environments?
The module is designed to Siemens’ industrial-grade specifications, ensuring reliable operation in environments with electrical noise, vibration, and temperature variation typical of manufacturing plants. The PROFIBUS DP protocol used in conjunction with this module provides deterministic communication with cycle times suitable for real-time monitoring applications, minimizing latency in alarm and status reporting.

Q3: Can the 3VL9300-3ME10 be integrated with existing SCADA and HMI systems?
Yes. The 3VL9300-3ME10, when paired with the appropriate COM module, integrates directly with Siemens WinCC, WinCC OA, and TIA Portal-based HMI systems. It is also compatible with third-party SCADA platforms that support PROFIBUS DP or Modbus RTU via gateway devices. This makes it suitable for both greenfield smart factory deployments and brownfield upgrades of existing industrial sites.

Q4: What warranty and testing standards apply to the 3VL9300-3ME10?
All units supplied by ZYPLC carry a warranty terms confirmed during quotation. Each unit undergoes pre-shipment functional testing to verify mechanical integrity and electrical interface compatibility. Stock is sourced from authorized distribution channels and stored under controlled conditions to maintain product quality. Global shipping via DHL and FedEx is available, with typical lead times of 3–7 business days depending on destination.
