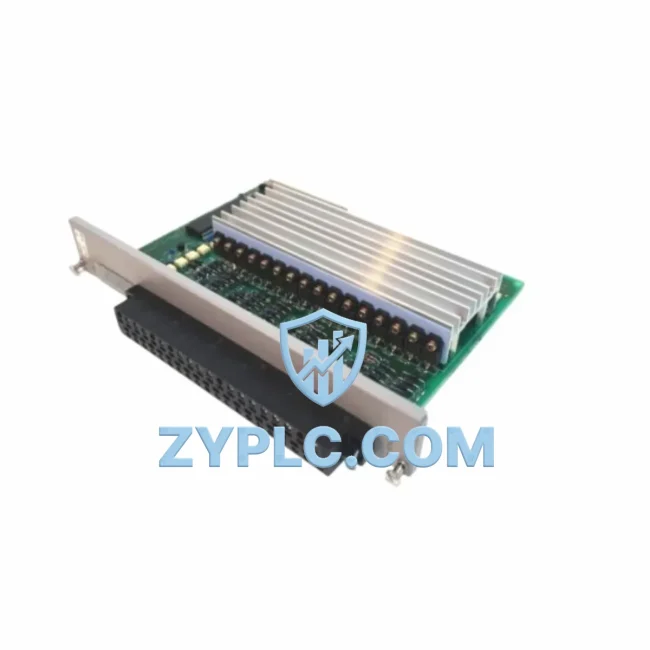

Siemens 505-4732 Industrial Network Interface for Series 500 Systems

Siemens 505-4732 Industrial Network Interface for Series 500 Systems: Enabling Smart Factory Data Links

The Siemens 505-4732 is a high-performance analog output module engineered for the Siemens Series 500 PLC platform — one of the most widely deployed programmable logic controller architectures in process automation and discrete manufacturing. Designed to bridge the gap between digital control logic and real-world field devices, the 505-4732 delivers precision analog signal output across 4–20 mA and 0–10 V ranges, making it a critical node in the industrial data chain that connects field instruments, drives, and actuators to upper-level SCADA and MES systems.

In today’s smart factory environment, the ability to transmit accurate, real-time analog data across a unified network architecture is no longer optional — it is foundational. The 505-4732 fulfills this role by serving as the analog output gateway within the Series 500 backplane, ensuring that control commands generated by the CPU module are faithfully converted into precise field-level signals that drive variable frequency drives (VFDs), proportional control valves, and process transmitters with minimal latency and maximum signal integrity.

Network Communication Table

Connected Automation Data Flow

Understanding the 505-4732’s role requires tracing the full industrial data flow from signal acquisition to system-level response. In a typical Series 500 automation architecture, field sensors — including pressure transmitters, temperature sensors, and flow meters — feed raw analog signals into the Siemens 505-4501 or 505-4502 Analog Input Modules, which digitize these readings and pass them across the Series 500 backplane to the CPU, such as the Siemens 505-6860 or 505-6870 CPU Module. The CPU processes the data according to the ladder logic program and issues output commands — and this is precisely where the 505-4732 takes over.

The 505-4732 receives the digital output values from the CPU and converts them into calibrated analog signals that drive downstream field devices. In a motor speed control loop, for example, the module’s 4–20 mA output connects directly to a Siemens SINAMICS G120 or MICROMASTER 440 variable frequency drive, modulating motor speed in real time based on process demand. In a flow control application, the same output channel may drive a proportional control valve, with feedback routed back through the analog input module to close the control loop.

For network-level integration, the Series 500 system communicates with upper-level SCADA platforms — such as Wonderware InTouch, Ignition SCADA, or Siemens WinCC — via the Siemens 505-CP1434 TF Communication Processor or a TIWAY I network adapter. This allows the 505-4732’s output register values to be monitored, logged, and adjusted remotely from the SCADA HMI, enabling operators to visualize analog output trends, set alarm thresholds, and perform remote tuning without physical access to the control panel. In distributed architectures, a Modbus TCP/IP gateway or OPC-UA edge gateway can bridge the Series 500 backplane data to modern IIoT platforms, making the 505-4732’s output data available for cloud analytics and predictive maintenance dashboards.

Remote I/O expansion is also supported through the Siemens 505-6850 Remote I/O Scanner, which allows the 505-4732 to be deployed in remote drop configurations — extending analog output capability to field junction boxes located hundreds of meters from the main control cabinet. This is particularly valuable in large-scale process plants, water treatment facilities, and oil and gas installations where centralized wiring is impractical. The remote I/O link maintains real-time synchronization with the CPU scan cycle, ensuring that analog output updates are delivered within the system’s defined response time.

At the HMI layer, operators interact with the 505-4732’s output channels through panel-mounted Siemens TP700 or TP1200 Comfort HMI panels, which display live analog output values, allow manual override during maintenance, and log historical output trends for process optimization. The seamless data path — from CPU register to analog output to field device to HMI visualization — is what makes the 505-4732 a cornerstone of the Series 500 smart factory data architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the condition where field-level analog signals remain trapped within local control loops, invisible to plant-wide SCADA systems, MES platforms, and enterprise ERP layers. The Siemens 505-4732, when properly integrated within a Series 500 network architecture, directly addresses this problem.

By standardizing analog output across all production zones on the Series 500 backplane protocol, the 505-4732 eliminates the signal fragmentation that occurs when different generations of control hardware use incompatible output formats. A plant that previously relied on standalone analog controllers — each with its own isolated 4–20 mA loop — can be unified under a single Series 500 PLC architecture, with all analog outputs centrally managed, monitored, and logged through a common SCADA gateway.

Protocol unification is achieved through the TIWAY network layer, which aggregates data from multiple Series 500 racks — each potentially housing multiple 505-4732 modules — into a single network segment accessible to the SCADA host. This eliminates the need for separate communication converters at each analog output point, reducing wiring complexity, minimizing potential failure points, and dramatically simplifying network maintenance.

For production line transparency, the 505-4732 enables real-time visibility into every analog output channel across the plant floor. Operators can monitor drive speed references, valve positions, and heater power outputs from a centralized HMI, compare actual versus setpoint values, and receive immediate alarm notifications when output deviations exceed defined tolerances. This level of transparency is essential for achieving OEE (Overall Equipment Effectiveness) targets and meeting ISO 9001 process control documentation requirements.

System expansion is straightforward: additional 505-4732 modules can be added to existing Series 500 racks without modifying the network architecture, and new racks can be connected to the TIWAY network as remote drops. This modular scalability ensures that the investment in Series 500 infrastructure continues to deliver value as production capacity grows.

Every Siemens 505-4732 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including channel-by-channel analog output verification, backplane communication integrity checks, and signal accuracy calibration. Units are shipped with a 12-month warranty and are available from in-stock inventory for immediate dispatch via DHL or FedEx Express to global destinations.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 505-4732 support for SCADA integration?
The 505-4732 communicates natively via the Series 500 backplane bus and is compatible with the TIWAY I network protocol for host communication. For integration with modern SCADA platforms using Modbus TCP/IP, Ethernet/IP, or OPC-UA, a protocol gateway such as the 505-CP1434 TF or a third-party Modbus/TIWAY converter is required. This allows the module’s analog output data to be accessed by Wonderware, Ignition, WinCC, and other SCADA systems in real time.

Q2: How does the 505-4732 perform in terms of communication latency and output update speed?
The 505-4732 updates its analog output channels synchronously with the Series 500 CPU scan cycle, which typically ranges from 5 to 50 milliseconds depending on program size and I/O configuration. This ensures that analog output values reflect the latest CPU register data within one scan cycle, providing deterministic response times suitable for closed-loop process control applications including PID loops, drive speed regulation, and valve positioning.

Q3: Is the Siemens 505-4732 compatible with CTI (Control Technology Inc.) Series 500 systems?
Yes. The 505-4732 is fully compatible with CTI 2500 Series controllers and CTI-compatible Series 500 racks, as CTI maintains backward compatibility with the original Siemens/Texas Instruments Series 500 I/O architecture. This makes the 505-4732 an ideal replacement or expansion module for sites that have migrated from Siemens to CTI controllers while retaining their existing Series 500 I/O infrastructure.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every 505-4732 unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes a comprehensive pre-shipment test protocol that includes analog output channel verification across the full 4–20 mA and voltage output range, backplane communication handshake testing, and visual inspection for physical integrity. Test records are available upon request. In the event of a warranty claim, ZYPLC provides advance replacement or repair service to minimize production downtime.
