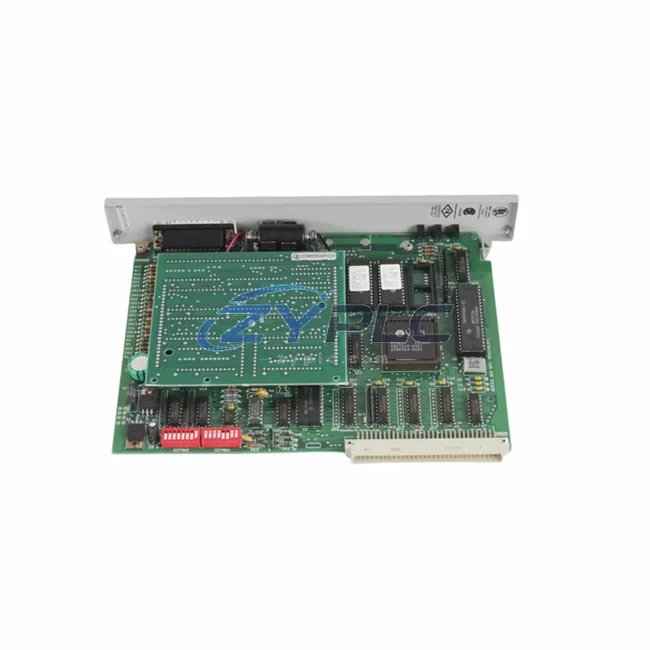

Siemens 505-RTU Industrial Network Interface for 505 Systems

Siemens 505-RTU Industrial Network Interface for 505 Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and supervisory systems is the backbone of operational efficiency. The Siemens 505-RTU is a purpose-built Modbus RTU communication gateway designed for the Series 505 programmable controller platform, enabling reliable protocol conversion, real-time data acquisition, and transparent integration across multi-layer industrial networks. Whether connecting legacy RTU field instruments to contemporary SCADA platforms or bridging distributed I/O nodes with centralized PLC controllers, the 505-RTU delivers the communication stability and deterministic throughput that industrial automation demands.

Compatibility & Integration Notes

Connected Automation Data Flow

The 505-RTU sits at the heart of a layered industrial communication architecture. At the field level, analog and digital sensors — including pressure transmitters, flow meters, and temperature probes — feed raw process data into the Modbus RTU bus. The 505-RTU collects these signals and translates them into structured data frames compatible with the Siemens Series 505 PLC backplane, where the CPU module — such as the 505-6860 or 505-6660 processor — executes control logic in real time.

For distributed installations, the 505-RTU works in tandem with remote I/O modules like the 505-4832 analog input module and 505-4808 digital I/O module, extending the data acquisition reach across large plant floors without requiring additional cabling infrastructure. The gateway’s RS-485 multi-drop capability allows a single 505-RTU to poll multiple remote nodes simultaneously, reducing scan cycle latency and improving overall network determinism.

At the supervisory layer, the 505-RTU interfaces with HMI panels and SCADA servers through the Modbus RTU protocol stack. Systems running on platforms such as Wonderware InTouch, iFIX, or Ignition SCADA can map 505-RTU data registers directly to real-time process displays, trend historians, and alarm management consoles. The 505-CP2572 communication processor further extends connectivity options by bridging the Series 505 backplane to Ethernet-based networks, enabling the 505-RTU’s field data to reach cloud-based MES and ERP systems via OPC-DA or OPC-UA middleware.

Variable frequency drives (VFDs) and servo controllers connected via Modbus RTU — such as Siemens SINAMICS G120 or MICROMASTER 440 series drives — can be monitored and parameterized through the 505-RTU gateway, allowing SCADA operators to adjust speed references, read fault codes, and log energy consumption data without interrupting production. Similarly, smart power meters and energy analyzers on the Modbus bus feed consumption data into the Series 505 controller for demand management and predictive maintenance routines.

Edge gateway devices, including Siemens SCALANCE M800 series industrial routers, can be deployed alongside the 505-RTU to provide secure remote access tunnels for off-site engineers performing diagnostics, firmware updates, or parameter adjustments — all without requiring physical presence on the plant floor.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where field devices, PLCs, drives, and supervisory systems each speak a different communication dialect, creating data silos that prevent unified visibility and control. The Siemens 505-RTU directly addresses this by acting as a universal Modbus RTU gateway that normalizes data from heterogeneous field devices into a single, consistent data stream readable by the Series 505 controller and any connected SCADA or HMI platform.

Remote monitoring is another critical pain point in geographically distributed installations such as water treatment plants, oil and gas pipelines, and power substations. The 505-RTU’s deterministic polling architecture ensures that remote field data arrives at the control room with minimal latency, enabling operators to detect process anomalies, trigger alarms, and initiate corrective actions in near real time. When paired with the 505-CP2572 Ethernet communication processor, the gateway supports remote diagnostics over TCP/IP, allowing maintenance teams to interrogate device registers, review communication logs, and isolate faults from a centralized network operations center.

Production line transparency — the ability to see every machine’s status, throughput, and health in a unified dashboard — is a core requirement of Industry 4.0 initiatives. The 505-RTU enables this by feeding structured Modbus data into SCADA historians and MES platforms, where analytics engines can generate OEE reports, identify bottlenecks, and schedule predictive maintenance windows based on actual equipment condition rather than fixed time intervals. System expansion is equally straightforward: additional Modbus slave devices can be added to the RS-485 bus without modifying the existing network topology, making the 505-RTU a future-proof investment for growing automation infrastructures.

Every 505-RTU unit shipped by ZYPLC undergoes full functional testing prior to dispatch, including communication loop-back verification, register read/write validation, and bus termination checks. This ensures that the module arrives ready for immediate installation and commissioning, minimizing downtime and reducing the risk of field failures.

Industrial Connectivity FAQ

Q1: What is the typical communication latency of the Siemens 505-RTU on a Modbus RTU network?
A: Under standard operating conditions with a 9600 baud RS-485 bus and up to 32 active slave nodes, the 505-RTU achieves polling cycle times in the range of 50–200 ms per node, depending on register block size and bus loading. For time-critical applications, reducing the number of polled registers per scan and increasing baud rate to 19200 or 38400 bps can significantly reduce end-to-end latency.

Q2: Is the 505-RTU compatible with third-party Modbus RTU master systems such as Ignition SCADA or Wonderware?
A: Yes. The 505-RTU implements the standard Modbus RTU protocol (function codes FC01–FC06, FC15, FC16), making it fully interoperable with any compliant Modbus master, including Ignition, Wonderware InTouch, iFIX, and RSView. No proprietary drivers or software licenses are required for basic connectivity.

Q3: How does the 505-RTU handle network instability or bus faults in harsh industrial environments?
A: The 505-RTU incorporates built-in bus fault detection and automatic retry logic. In the event of a communication timeout or CRC error, the module re-initiates the polling sequence without requiring a controller restart. Optical isolation on the RS-485 interface protects against ground loops and transient voltage spikes common in industrial environments, ensuring sustained network stability even in electrically noisy installations.

Q4: What warranty and post-sale support does ZYPLC provide for the Siemens 505-RTU?
A: All Siemens 505-RTU units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit is pre-tested and verified before dispatch. In the event of a confirmed hardware defect within the warranty period, ZYPLC provides replacement or repair at no additional cost. Our technical team is available via email and phone to assist with installation, configuration, and troubleshooting queries.
