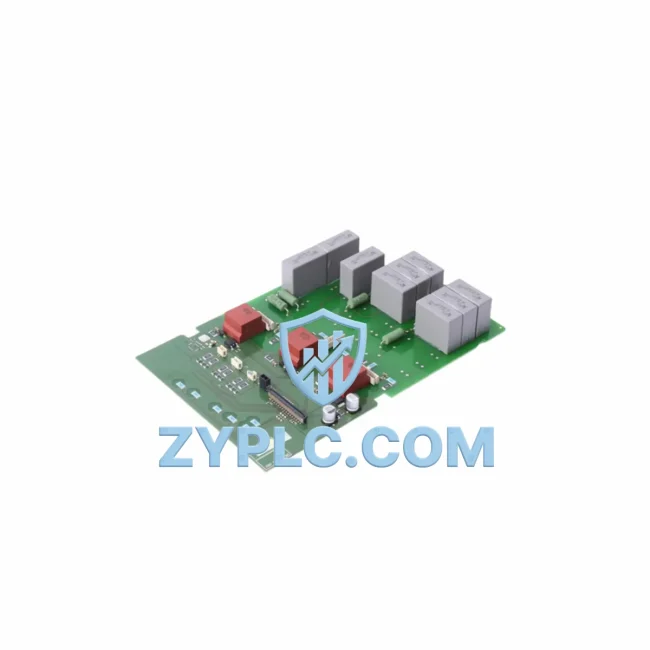

Siemens 535208905 Industrial Network Interface for SINAMICS Systems: Enabling Real-Time Data Links in Smart Factory Environments

In modern industrial automation, the ability to transmit drive data reliably across a plant network is no longer optional — it is the foundation of operational transparency, predictive maintenance, and system scalability. The Siemens 535208905 PROFINET Drive Control Board is engineered to serve as the critical communication bridge within the SINAMICS drive platform, connecting variable-speed drives to upper-level control systems, SCADA platforms, and HMI interfaces through a high-speed, deterministic PROFINET network. Whether deployed in a new smart factory build or integrated into an existing automation architecture, this board delivers the connectivity performance that modern industrial sites demand.

Network Communication Table

Connected Automation Data Flow

The Siemens 535208905 sits at the intersection of the field device layer and the control network layer, enabling seamless data exchange between the drive and the broader automation ecosystem. In a typical SINAMICS-based architecture, the drive control board interfaces directly with a Siemens S7-1500 PLC or S7-1200 PLC acting as the PROFINET IO Controller, receiving speed setpoints, torque commands, and fault acknowledgment signals in real time. The cyclic data exchange operates at sub-millisecond cycle times, ensuring that the drive responds instantly to process demands.

Upstream, the S7-1500 communicates with a Siemens SIMATIC HMI TP1500 or KTP900 Basic Panel, where operators monitor drive status, running frequency, output current, and alarm history. The HMI data is refreshed continuously via the PROFINET backbone, giving floor supervisors a live view of every drive in the system. For plant-wide visibility, the PROFINET network connects to a SIMATIC WinCC SCADA server, which aggregates drive data from multiple SINAMICS units across production lines, enabling trend analysis, energy monitoring, and remote diagnostics from the control room.

At the field level, the 535208905 board enables the SINAMICS drive to receive process feedback from Siemens SIRIUS 3RW soft starters and encoder modules, closing the control loop with precision. In multi-drive applications — such as coordinated conveyor systems or pump stations — the board supports PROFINET device-to-device communication, allowing drives to share load data and synchronize speed profiles without routing every signal through the PLC. This reduces controller scan time and improves system response.

For remote I/O expansion, the PROFINET network can extend to Siemens ET 200SP or ET 200MP distributed I/O stations, which collect digital and analog signals from sensors, limit switches, and pressure transmitters across the plant floor. These I/O nodes feed process data back through the same PROFINET infrastructure, eliminating the need for separate fieldbus wiring and reducing installation complexity. In facilities where legacy Modbus RTU or PROFIBUS devices still operate, a Siemens IE/PB Link PN IO gateway bridges the older protocol segments into the PROFINET domain, preserving existing investments while modernizing the network architecture.

Power supply stability for the entire communication chain is maintained by Siemens SITOP PSU8200 industrial power supplies, which provide regulated 24 VDC to the control boards, I/O modules, and network switches. The PROFINET switches — such as the Siemens SCALANCE X208 managed industrial Ethernet switch — provide port-level diagnostics, VLAN segmentation, and redundant ring topology support, ensuring that a single cable fault does not interrupt drive communication across the production line.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with fragmented automation islands — drives running on proprietary serial protocols, PLCs on isolated Ethernet segments, and SCADA systems receiving data only through manual OPC polling. The result is delayed fault response, incomplete production records, and maintenance teams that cannot diagnose drive faults remotely. The Siemens 535208905 PROFINET Drive Control Board directly addresses these challenges by standardizing drive communication on an open, high-performance industrial Ethernet protocol.

By replacing a legacy communication board with the 535208905, a SINAMICS drive that previously reported only basic run/fault status can now expose its full parameter set — output frequency, DC bus voltage, motor temperature, energy consumption, and fault history — to the SCADA system in real time. This data transparency enables condition-based maintenance scheduling, reducing unplanned downtime and extending drive service life. Production line managers gain the ability to track drive performance KPIs across shifts, identify underperforming units before they fail, and generate automated maintenance work orders through the SCADA platform.

For multi-site operations, the PROFINET architecture supports remote access through secure industrial routers, allowing engineering teams to perform drive parameter adjustments, firmware updates, and fault diagnostics without traveling to the plant. This capability is particularly valuable in water treatment facilities, mining operations, and offshore installations where site access is costly and time-consuming. The 535208905 board’s support for PROFINET IRT (Isochronous Real-Time) mode also makes it suitable for motion-critical applications — such as packaging machinery and precision winding lines — where drive synchronization must be maintained within microseconds.

System expansion is equally straightforward. As production capacity grows, additional SINAMICS drives equipped with 535208905 boards can be added to the PROFINET ring without reconfiguring the existing network. The PROFINET IO Controller automatically detects new devices, assigns addresses, and downloads drive parameters from the engineering station, reducing commissioning time from days to hours. This plug-and-produce capability is a key advantage in industries with frequent product changeovers, such as automotive assembly and food and beverage processing.

Industrial Connectivity FAQ

Q1: Does the Siemens 535208905 support both PROFINET RT and IRT communication modes?
Yes. The 535208905 board supports both PROFINET RT (Real-Time) for standard drive control applications and PROFINET IRT (Isochronous Real-Time) for motion-synchronized applications requiring deterministic cycle times. The operating mode is configured through the TIA Portal or STEP 7 engineering software during network commissioning. IRT mode requires a managed PROFINET switch such as the SCALANCE X series to maintain isochronous timing across the network.

Q2: Is the 535208905 compatible with Siemens TIA Portal and existing S7-300/S7-400 PROFINET controllers?
The 535208905 is designed for the SINAMICS drive platform and is fully compatible with TIA Portal V13 and later for configuration and diagnostics. Compatibility with S7-300 and S7-400 PROFINET IO Controllers depends on the specific firmware version of the drive and the GSD file used for device integration. For legacy S7-300 systems using STEP 7 Classic, the SINAMICS GSD file must be imported into the hardware configuration. Our technical team can advise on firmware and GSD file compatibility prior to shipment.

Q3: What does the 12-Month Warranty cover, and how is the board tested before shipment?
Every Siemens 535208905 board supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including PROFINET communication initialization, parameter read/write testing, and visual inspection for component integrity. Boards that do not pass functional testing are not shipped. In the event of a warranty claim, ZYPLC provides replacement or repair support with documented fault analysis. Contact plc.sales@zyplc.com for warranty registration and claim procedures.

Q4: Can the 535208905 be used in a redundant PROFINET ring topology for high-availability applications?
Yes, when used in conjunction with PROFINET-capable managed switches such as the Siemens SCALANCE X208 or X308-2, the 535208905 supports Media Redundancy Protocol (MRP) ring topologies. In MRP mode, a cable break in the ring is detected and the network reconfigures within 200 milliseconds, maintaining drive communication without operator intervention. This configuration is recommended for critical process applications in power generation, chemical processing, and water infrastructure where drive communication loss would trigger a plant shutdown.
