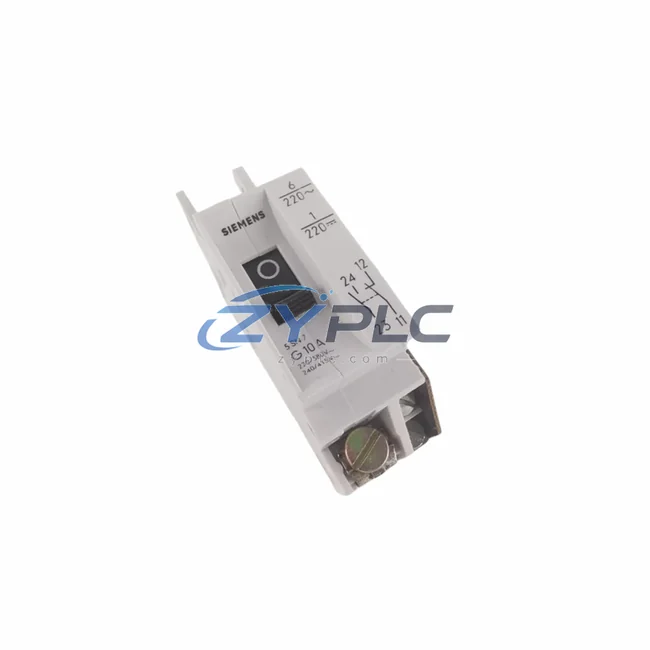

Siemens 5SN7G10A Miniature Circuit Breaker for 5SN Series

Siemens 5SN7G10A Miniature Circuit Breaker for 5SN Series

In modern industrial automation, the integrity of a control system depends not only on the intelligence of its programmable controllers or the responsiveness of its field devices, but equally on the reliability of its power protection layer. The Siemens 5SN7G10A Miniature Circuit Breaker (MCB) is engineered to serve as a foundational protection component within 5SN Series switchgear architectures, delivering consistent overcurrent and short-circuit protection across the full vertical stack of an industrial control system — from the incoming power distribution panel down to individual I/O module supply rails.

Unlike generic circuit protection devices, the 5SN7G10A is designed with system-level integration in mind. Its compact DIN-rail form factor, standardized terminal geometry, and Siemens-compatible accessory ecosystem make it a natural fit for control cabinets housing SIMATIC S7-300, S7-400, or S7-1500 series PLCs, where consistent power quality and fault isolation are prerequisites for uninterrupted process control. When deployed alongside SITOP PSU100S or SITOP PSU8600 power supply modules, the 5SN7G10A provides selective protection that prevents a single branch fault from cascading into a full system shutdown — a critical requirement in continuous process industries such as petrochemical refining, water treatment, and metallurgical processing.

Product Specification Table

System Compatibility Notes

The 5SN7G10A achieves its highest value when considered as part of a coordinated protection and control architecture rather than as a standalone device. In a typical SIMATIC-based automation system, the control layer is anchored by a CPU module such as the SIMATIC S7-1500 CPU 1516-3 PN/DP or the S7-300 CPU 315-2 DP, which orchestrates process logic and communicates with field devices via PROFIBUS DP or PROFINET IO. These CPUs are housed in standardized backplane racks — the SIMATIC S7-300 DIN Rail Rack (UR2) or the S7-1500 mounting rail — and require stable, well-protected 24 V DC supply rails to maintain deterministic scan cycle performance.

Power to these racks is typically sourced from a SITOP PSU100S 24 V/10 A or SITOP PSU8600 modular power supply, which converts incoming AC mains voltage to regulated DC. The 5SN7G10A is installed upstream of these power supplies on the AC distribution bus, providing the first line of overcurrent defense. Its Type G tripping characteristic is particularly well-suited to the inrush current profiles of switched-mode power supplies, preventing nuisance tripping during system startup while still responding decisively to genuine fault conditions.

On the I/O layer, distributed I/O stations such as the SIMATIC ET 200SP or ET 200M interface modules extend the control system’s reach to remote field locations. Each ET 200SP station requires its own protected 24 V DC supply branch, and the 5SN7G10A — when used in conjunction with a SITOP PSU100C or similar compact supply — ensures that a wiring fault at a remote I/O station does not propagate back to the main control cabinet. This branch-level isolation is a cornerstone of selective protection design, a methodology endorsed by Siemens SENTRON engineering guidelines.

At the communication and network layer, SCALANCE X208 or SCALANCE XC216 managed Ethernet switches provide the PROFINET backbone that links PLCs, HMIs, and remote I/O. These network components are equally sensitive to power quality disturbances, and their supply branches benefit from the same MCB-based protection strategy. Similarly, SIMATIC HMI TP1200 Comfort or KTP900 Basic panels — which serve as the human-machine interface layer — are typically powered from dedicated protected branches to prevent HMI loss during field-side fault events.

For applications requiring relay output expansion or signal conditioning, SIRIUS 3RQ3 coupling relays or 3RT2 contactors are commonly integrated into the same control cabinet. The 5SN7G10A provides upstream protection for the 24 V DC coil supply circuits of these devices, ensuring that a coil short-circuit does not disable the entire relay output group. This level of system integration — where each protection device is selected and positioned based on its role within the broader system architecture — is what distinguishes a professionally engineered control panel from a collection of individually specified components.

Industrial Application Notes

The 5SN7G10A finds application across a wide range of industrial sectors where layered automation architectures are standard practice. In power generation and distribution facilities, it protects the auxiliary control circuits of generator excitation panels and substation RTU cabinets, where fault isolation speed directly impacts grid stability. In petrochemical and refinery environments, it is deployed in Ex-rated control rooms as part of Zener barrier or galvanic isolator supply circuits, where IEC 60079 compliance and selective tripping are mandatory.

In water and wastewater treatment plants, the 5SN7G10A protects the 24 V DC supply branches feeding SCADA-connected remote I/O stations at pump stations and filtration units, where unattended operation demands the highest levels of protection selectivity. In metallurgical and mining applications, it is used in motor control centers (MCCs) to protect the control voltage circuits of variable frequency drives (VFDs) and soft starters, preventing control circuit faults from triggering unplanned motor shutdowns on critical conveyor or crusher systems.

In automotive and discrete manufacturing assembly lines, the 5SN7G10A is integrated into machine control panels alongside SIMATIC S7-1200 or S7-1500 PLCs, protecting the 24 V DC I/O supply rails that feed proximity sensors, solenoid valves, and servo drive enable circuits. Its compact 1-pole format allows high-density installation in space-constrained machine cabinets, while its DIN-rail snap-fit mounting accelerates panel assembly and simplifies future maintenance access.

Product Compatibility FAQ

Q1: Is the Siemens 5SN7G10A compatible with SIMATIC S7-1500 and ET 200SP system architectures?
Yes. The 5SN7G10A is a SENTRON series MCB designed for DIN-rail installation in standard industrial control cabinets. It is fully compatible with the power distribution architecture used in SIMATIC S7-1500 and ET 200SP deployments. It is typically installed on the AC input side of SITOP power supplies that feed the 24 V DC backplane and I/O supply rails. Its standardized terminal dimensions and Siemens accessory compatibility (auxiliary contacts, shunt releases, BDA modules) allow seamless integration into existing SENTRON switchgear assemblies without panel redesign.

Q2: How does the Type G tripping characteristic affect system startup behavior in PLC control panels?
The Type G characteristic provides a higher instantaneous tripping threshold compared to Type B or Type C MCBs, making it specifically suited for loads with high inrush currents such as switched-mode power supplies (SMPS), transformers, and motor starters. In a SIMATIC control panel, SITOP power supplies exhibit significant inrush current during cold-start conditions. Using a Type G MCB like the 5SN7G10A prevents nuisance tripping during system energization while maintaining full short-circuit protection during steady-state operation. This characteristic is recommended by Siemens SENTRON application engineering for SMPS protection applications.

Q3: What warranty terms are confirmed during quotation, and how does ZYPLC support long-term spare parts availability?
ZYPLC provides a warranty terms confirmed during quotation on the Siemens 5SN7G10A covering manufacturing defects and functional failures under normal operating conditions. Our inventory is sourced from verified supply channels and each unit undergoes functional inspection prior to dispatch. For long-term maintenance planning, ZYPLC supports RFQ sourcing for 5SN Series MCBs and associated SENTRON accessories to support planned maintenance shutdowns, emergency replacements, and multi-site spare parts standardization programs. Contact our engineering sales team at plc.sales@zyplc.com or +86 19859288691 to discuss volume pricing, lead times, and system-level procurement support.
