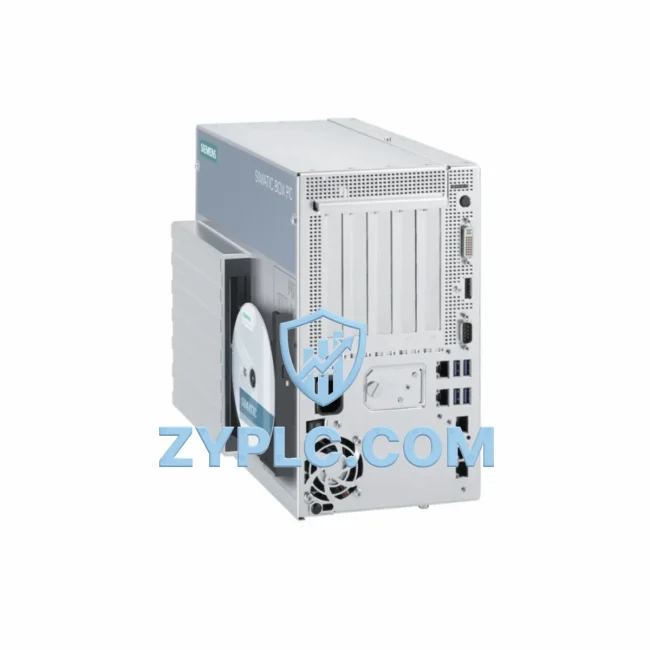

Siemens 6AG4132-2GG10-0AX3 Industrial Network Interface for SIMATIC IPC Systems

Siemens 6AG4132-2GG10-0AX3 Industrial Network Interface for SIMATIC IPC Systems: Backbone of Smart Factory Data Links

The Siemens 6AG4132-2GG10-0AX3 is an onboard RAID controller engineered for the SIMATIC IPC series — Siemens’ flagship line of industrial-grade panel PCs and rack-mounted computing platforms deployed across discrete manufacturing, process automation, and smart factory environments. As the data storage backbone of the SIMATIC IPC, this RAID controller ensures continuous, redundant data availability across every layer of the industrial automation stack: from field-level signal acquisition and PLC control logic to SCADA supervisory systems, HMI visualization, and enterprise MES/ERP integration.

In modern industrial networks, data integrity is not optional — it is the foundation of operational continuity. The 6AG4132-2GG10-0AX3 delivers hardware-level RAID redundancy directly onboard the SIMATIC IPC, eliminating single points of storage failure that could disrupt real-time process control, alarm management, historian logging, or remote diagnostics. Whether the SIMATIC IPC is functioning as a SCADA server, an OPC UA gateway, a soft PLC host, or a centralized HMI station, this RAID controller ensures that no data transaction — from a Profinet I/O cycle to a MODBUS TCP polling event — is ever lost due to a storage fault.

Network Communication Table

Connected Automation Data Flow

The 6AG4132-2GG10-0AX3 sits at the heart of a layered industrial data architecture. At the field level, sensors, actuators, and remote I/O modules — such as the Siemens ET 200SP distributed I/O system — continuously feed process values upward through PROFINET or PROFIBUS DP networks to the SIMATIC S7-1500 PLC series. The S7-1500 executes real-time control logic and forwards structured data via OPC UA or MODBUS TCP to the SIMATIC IPC hosting this RAID controller. Because the IPC serves as the central data node — running WinCC SCADA, TIA Portal visualization, or third-party historian software — the integrity of its onboard storage directly determines the reliability of every upstream and downstream data transaction.

In a typical smart factory deployment, the SIMATIC IPC equipped with the 6AG4132-2GG10-0AX3 connects via Industrial Ethernet switches — such as the Siemens SCALANCE X series managed switches — to both the plant floor network and the enterprise IT backbone. Variable frequency drives (VFDs) such as the Siemens SINAMICS G120 series report speed, torque, and fault data through PROFINET to the S7-1500, which in turn logs this data to the SIMATIC IPC historian. The RAID controller ensures that even during a drive fault event or emergency stop sequence, all alarm records, trend data, and diagnostic logs are preserved without interruption.

For remote monitoring and diagnostics, the SIMATIC IPC communicates with SINEMA Remote Connect or TeleService gateways, enabling plant engineers to access live SCADA dashboards, review historian data, and push firmware updates to field devices — all without physical site access. The 6AG4132-2GG10-0AX3 guarantees that the IPC’s operating system, SCADA runtime, and data historian remain fully operational and redundant throughout these remote sessions. Integration with Siemens SIMATIC WinCC Open Architecture (OA) or third-party SCADA platforms via OPC DA/UA is equally supported, as the RAID controller imposes no protocol-level restrictions on the host IPC’s communication stack.

Edge computing scenarios further highlight the value of this RAID controller. When the SIMATIC IPC is deployed as an edge gateway — aggregating data from multiple SIMATIC S7-300 or S7-400 legacy PLCs via CP 343-1 or CP 443-1 Ethernet communication processors — the 6AG4132-2GG10-0AX3 ensures that edge analytics, machine learning inference results, and protocol translation logs are stored redundantly. This is critical in brownfield integration projects where legacy PROFIBUS or MPI networks are being bridged to modern Industrial Ethernet architectures through the SIMATIC IPC.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, control systems, and enterprise platforms operate in disconnected silos, unable to share process data in real time. The Siemens 6AG4132-2GG10-0AX3, as the storage foundation of the SIMATIC IPC, directly addresses this challenge by ensuring that the IPC — the central integration node — never suffers a storage-related outage that would sever data flows between layers.

Protocol fragmentation is another common barrier. A single production line may simultaneously run PROFINET for motion control, MODBUS RTU for legacy sensors, HART for field instruments, and OPC UA for MES connectivity. The SIMATIC IPC, backed by the redundant storage of the 6AG4132-2GG10-0AX3, runs protocol gateway software that translates and normalizes these diverse data streams into a unified format accessible to SCADA, historian, and ERP systems. Without reliable onboard storage, protocol translation tables, configuration databases, and communication logs would be at risk during any storage fault event.

Production line transparency — the ability to visualize real-time KPIs, OEE metrics, and alarm states across an entire facility — depends on uninterrupted data flow from every connected device to the SCADA/HMI layer. The 6AG4132-2GG10-0AX3 ensures that the SIMATIC IPC’s SCADA runtime and historian are always available, supporting continuous data acquisition cycles as short as 100ms and alarm response times within IEC 62682 compliance thresholds. System scalability is equally supported: as new production cells, robotic workstations, or remote I/O nodes are added to the network, the SIMATIC IPC’s storage capacity scales through RAID-protected drives without requiring architectural redesign.

Every unit of the 6AG4132-2GG10-0AX3 supplied by ZYPLC undergoes pre-shipment functional verification, is backed by a 12-month warranty, and is available from in-stock inventory for immediate global dispatch — minimizing downtime in both new installations and emergency replacement scenarios.

Industrial Connectivity FAQ

Q1: Does the 6AG4132-2GG10-0AX3 affect PROFINET or OPC UA communication latency on the SIMATIC IPC?
A: No. As an onboard storage controller, the 6AG4132-2GG10-0AX3 operates independently of the IPC’s network interface cards and communication stacks. PROFINET cycle times, OPC UA subscription intervals, and MODBUS TCP polling rates are governed by the IPC’s CPU and NIC configuration, not by the RAID controller. The RAID controller’s role is to ensure that all data written by these communication processes is stored redundantly without impacting network-layer performance.

Q2: Is the 6AG4132-2GG10-0AX3 compatible with SIMATIC WinCC and third-party SCADA platforms?
A: Yes. The RAID controller is transparent to all software running on the SIMATIC IPC, including SIMATIC WinCC, WinCC OA, Ignition SCADA, and any OPC UA-compliant historian or MES platform. It provides the underlying storage redundancy that these applications rely on for continuous operation, alarm logging, and trend data retention.

Q3: What happens to industrial network data if one drive in the RAID array fails?
A: In RAID 1 (mirror) configuration, the SIMATIC IPC continues operating normally on the surviving drive with zero data loss and no interruption to SCADA, HMI, or historian functions. The system generates a fault alert — visible in the IPC’s management interface and optionally forwarded to SCADA alarm systems — prompting maintenance personnel to replace the failed drive. The replacement drive is then automatically rebuilt into the mirror array without requiring a system shutdown.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 6AG4132-2GG10-0AX3?
A: Every 6AG4132-2GG10-0AX3 unit shipped by ZYPLC is sourced from verified supply channels, subjected to pre-shipment functional testing to confirm RAID controller initialization and drive detection, and covered by a 12-month warranty against manufacturing defects. In-stock units are available for same-day or next-business-day dispatch to minimize production downtime. For urgent replacement requirements, contact our technical sales team directly.
