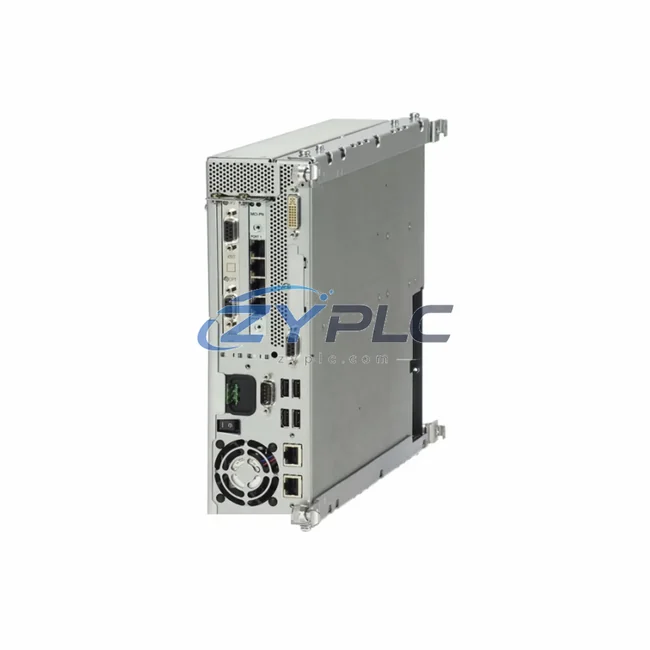

Siemens 6AU1350-3AK41-1BE2 Industrial Network Interface for SIMOTION P350-3

Siemens 6AU1350-3AK41-1BE2 Industrial Network Interface: Bridging the SIMOTION Data Link in Smart Factory Environments

The Siemens 6AU1350-3AK41-1BE2 is a high-performance ISOPROFIBUS communication board engineered for the SIMOTION P350-3 motion control platform. Designed to serve as a critical industrial network interface, this module enables seamless PROFIBUS DP and MPI protocol communication between motion controllers, field devices, and upper-level automation systems. In modern smart factory deployments where real-time data integrity and network stability are non-negotiable, the 6AU1350-3AK41-1BE2 delivers the connectivity backbone that keeps production lines transparent, responsive, and fully integrated.

As industrial sites evolve toward IIoT-ready architectures, the demand for reliable protocol gateways that can bridge legacy fieldbus networks with contemporary SCADA and MES platforms has never been greater. The 6AU1350-3AK41-1BE2 answers this demand by providing deterministic PROFIBUS communication with cycle times optimized for motion-critical applications, ensuring that every data packet — from encoder feedback to drive status — reaches its destination without latency-induced errors.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory data flow, the 6AU1350-3AK41-1BE2 sits at the heart of the motion control communication chain. Signal acquisition begins at the field level, where sensors, encoders, and actuators connected to SIMATIC ET 200SP or ET 200M remote I/O stations transmit process data over the PROFIBUS DP network. The 6AU1350-3AK41-1BE2 board, installed within the SIMOTION P350-3, receives this cyclic data and processes it in real time, coordinating multi-axis motion sequences with microsecond-level precision.

Upstream, the SIMOTION P350-3 communicates with SIMATIC S7-300 or S7-400 PLCs via MPI, enabling coordinated control between motion and process automation layers. Variable frequency drives such as the SINAMICS S120 drive system are integrated directly into the PROFIBUS segment, with the 6AU1350-3AK41-1BE2 managing drive parameter exchange, fault acknowledgment, and speed reference transmission without additional gateway hardware.

At the supervisory level, WinCC SCADA or WinCC flexible HMI panels connect to the PROFIBUS network to visualize axis positions, drive states, and alarm conditions in real time. The SIMOTION Scout engineering software communicates with the P350-3 via MPI during commissioning and online diagnostics, while in production, the 6AU1350-3AK41-1BE2 maintains the cyclic data exchange that keeps the SCADA dashboard current. For sites deploying edge computing, an industrial edge gateway such as the SIMATIC IPC427E can aggregate PROFIBUS data and forward it to cloud-based MES or ERP platforms via OPC UA, extending the data chain from field device to enterprise system.

Additional components commonly deployed alongside the 6AU1350-3AK41-1BE2 include PROFIBUS DP/PA segment couplers for process instrumentation integration, SIMATIC DP/DP couplers for cross-network data exchange between independent PROFIBUS segments, and SCALANCE X industrial Ethernet switches that bridge PROFIBUS islands to the plant-wide PROFINET backbone. This layered architecture ensures that every device — from a proximity sensor on the conveyor to a servo drive on the packaging line — contributes its data to a unified, transparent production intelligence system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A facility may operate SIMOTION P350-3 controllers alongside newer PROFINET-based SIMATIC S7-1500 PLCs, legacy MPI-connected operator panels, and third-party drives using proprietary fieldbus variants. Without a reliable protocol interface like the 6AU1350-3AK41-1BE2, these systems operate as data islands — each collecting valuable process information that never reaches the SCADA layer or the production manager’s dashboard.

The 6AU1350-3AK41-1BE2 directly addresses this isolation by providing a stable, high-speed PROFIBUS DP and MPI interface that allows the SIMOTION P350-3 to participate fully in both legacy and hybrid network architectures. Protocol conversion between MPI and PROFIBUS DP is handled transparently within the board, eliminating the need for external protocol converters that introduce additional failure points and communication latency.

For remote monitoring and diagnostics, the PROFIBUS network managed by the 6AU1350-3AK41-1BE2 supports SIMATIC PDM (Process Device Manager) for intelligent field device parameterization and fault diagnosis without physical access to the device. Alarm conditions detected at the drive or sensor level propagate immediately through the PROFIBUS segment to the WinCC SCADA alarm server, enabling maintenance teams to respond to faults within seconds rather than minutes. This capability is particularly valuable in continuous process industries — food and beverage, pharmaceutical, automotive — where unplanned downtime carries significant financial and compliance consequences.

System expansion is equally straightforward. Additional PROFIBUS slaves — whether ET 200S distributed I/O stations, SINAMICS G120 drives, or third-party PROFIBUS-compatible sensors — can be added to the network without modifying the 6AU1350-3AK41-1BE2 configuration, provided the total network load remains within PROFIBUS segment limits. This scalability makes the 6AU1350-3AK41-1BE2 a long-term investment for facilities planning phased automation upgrades.

Every 6AU1350-3AK41-1BE2 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, protocol handshake performance, and hardware condition. Units are covered by a warranty terms confirmed during quotation and shipped via DHL or FedEx express with full tracking, ensuring that your production schedule is not compromised by supply chain delays.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed supported by the 6AU1350-3AK41-1BE2?
The 6AU1350-3AK41-1BE2 supports PROFIBUS DP transmission rates up to 12 Mbit/s, with the actual operating speed automatically negotiated based on the network configuration and cable length. For most motion control applications with cable runs under 100 meters, 12 Mbit/s operation is achievable, delivering cycle times well within the requirements of high-speed servo and spindle control.

Q2: Is the 6AU1350-3AK41-1BE2 compatible with SIMATIC S7 PLCs and WinCC SCADA?
Yes. The MPI interface on the 6AU1350-3AK41-1BE2 is fully compatible with SIMATIC S7-300 and S7-400 PLCs, and the PROFIBUS DP interface supports communication with WinCC SCADA, WinCC flexible HMI, and SIMATIC Step 7 / TIA Portal engineering environments. This makes it straightforward to integrate the SIMOTION P350-3 into existing SIMATIC automation architectures without additional protocol conversion hardware.

Q3: How does the isolated PROFIBUS design improve network stability?
The “ISO” designation in ISOPROFIBUS indicates galvanic isolation between the PROFIBUS interface and the internal bus of the SIMOTION P350-3. This isolation protects the controller from ground loops, voltage transients, and electromagnetic interference that are common in industrial environments with heavy motor loads, welding equipment, or variable frequency drives. The result is a more stable network with fewer communication errors and reduced risk of hardware damage from electrical disturbances.

Q4: What warranty and testing does ZYPLC provide for the 6AU1350-3AK41-1BE2?
All 6AU1350-3AK41-1BE2 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each unit undergoes pre-shipment functional testing to verify communication protocol operation, hardware integrity, and compatibility with SIMOTION P350-3 systems. Units are shipped via DHL or FedEx express with full tracking. For volume orders or urgent requirements, please contact our team directly for lead time confirmation and RFQ support.
