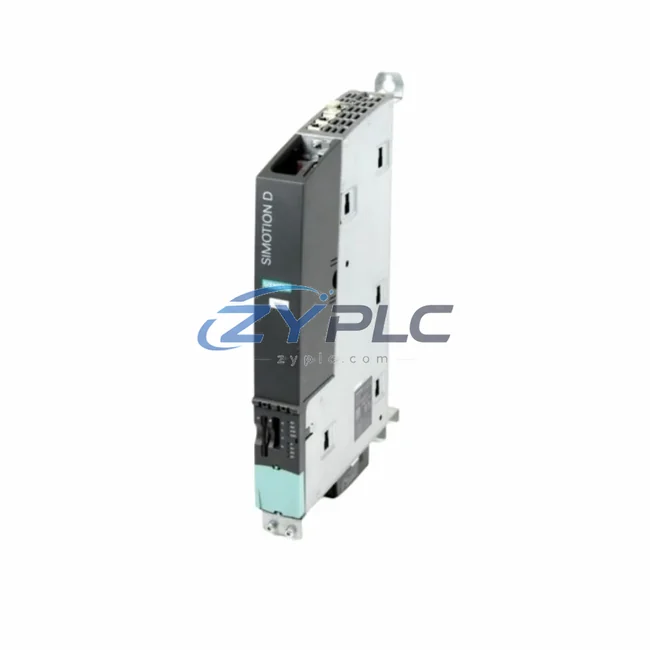

Siemens 6AU1425-0AA00-0AA0 Control Unit

Siemens 6AU1425-0AA00-0AA0 Control Unit for SIMOTION D425 Automation

The Siemens 6AU1425-0AA00-0AA0 is a high-performance SIMOTION D425 Control Unit engineered for precision motion control and energy-efficient drive management in demanding industrial environments. Designed to integrate seamlessly within Siemens’ SINAMICS drive ecosystem, this control unit delivers real-time closed-loop regulation of servo axes, spindle drives, and multi-axis coordinated motion — enabling factories to maximize equipment utilization while minimizing unnecessary energy consumption across the production line.

Unlike conventional motion controllers that operate at fixed cycle rates regardless of load demand, the SIMOTION D425 platform dynamically adjusts servo interpolation cycles and drive setpoints in response to actual production throughput requirements. This adaptive control strategy directly reduces reactive power losses, lowers heat generation in drive cabinets, and extends the operational lifespan of connected SINAMICS S120 drive modules and motor components.

Product Specification Table

System Compatibility and Application

The 6AU1425-0AA00-0AA0 sits at the heart of a tightly integrated industrial automation system. Its onboard DRIVE-CLiQ interface establishes a high-speed digital backbone connecting directly to SINAMICS S120 Motor Modules, enabling the control unit to receive real-time feedback on motor current draw, torque utilization, and thermal load — all without the signal degradation associated with analog encoder wiring.

In a typical high-throughput packaging line, the SIMOTION D425 coordinates motion profiles across multiple servo axes simultaneously. When paired with a SINAMICS S120 Control Unit CU320-2 DP, the system can implement energy recovery during deceleration phases — feeding regenerative braking energy back into the DC bus and redistributing it to other active axes rather than dissipating it as heat through braking resistors. This alone can reduce net energy consumption per production cycle by a measurable margin in high-inertia applications.

For process monitoring and energy visibility, the 6AU1425-0AA00-0AA0 integrates with SIMATIC S7-1500 PLC controllers via PROFINET IO, allowing plant engineers to correlate motion controller data with upstream process variables captured by SIMATIC ET 200SP distributed I/O modules. This cross-system data flow enables granular energy accounting at the machine level — identifying which axes, motion phases, or production recipes consume disproportionate power relative to output.

On the HMI side, SIMATIC TP1200 Comfort Panel or SIMATIC HMI KTP900 Basic terminals can be configured to display live energy consumption dashboards, axis utilization heat maps, and drive fault histories — giving operators immediate visibility into efficiency deviations without requiring engineering-level access to the SIMOTION Scout development environment. When an axis consistently draws above its nominal current envelope, operators can flag the condition for predictive maintenance before it escalates into unplanned downtime.

The control unit also supports PROFIBUS DP communication for legacy plant integration, allowing the SIMOTION D425 to coexist with older SIMATIC S7-300 or S7-400 controllers in brownfield installations. This backward compatibility is critical for phased energy modernization projects where replacing the entire control architecture in a single shutdown is not operationally feasible.

For power quality monitoring at the cabinet level, the 6AU1425-0AA00-0AA0 deployment is typically complemented by SENTRON PAC3200 power monitoring devices installed at the incoming feeder. These devices capture harmonic distortion, power factor, and peak demand data — providing the energy baseline against which drive-level optimizations can be measured and validated over time.

Maintenance and Replacement Notes

In real-world production environments, the energy impact of the Siemens 6AU1425-0AA00-0AA0 is most pronounced in applications characterized by frequent acceleration-deceleration cycles, variable load profiles, and multi-axis coordinated motion. Consider a rotary die-cutting machine in a flexible packaging plant: without intelligent motion control, each axis accelerates to full speed regardless of whether the upstream web tension is within tolerance. The SIMOTION D425 platform enables cam-synchronized motion profiles that match axis velocity precisely to material feed rate — eliminating over-speed conditions that waste energy and cause premature tooling wear.

In textile machinery applications, the 6AU1425-0AA00-0AA0 manages warp beam let-off and cloth take-up axes with sub-millisecond synchronization accuracy. By maintaining precise tension ratios between axes, the system prevents the micro-slippage events that force operators to run drives at higher torque margins than technically necessary — a common source of hidden unplanned downtime in weaving and knitting operations.

For CNC machining centers, the SIMOTION D425 control unit enables look-ahead interpolation across linear and rotary axes, smoothing velocity transitions at corner points in complex toolpaths. This reduces the peak current spikes that occur when drives must rapidly reverse direction, lowering both instantaneous power demand and mechanical stress on ball screws and linear guides. The result is a measurable reduction in spindle drive energy consumption per part, alongside extended maintenance intervals for mechanical components.

From a maintenance cost perspective, the 6AU1425-0AA00-0AA0 supports SIMOTION Scout diagnostic tools that log axis following errors, drive alarm histories, and encoder signal quality trends over time. When following error margins begin to drift — a leading indicator of mechanical wear or drive parameter drift — maintenance teams can schedule corrective action during planned downtime rather than responding reactively to production stoppages. This shift from reactive to predictive maintenance directly reduces the energy and material cost of emergency repairs and scrap production associated with out-of-tolerance machine behavior.

Every unit of the 6AU1425-0AA00-0AA0 supplied by ZYPLC undergoes full functional testing prior to shipment, including DRIVE-CLiQ communication verification, axis interpolation cycle validation, and I/O channel integrity checks. Stock availability is maintained to support rapid deployment in both new machine builds and replacement scenarios, with a warranty terms confirmed during quotation covering all verified units.

Product Sourcing FAQ

Q1: How does the 6AU1425-0AA00-0AA0 contribute to measurable operational stability on a production line?
The SIMOTION D425 control unit enables load-adaptive servo control, cam-synchronized motion profiles, and regenerative energy redistribution across the DC bus when paired with SINAMICS S120 drive modules. These capabilities reduce idle-state drive losses, eliminate over-speed conditions, and recover braking energy that would otherwise be dissipated as heat — resulting in lower net energy consumption per production cycle in high-inertia, multi-axis applications.

Q2: Is the 6AU1425-0AA00-0AA0 compatible with existing SINAMICS and SIMATIC infrastructure?
Yes. The unit integrates natively with SINAMICS S120, SINAMICS G120, and SINAMICS G130 drive systems via DRIVE-CLiQ, and communicates with SIMATIC S7-1500, S7-300, and S7-400 controllers via PROFINET IO and PROFIBUS DP. It is also compatible with SIMATIC ET 200SP distributed I/O and SIMATIC HMI panels for system-wide condition monitoring and operator visibility.

Q3: What is the recommended replacement or upgrade path for older SIMOTION D4x5 units?
The 6AU1425-0AA00-0AA0 is a direct form-fit-function replacement within the SIMOTION D425 product family. For installations running earlier D4x5 firmware versions, a SIMOTION Scout project migration is recommended prior to hardware swap to ensure motion program compatibility. ZYPLC can advise on firmware version alignment and spare parts availability for adjacent components in the drive train.

Q4: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
All 6AU1425-0AA00-0AA0 units supplied by ZYPLC are tested for DRIVE-CLiQ communication integrity, axis interpolation cycle accuracy, digital and analog I/O channel functionality, and power supply input range compliance before dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal industrial operating conditions, with direct support available via +86 19859288691 or plc.sales@zyplc.com.
